Hands-on Activity: Witnessing Evaporation

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Drawing of a landscape shows wavy lines rising up from plants, trees and an irrigated garden, to form clouds in the sky.
Evaporation and transpiration create clouds, as part of the Earth's water cycle.
copyright
Copyright © Agency for Toxic Substances & Disease Registry, Centers for Disease Control and Prevention, US Department of Health and Human Services http://www.atsdr.cdc.gov/sites/vieques/groundwater.html

Summary

The engineers at Splash Engineering (the students) have been commissioned by Thirsty County to conduct a study of evaporation and transpiration in their region. During one week, students observe and measure (by weight) the ongoing evaporation of water in pans set up with different variables, and then assess what factors may affect evaporation. Variables include adding to the water an amount of soil and an amount of soil with growing plants.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers consider evaporation in the design and operation of dams, and it is an important factor in the site selection and operation of dams because of its potential to cause substantial water loss, especially in hot and arid environments. Typically, engineers and hydrologists use computer models and spreadsheets to estimate a reservoir's water "budget," taking into account the effects of evaporation on its storage. The information from an evaporation study provides the water budget with more accurate regional estimates of expected water loss due to evaporation and transpiration.

Learning Objectives

After this activity, students should be able to:

  • Define evaporation and transpiration.
  • Describe how soil helps retain water to be available for plants.
  • Recongize that evaporation is an important consideration in the design and operation of dams

More Curriculum Like This

Where Has All the Water Gone?

Students learn about the Earth's water cycle, especially about evaporation.

Middle School Lesson
Natural and Urban "Stormwater" Water Cycles

Students examine in detail the water cycle components and phase transitions, and then learn how water moves through the human-made urban environment. Students show their understanding of the process by writing a description of the path of a water droplet through the urban water cycle, from the dropl...

Water, Water Everywhere

Students learn about floods, discovering that different types of floods occur from different water sources, but primarily from heavy rainfall. Students learn what makes floods dangerous and what engineers design to predict, control and survive floods.

Elementary Lesson
Watershed Balance

Students learn about the water cycle and its key components. They learn how we can use the theory of conservation of mass to estimate the amount of water that enters a watershed (precipitation, groundwater flowing in) and exits a watershed (evaporation, runoff, groundwater out).

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop a model to describe the cycling of water through Earth's systems driven by energy from the sun and the force of gravity. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve real-world and mathematical problems by graphing points in all four quadrants of the coordinate plane. Include use of coordinates and absolute value to find distances between points with the same first coordinate or the same second coordinate. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use variables to represent two quantities in a real-world problem that change in relationship to one another; write an equation to express one quantity, thought of as the dependent variable, in terms of the other quantity, thought of as the independent variable. Analyze the relationship between the dependent and independent variables using graphs and tables, and relate these to the equation. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Gather and analyze data from a variety of print resources and investigations to account for local and world-wide water circulation and distribution patterns (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
  • Research and evaluate data and information to learn about the types and availability of various natural resources, and use this knowledge to make evidence-based decisions (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each student needs:

For the entire class to share:

  • 3 identical cake pans or plastic containers
  • 3 platform scales
  • soil or dirt to fill pan one-third full
  • soil or dirt with shallow-rooted plants (such as a chunk of sod or weeds dug from a field), enough to fill pan one-third full
  • masking tape and marker (to label pans)

Introduction/Motivation

Everyone in this room has seen precipitation. (Write "precipitation" on the board.) What do rain and snow have in common? Rain and snow are both examples of precipitation, of water forming into liquid or solid form and falling from the sky to the ground.

The water cycle includes another process, called "evaporation," that is just as important as precipitation. (Write "evaporation" on the board.) Who can tell me what evaporation is? (Take suggestions from students.) Evaporation is the process when liquid water converts into water vapor and rises into the air.

Diagram shows circular relationship between precipitation and evaporation/transpiration using arrows and snow/rain coming from a cloud.
copyright
Copyright © Denise W. Carlson, ITL Program, College of Engineering, University of Colorado at Boulder.

Has any one heard of transpiration? (Write "transpiration" on the board.) Transpiration occurs when plants "breathe" and is similar to evaporation because a change from liquid water to water vapor occurs. Plants draw water from the ground through their roots and keep it inside their plant bodies. When the plants open their stomata (tiny holes in the leaves) to take in carbon dioxide for photosynthesis, some of the water stored within the plant escapes as water vapor and travels up into the atmosphere. This water vapor that escapes from the plant is similar to the water vapor you see when you exhale on a cold day. That little puff of "smoke" you see is really a tiny water vapor cloud.

For plants, precipitation is the water supply, and evaporation and transpiration are the water demand. When the demand exceeds the supply, plants dry up, die or go dormant. Has anyone seen a plant in your house or yard die because it did not get enough water? That was a case when the plant's demand for water exceeded its supply.

On farms, including the farms in Thirsty County, crops shrivel and die when evaporation and transpiration together are greater than precipitation. We call this condition a "drought." How do droughts affect the farmers in Thirsty County? How do they affect the other people in the county?

As the engineering firm of Splash Engineering, this class has been hired by Thirsty County to conduct a study of the region's evaporation and transpiration. To do this, we are going to conduct an experiment all week that will tell us how much water evaporates from a given area each day. We will test areas with and without soil and plants. After we finish the test and look at the results, Splash Engineering will be able to make a report to Thirsty County. The firm will also be able to explain why it's important for the engineering designers of the county's dams to know how much water evaporates in the area.

Vocabulary/Definitions

engineer: A person who applies her/his understanding of science and math to creating things for the benefit of humanity and our world.

evaporation: The process whereby liquid water is converted to water vapor.

hydrologic cycle: A continuous process by which water is evaporated and transported from the Earth's surface (including the oceans) to the atmosphere and back to the land and oceans. Also called the water cycle.

transpiration: The passage of watery vapor from a plant to the atmosphere through the plant's pores.

Procedure

Before the Activity

  • Gather materials and make copies of the Witnessing Evaporation Worksheet.
  • Use a marker and masking tape to label the pans "A," "B" and "C."

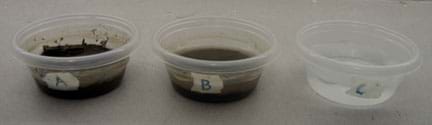

    Photo shows three plastic containers labeled A, B, C. A contains soil, small plants and water, B contains soil and water, and C contains only water.
