Hands-on Activity Super Spinners!

Quick Look

Grade Level: 8 (7-8)

Time Required: 45 minutes

Expendable Cost/Group: US $1.00

Group Size: 2

Activity Dependency: None

Associated Informal Learning Activity: Super Spinners

Subject Areas: Physical Science, Physics

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
MS-ETS1-4
MS-PS2-2

Summary

Students are challenged to design and build spinners that spin the longest. They build at least two simple spinners to conduct experiments with different mass distributions and shapes. Use this hands-on activity to demonstrate rotational inertia, rotational speed, angular momentum, and velocity.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Two drawings show the activity's spinners made with round cardboard shapes slid onto pencils spinning on their points. On the left spinner, six pennies are placed at the outer edge of the round cutout; on the right spinner, six pennies are placed on the inside of the round cutout, close to the pencil's axis of rotation.
A super spinner demonstrating rotational inertia.
copyright
Copyright © 1999 Jill Frankel Hauser. Gizmos and Gadgets: Creating Science Contraptions that Work (and Knowing Why). Charlotte, VT: Williamson Publishing.

Engineering Connection

Engineers understand the concepts associated with circular motion and angular momentum as they design equipment, systems and products with spinning components. Aerospace engineers design satellites to spin as they orbit around the Earth so that they do not tumble out of control. Automotive engineers design car parts to spin in specific ways so that they do not come apart at high speeds. Mechanical engineers design generators, washers, dryers, fans and other machines so that they are balanced as they spin. Even a forward pass in football is more effective and stable with the right spin.

Learning Objectives

After this activity, students should be able to:

  • Explain how mass and radius relate to angular momentum.
  • Describe the law of conservation of angular momentum.
  • Collect, analyze and interpret data on the rotational speed of an object and correlate the speed to variations in the geometry of the object
  • Explain how engineers apply the concepts associated with circular motion and angular momentum to design equipment, systems, and products with spinning components.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

MS-ETS1-4. Develop a model to generate data for iterative testing and modification of a proposed object, tool, or process such that an optimal design can be achieved. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Develop a model to generate data to test ideas about designed systems, including those representing inputs and outputs.

Alignment agreement:

Models of all kinds are important for testing solutions.

Alignment agreement:

The iterative process of testing the most promising solutions and modifying what is proposed on the basis of the test results leads to greater refinement and ultimately to an optimal solution.

Alignment agreement:

Models can be used to represent systems and their interactions.

Alignment agreement:

NGSS Performance Expectation

MS-PS2-2. Plan an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Alignment agreement:

Analyze and interpret data to provide evidence for phenomena.

Alignment agreement:

Construct a scientific explanation based on valid and reliable evidence obtained from sources (including the students' own experiments) and the assumption that theories and laws that describe the natural world operate today as they did in the past and will continue to do so in the future.

Alignment agreement:

The motion of an object is determined by the sum of the forces acting on it; if the total force on the object is not zero, its motion will change. The greater the mass of the object, the greater the force needed to achieve the same change in motion. For any given object, a larger force causes a larger change in motion.

Alignment agreement:

All positions of objects and the directions of forces and motions must be described in an arbitrarily chosen reference frame and arbitrarily chosen units of size. In order to share information with other people, these choices must also be shared.

Alignment agreement:

  • Some technological problems are best solved through experimentation. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Fluently add, subtract, multiply, and divide multidigit decimals using standard algorithms for each operation. (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Fluently divide multi-digit numbers using standard algorithms. (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Solve linear equations in one variable. (Grade 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Use mathematical expressions to describe the movement of an object (Grade 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:

  • a flat round object, such as a jar lid, compact disk or paper plate
  • 2 pencils (or, alternatively, thumbtacks or pushpins)
  • tape
  • 2 rubber bands
  • cereal box-weight cardboard
  • 6 pennies
  • scissors
  • markers
  • The Spin on Things Worksheet, one per person

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/cub_mechanics_lesson08_activity1] to print or download.

Introduction/Motivation

Aerospace engineers design satellites to spin as they fly above the Earth so that they do not tumble out of control. Automotive engineers design car parts to spin in very certain ways so that they do not come apart. Mechanical engineers design generators and other machines so that they are balanced as they spin. Even children on playgrounds who play on swings and spinning merry-go-rounds for fun care a lot about how things spin!

With today's activity and worksheet, you will explore how things spin. What makes some things spin a long time, and other things fall over right away? What is the best shape for a spinner? How do spinners work? We will find the answers to these questions and more!

Procedure

Before the Activity

  • Gather materials and make copies of The Spin on Things Worksheet.
  • Have students bring in from home some circular objects such as jar lids and old CDs, pennies, and cardboard cereal boxes or paper plates.

With the Students

  1. Discussion: Ask students if any of them has ever built a spinner. If necessary, explain what a spinner is. With what did they make the spinner? (Examples: A football, a penny, etc.) How do their spinners work? Explain that in this activity students will learn more about how spinners work as they design and build their own spinners.
  2. Draw three circles on cardboard by tracing around a circular object. Cut them out.
  3. Poke a pencil through the middle of one of the cardboard circles. Hold it firmly in place by winding rubber bands around the pencil above and below the cardboard.

A side view drawing showing how to attach the cardboard cutout to the pencil by winding rubber bands above and below the spot on the pencil where you want the disk to stay.
Secure the cardboard shape on the pencil (axis of rotation) by placing wound rubber bands on the pencil above and below where you want it.
copyright
Copyright © 1999 Jill Frankel Hauser. Gizmos and Gadgets: Creating Science Contraptions that Work (and Knowing Why). Charlotte, VT: Williamson Publishing.

  1. With a marker, draw a thick, dark line at any point on the cardboard spinner top. Have the students spin the spinner. Count the number of rotations the spinner makes within 10 seconds. Write this number down. (The line must be very dark to be able to read it while the shape is spinning.)
  2. Poke the pencil through another disk at a point away from its center. Describe the motion.
  3. Give your spinner a long handle and a short tip by pushing just a little of the pencil through the hole. How well does the spinner spin?
  4. Now push most of the pencil through the cardboard circle to make a long-tipped spinner with a short handle. Does the spin change?
  5. Now tape six pennies on to the outer rim of one spinner, and six pennies close to the center of another spinner (both spinners should have the pencil at the center of the circle).
  6. Repeat Step 4 with both of these spinners.

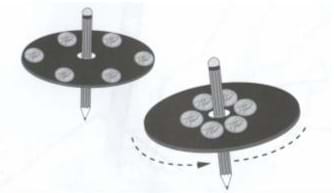

Two drawings show the activity's spinners made with round cardboard shapes attached to pencils spinning on their points. On the left spinner, six pennies are placed at the outer edge of the round cutout; on the right spinner, six pennies are placed on the inside of the round cutout, close to the pencil axis of rotation.
Different weight distributions. Which one will spin best?
copyright
Copyright © 1999 Jill Frankel Hauser. Gizmos and Gadgets: Creating Science Contraptions that Work (and Knowing Why). Charlotte, VT: Williamson Publishing.

  1. Cut a square or triangle shape from cardboard. Poke a pencil through the center and give it a whirl. Which top stays spinning the longest? Repeat Step 4 with this spinner.
  2. Have student groups fill out the worksheet and check their answers with another student group.
  3. Review the worksheets with the entire class.

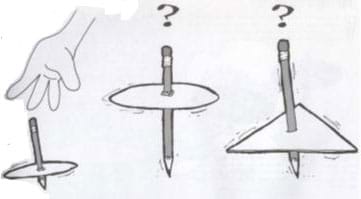

This sketch shows two versions of this activity's spinners made with round cardboard shapes attached to pencils spinning on their points. On the far left, a hand spins a spinner. The middle spinner is a version with a round cardboard shape with a question mark drawn above it. The right spinner is a triangle shape, with a question mark drawn above it.
Different spinner shapes. Which one will spin best?
copyright
Copyright © 1999 Jill Frankel Hauser. Gizmos and Gadgets: Creating Science Contraptions that Work (and Knowing Why). Charlotte, VT: Williamson Publishing.

Assessment

Pre-Activity Assessment

Discussion Questions: Ask the students and discus as a class:

  • Has anyone has ever built a spinner? If necessary, explain what a spinner. With what did they make  spinners? (Examples: A football, a penny, etc.) How do their spinners work? Explain that in this activity, students will learn more about how spinners work as they make and test their own spinner designs.

Activity Embedded Assessment

Worksheet: Have students use the activity worksheet to help them complete the activity. Review their answers to gauge their mastery of the subject.

Pairs Check: As student groups finish their worksheets, have them check their answers with another team, giving all groups time to finish the worksheet.

Post-Activity Assessment

Class Presentation: Have the groups present their best spinner designs to the rest of the class and discuss why they worked best, in terms of the rotation concepts.

Safety Issues

Sharp pencil points and thumbtacks present a hazard.

Troubleshooting Tips

If the pencils are too unstable, thumbtacks or pushpins may serve as a better axis for the spinners to rotate about.

Sometimes the spinner is hard to keep balanced. It may take the students several tries before they can balance the spinner and count the line as it passes.

Keys to spinner design (Hauser, 1999):

  • A disk shape evenly distributes the mass about the center. That is also why poking the pencil through the center works best.
  • A long handle and a short tip. The top is more stable when it has a low center of gravity.
  • Weight evenly distributed at the outer edge gives the top more spinning inertia.
  • The harder you twist when you start the spinner, the longer the spin.

Activity Extensions

Have students devise their own spinning creations at home, using lids, plates, cardboard and other household materials. Have them report back to the class what designs worked best. Have them demonstrate using their homemade spinners.

Hold a contest to see which spinner can spin the longest. Ask the team with that spinner to explain why their spinner lasts the longest.
