Hands-on Activity: Rocket Power

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Photo shows hands holding an inflated balloon taped to a drinking straw that hangs from a taut string attached to the back of a chair.
Students make their own balloon rockets
copyright
Copyright © Malinda Schaefer Zarske, ITL Program, College of Engineering, University of Colorado at Boulder, 2004.

Summary

By making and testing simple balloon rockets, students acquire a basic understanding of Newton's third law of motion as it applies to rockets. Using balloons, string, straws and tape, they see how rockets are propelled by expelling gases, and test their rockets in horizontal and incline conditions. They also learn about the many types of engineers who design rockets and spacecraft.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers make it possible for humans to leave our planet and explore space. Every discipline of engineering works together to further space exploration. Mechanical engineers design spacecraft components; aerospace engineers design the craft; electrical and computer engineers design the computer and electrical systems; materials engineers design heat shielding materials and spacesuits; chemical engineers design the rocket fuel; etc. Engineers use their combined knowledge of physics, materials, electronics, mathematics, structures and biology to get humans into outer space.

Learning Objectives

After this activity, students should be able to:

  • Explain Newton's third law of motion using words or pictures.
  • Explain why a rocket must work harder to move up as opposed to across.
  • List at least two different types of engineers and how they make rockets possible.

More Curriculum Like This

Newton Gets Me Moving

Students explore motion, rockets and rocket motion while assisting Spacewoman Tess, Spaceman Rohan and Maya in their explorations. First they learn some basic facts about vehicles, rockets and why we use them. Then, they discover that the motion of all objects—including the flight of a rocket and mo...

Elementary Lesson
May the Force Be with You: Thrust

Students study how propellers and jet turbines generate thrust. This lesson focuses on Isaac Newton's third law of motion for every action there is an equal and opposite reaction.

Destination Outer Space

Students acquire a basic understanding of the science and engineering of space travel as well as a brief history of space exploration. They learn about the scientists and engineers who made space travel possible and briefly examine some famous space missions.

Elementary Lesson
Get Me Off This Planet

The purpose of this lesson is to teach students how a spacecraft gets from the surface of the Earth to Mars. Students first investigate rockets and how they are able to get us into space. Finally, the nature of an orbit is discussed as well as how orbits enable us to get from planet to planet — spec...

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Plan and conduct an investigation to provide evidence of the effects of balanced and unbalanced forces on the motion of an object. (Grade 3) Details... View more aligned curriculum... Do you agree with this alignment?
  • Define a simple design problem reflecting a need or a want that includes specified criteria for success and constraints on materials, time, or cost. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Apply Newton's Third Law to design a solution to a problem involving the motion of two colliding objects. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Know relative sizes of measurement units within one system of units including km, m, cm; kg, g; lb, oz.; l, ml; hr, min, sec. Within a single system of measurement, express measurements in a larger unit in terms of a smaller unit. Record measurement equivalents in a two column table. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use the four operations to solve word problems involving distances, intervals of time, liquid volumes, masses of objects, and money, including problems involving simple fractions or decimals, and problems that require expressing measurements given in a larger unit in terms of a smaller unit. Represent measurement quantities using diagrams such as number line diagrams that feature a measurement scale. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • A subsystem is a system that operates as a part of another system. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • A transportation system may lose efficiency or fail if one part is missing or malfunctioning or if a subsystem is not working. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

  • 1 balloon (long shape works best)
  • 1 plastic drinking straw (cut in half)
  • 1 paperclip
  • Masking tape
  • Measuring tape (or a yard- or meter-stick)
  • Rocket Flight Worksheet, one per person

For the entire class to share:

  • Scissors
  • Several pieces of fishing line (or fine, smooth string), cut into 30-foot (9-meter) lengths
  • Duct tape

Introduction/Motivation

How does a rocket fly? Can it fly in space and in Earth's atmosphere? What comes out of the back of a rocket? Rockets fly because of Newton's third law of motion. Newton's third law states that for every action there is an equal and opposite reaction. For example: if you are standing on a skateboard and you push against a wall, what happens? The answer is that you and the skateboard would move in the opposite direction. Here the action is pushing against the wall, while the equal and opposite reaction is the movement in the opposite direction.

Let's say you're in outer space wearing a spacesuit and holding a bowling ball. What do you think would happen if you threw the bowling ball? Would anything happen to you? Think about Newton's third law of motion. What might it tell us about what would happen? The answer is that you would move away from the bowling ball in the opposite direction. In this case, throwing the bowling ball is the action and you moving in the opposite direction is the equal and opposite reaction. This is similar to how a rocket flies, but instead of throwing bowling balls, a rocket pushes lots of gas in one direction, causing the rocket to move in the opposite direction.

So, how does a rocket push this gas? Rockets combust (burn) fuels such as liquid hydrogen. The combustion process causes the fuel to get incredibly hot and expand (just like an explosion). This combustion happens inside the rocket, but the hot gas does not fit very well in the rocket and it creates a lot of pressure. Pressure is when something is pushing very hard on something else. In our case, the gas is pushing very hard on the inside of the rocket. Even though a rocket is very strong, too much pressure will cause it to explode. Since we want our rocket to move and not to explode, we let the gas escape. We put a hole in the bottom of the rocket and use a device called a nozzle to direct the gas behind us. This escaping gas is known as exhaust and it is the action in our rocket. The equal and opposite reaction is our rocket moving in the opposite direction. How much power the rocket provides is called thrust.

Do you think it is easier for the rocket to move straight up (away from Earth) or straight across the surface of the Earth? Why might it be harder to move straight up? Gravity is what makes it harder to move up. Gravity pulls objects down toward the center of the Earth. If we want our rocket to reach space, it has to move up and away from the Earth. This means that rockets have to be extremely powerful to overcome gravity. Has anyone ever seen a rocket on television, in a photograph, or in real life? Do you know what makes up most of a rocket? Do you think its suitcases or cargo or scientific equipment or crew quarters for the astronauts? In reality, it is none of these. Amazingly, most of a rocket is fuel. It takes so much work (energy) to get to outer space that most of a rocket is fuel.

So, who is responsible for designing and building rockets? The answer is engineers. Rockets are complicated and usually very large objects. It takes many different types of engineers to get a rocket to work. Mechanical engineers create the structure of the rocket and make sure it all holds together. Electrical and computer engineers make sure that all the electrical and computer systems on the rocket function. Chemical engineers design the fuels and make sure the rocket gets all the power it needs. Materials engineers design heat shielding material for the outside of the rocket, as well as the astronauts' spacesuits. Aerospace engineers make sure the rocket is shaped in the best way to cut through the atmosphere and they also make sure all the systems work together.

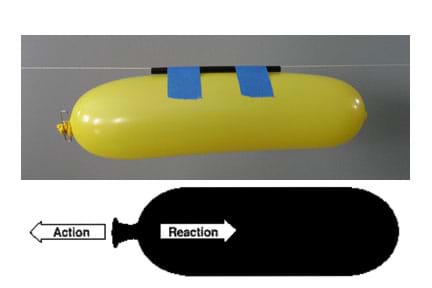

A photo shows an inflated long balloon, placed above a sketch of a balloon showing air escaping from the opening, labeled as the action, with the forward movement of the balloon as the reaction.
Figure 1. Using a balloon to demonstrate action and reaction.
copyright
Copyright © Balloon photo: Copyright © Denise W. Carlson, ITL Program, College of Engineering, University of Colorado at Boulder, 2007. Balloon diagram: Copyright © NASA, http://quest.nasa.gov/space/teachers/liftoff/basics.html.

Do all rockets require combustion? The only rockets that can make it into space right now require combustion, but some simple rockets do not require combustion. Have you ever blown up a balloon and then let it go without tying it shut? What happens? The balloon acts like a rocket. In fact a balloon is very similar to a real rocket. When you inflate a balloon you are forcing air into a small space. This creates pressure just like a space rocket creates pressure by burning fuel. Just like a rocket, a balloon lets the high pressure escape out a hole in the back. The gas escaping out of the back of the balloon is the action and the balloon moving in the opposite direction is the equal and opposite reaction (see Figure 1). Today, we are going to make balloon rockets and observe Newton's third law of motion in action. We will also see that overcoming gravity is more difficult than flying horizontally.

Vocabulary/Definitions

Combustion: The process of burning.

Engineer: A person who applies his/her understanding of science and math to creating things for the benefit of humanity and our world.

Gas: Tiny particles with enough energy to remain isolated and free floating (as opposed to liquids and solids in which particles group together).

Newton's third law of motion: For every action there is an equal and opposite reaction. (This is why rockets work!)

Pressure: The exertion of force upon a surface by an object, fluid, gas (etc.), in contact with it. Force per area. Measured in units of pounds per square inch (psi) or newtons per square meter (N/m^2) or pascals (Pa). Pressure results from collisions of gas molecules with a surface

Rocket: A vehicle that moves by ejecting fuel.

Thrust: The forward-directed force on a rocket in reaction to the ejection of fuel.

Procedure

Before the Activity

  • Gather materials and make copies of the Rocket Flight Worksheet.
  • Set up several rocket courses. Move desks, chairs and tables to create a clear area in the classroom. Tie (or attach using duct tape) each piece of fishing line or string to a classroom wall about one meter above the floor. Space apart the lines evenly, about a meter apart.

With the Students

  1. Divide the class into teams of two students each. Pass out supplies and worksheets.
  2. Have students cut the straw in half, making two shorter straws to share with other teams.
  3. Place an equal number of teams at each rocket course. The teams take turns using the course.
  4. Have one student from each team inflate the balloon. Twist the open end of the balloon and secure it closed temporarily using a paperclip.
  5. Next, have the other teammate tape the straw to the balloon so that it is in the center of the balloon with one end facing the balloon top and the other end facing the balloon opening (nozzle). See Figure 1.

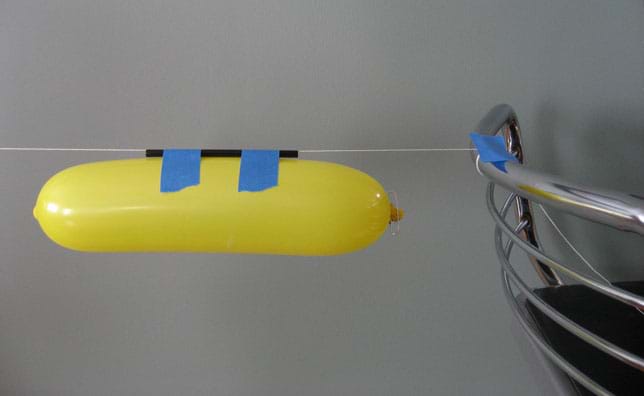

Photo shows an inflated long balloon taped to a drinking straw that hangs from a taut string attached to the back of a chair.
Figure 2. A balloon rocket ready for launch.
copyright
Copyright © Copyright © Denise W. Carlson, ITL Program, College of Engineering, University of Colorado at Boulder, 2007.

  1. Next, have students thread the string at the unattached end of the course through the straw so that the twisted end of the balloon faces away from the end of the line that is attached to the wall (see Figure 2).
  2. Instruct one team member to hold the end of the line so that it is taut and level. The other team member makes sure the balloon hangs below the line.
  3. With the class counting aloud down from 10, have students release the twisted ends of the balloons at zero.
  4. Give the students a minute to determine how far their rocket flew by measuring how far it went on the fishing line.
  5. Record the distance traveled on the worksheets.
  6. Have the teams take turns using the course until each team has launched their rocket three times, and recorded the distances traveled on their worksheets.

Photo shows a person positioning an inflated balloon to be released along a taught string attached to the back of a chair.
copyright
Copyright © Copyright © Malinda Schaefer Zarske, ITL Program, College of Engineering, University of Colorado at Boulder, 2004.

  1. Detach the lines from the far end of each rocket course (from the wall or a chair), and move them up higher, so that each is between 6 and 10 feet (2 or 3 meters) above the floor (as high as you can reach).
  2. Next, with the lines positioned at an incline and taut, have each group launch their rocket three more times and record the length traveled on their worksheets. Have the students hold the line at the starting end near the ground so the balloons must travel up equal inclines.
  3. Have students finish their rocket trials and complete their worksheets.
  4. Conclude by holding a class discussion, comparing results, and conducting the post-activity assessment activities described in the Assessment section. See if students understand Newton's third law of motion. Talk about test results in both horizontal and incline conditions and how the expelled air created thrust.

Attachments

Safety Issues

  • Advise students not to over-inflate their balloons.

Troubleshooting Tips

While balloon rockets work with any type of thin string, they work best with smooth and/or fine line because friction is minimized.

Make sure the straw piece is taped to be parallel with the nozzle and direction of the ejected air.

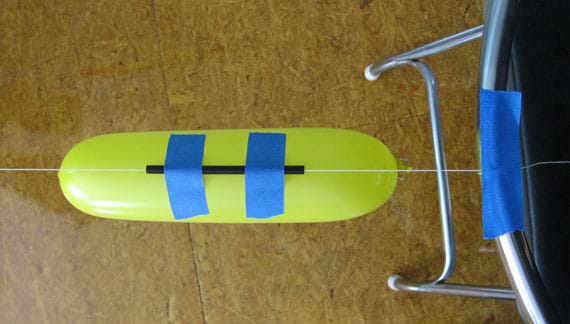

Photo shows view from above of an inflated long balloon taped to a drinking straw that hangs from a taut string attached to the back of a chair.
copyright
Copyright © Copyright © Denise W. Carlson, ITL Program, College of Engineering, University of Colorado at Boulder, 2007.

Lay down ground rules so that students do not disturb the rocket courses of the other teams.

Alternate set-up for repeated trials: Since it is sometimes hard to blow up a balloon again after a straw has been taped to it, you can save on balloons and time by taping a plastic bag (with the open end positioned away from the rocket direction) to the straw and string, and then inserting a blown-up balloon into the bag for each rocket trial. Point out that inserting the blown-up balloon into the plastic bag is like placing the fuel into the rocket structure, but the "nose cone" is not as efficient as a balloon would be.

Assessment

Pre-Activity Assessment

Question/Answer: Ask the students and discuss as a class:

  • How does a rocket fly? (Answer: It expels exhaust in one direction and moves in the other.)
  • Is it harder for a rocket to fly straight up or horizontally? (Answer: It is harder to fly up because it must overcome gravity.)
  • Who designs rockets? (Answer: Engineers.)
  • Which types of engineer? (Answer: Aerospace, mechanical, electrical, computer, materials, chemical, software, systems; it takes many types of engineers, working together, to design a rocket or spacecraft.)

Activity Embedded Assessment

Worksheet: Have students complete the activity using the Rocket Flight Worksheet. Review their answers to gauge their mastery of the subject.

Post-Activity Assessment

Drawing: Have students design and draw their own space rockets. Have them use arrows to label the action and reaction of Newton's third law of motion.

Engineering Redesign: Ask students how they might improve the design of their balloon rocket. Then have them sketch or test their ideas.

Activity Extensions

Have students brainstorm how they might get their balloon rockets to fly further. Give them extra supplies such as more and different (shape, size) balloons, bigger straws, and paper cups (for creating nose cone shapes). Adding extra balloons is like adding more fuel. Have them design, create and test their new designs. Discuss how the new rockets performed compared to their original rockets. Have students hypothesize why some rockets performed better than others.

Using the distance travelled data from their worksheets, have students convert their distances from their specified unit of measure to other units. (i.e., convert from feet to meters). This allows students to get another representation of how far their balloon rockets travelled by using larger and smaller units. Have students compare these differences by making a two- column table with their measurement equivalents.

Activity Scaling

A diagram shows the circular flow from brainstorm to design to review and back to brainstorm.
copyright
Copyright © Copyright © Brett Ellison, ITL Program, College of Engineering, University of Colorado at Boulder, 2005.

  • For lower grades, conduct the activity as a teacher demonstration.
  • For upper grades, have students experiment with different balloon shapes (rockets) as well as the opening size (straw diameter).Ask students to come up with different prototypes and work through the engineering design process to see which combination of factors produce the best balloon rocket. Design process steps: brainstorm many different design ideas; select the best design; draw, create and test your design; review your design; improve your design based on what you learned.
  • For more advanced students, have them calculate (and graph) the average rocket distance traveled for their horizontal and incline data collected. Have them hypothesize what other factors contribute to the different distances achieved.
