Quick Look
Grade Level: 7 (78)
Time Required: 45 minutes
Expendable Cost/Group: US $5.00
The activity also uses two nonexpendable (reusable) LEGO MINDSTORMS NXT robot kits; see the Materials List for details. Alternatively, use stopwatches instead of the robots.
Group Size: 3
Activity Dependency: None
Subject Areas: Measurement, Physics
NGSS Performance Expectations:
MSPS22
Summary
Using the LEGO® MINDSTORMS® kit, students construct experiments to measure the time it takes a free falling body to travel a specified distance. Students use the touch sensor, rotational sensor, and the NXT brick to measure the time of flight for the falling object at different release heights. After the object is released from its holder and travels a specified distance, a touch sensor is triggered and time of object's descent from release to impact at touch sensor is recorded and displayed on the screen of the NXT. Students calculate the average velocity of the falling object from each point of release, and construct a graph of average velocity versus time. They also create a best fit line for the graph using spreadsheet software. Students use the slope of the best fit line to determine their experimental g value and compare this to the standard value of g.Engineering Connection
A fundamental understanding of the role of gravity is the foundation for many feats of engineering that we see in our everyday lives, such as bridges, buildings, airplanes and boats. This experiment is designed to show how similarly shaped objects, of different weights, have the same acceleration when in free fall. Engineers need a solid understanding of forces in order to predict future behavior of the structures or objects they design.
Learning Objectives
After this activity, students should be able to:
 Construct a plot of velocity vs. time.
 Propose explanations for the difference in the calculated and standard g.
 Perform basic programming using the LEGO MINDSTORMS NXT software.
 Plot data using spreadsheet software.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards  Science
NGSS Performance Expectation

MSPS22. Plan an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object. (Grades 6  8) Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices  Disciplinary Core Ideas  Crosscutting Concepts
Plan an investigation individually and collaboratively, and in the design: identify independent and dependent variables and controls, what tools are needed to do the gathering, how measurements will be recorded, and how many data are needed to support a claim. Alignment agreement: Science knowledge is based upon logical and conceptual connections between evidence and explanations.Alignment agreement:  The motion of an object is determined by the sum of the forces acting on it; if the total force on the object is not zero, its motion will change. The greater the mass of the object, the greater the force needed to achieve the same change in motion. For any given object, a larger force causes a larger change in motion. Alignment agreement: All positions of objects and the directions of forces and motions must be described in an arbitrarily chosen reference frame and arbitrarily chosen units of size. In order to share information with other people, these choices must also be shared.Alignment agreement:  Explanations of stability and change in natural or designed systems can be constructed by examining the changes over time and forces at different scales. Alignment agreement:
Common Core State Standards  Math

Use variables to represent quantities in a realworld or mathematical problem, and construct simple equations and inequalities to solve problems by reasoning about the quantities.
(Grade
7)
More Details
Do you agree with this alignment?

Construct and interpret scatter plots for bivariate measurement data to investigate patterns of association between two quantities. Describe patterns such as clustering, outliers, positive or negative association, linear association, and nonlinear association.
(Grade
8)
More Details
Do you agree with this alignment?

Understand that a function is a rule that assigns to each input exactly one output. The graph of a function is the set of ordered pairs consisting of an input and the corresponding output.
(Grade
8)
More Details
Do you agree with this alignment?

Construct a function to model a linear relationship between two quantities. Determine the rate of change and initial value of the function from a description of a relationship or from two (x, y) values, including reading these from a table or from a graph. Interpret the rate of change and initial value of a linear function in terms of the situation it models, and in terms of its graph or a table of values.
(Grade
8)
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Some technological problems are best solved through experimentation.
(Grades
6
8)
More Details
Do you agree with this alignment?

Use devices to control technological systems.
(Grades
6
8)
More Details
Do you agree with this alignment?
State Standards
New York  Science

Plan and conduct an investigation to provide evidence that the change in an object's motion depends on the sum of the forces on the object and the mass of the object.
(Grades
6
8)
More Details
Do you agree with this alignment?
Subscribe
Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!Materials List
Each group needs:
 LEGO MINDSTORMS NXT robot, such as the NXT Base Set (5003402) for $159.98 at https://shop.education.lego.com/legoed/enUS/catalog/product.jsp?productId=5003402& isSimpleSearch=false&ProductLine=NXT; two bricks are needed for this activity; alternatively, the activity may be done with stopwatches intead of the robots, as described in the Activity Extensions section)
 LEGO MINDSTORMS Education NXT Software 2.1, available as a single license (2000080) for $39.97 or a site license (5003413) for $271.96 at https://shop.education.lego.com/legoed/enUS/catalog/product.jsp?productId=prod120017&isSimpleSearch=false&ProductLine=LEGO+MINDSTORMS+Education+NXT
 computer, loaded with NXT 2.1 software
 23 balls of similar shape and different weights
 tape measure or meter stick
 Measuring g Activity Worksheet, one per student
Worksheets and Attachments
Visit [www.teachengineering.org/activities/view/nyu_measuring_activity1] to print or download.More Curriculum Like This
High school students learn how engineers mathematically design roller coaster paths using the approach that a curved path can be approximated by a sequence of many short inclines. They apply basic calculus and the workenergy theorem for nonconservative forces to quantify the friction along a curve...
The purpose of this lesson is to teach students how a spacecraft gets from the surface of the Earth to Mars. Students first investigate rockets and how they are able to get us into space. Finally, the nature of an orbit is discussed as well as how orbits enable us to get from planet to planet — spec...
Learn the basics of the analysis of forces engineers perform at the truss joints to calculate the strength of a truss bridge known as the “method of joints.” Find the tensions and compressions to solve systems of linear equations where the size depends on the number of elements and nodes in the trus...
In this activity, students examine how different balls react when colliding with different surfaces. They learn how to calculate momentum and understand the principle of conservation of momentum.
PreReq Knowledge
It is useful if the teacher has had experience programming with LEGO MINDSTORMS NXT robots. Students should have a basic understanding of graphing in Cartesian coordinates, the slopeintercept form of an equation for a line, and determining slope given an equation for a line.
Introduction/Motivation
What exactly is gravity? How does gravity affect us and objects around us? Gravity is commonly thought of as a universal force that holds matter together. It is actually a force of attraction between matter or objects. Any two objects have a gravitational force that tries to pull them closer together, and the greater the mass of the objects and the smaller the distance between the objects, the greater the gravitational force. We feel gravity as a force the Earth exerts on objects in its vicinity, because the Earth is the closest object to us with the greatest mass. On the surface of the Earth, gravity is the net force that is responsible for downward motion of free falling objects. It accelerates all objects at the same rate, that is, two objects of roughly the same size and shape, but different weights, when dropped from the same height, will hit the ground at the same time. To illustrate this, the experimental apparatus will be constructed using the LEGO MINDSTORMS NXT kit.
Newton's second law states that the net force on an object is equal to the mass of the object times its acceleration;
F = ma (1)
where m is mass and a is acceleration. For an object in free fall, equation 1 can be written as;
F = mg (2)
where m is mass and g is the acceleration due to gravity. Equating equations 1 and 2 shows that the acceleration of the object is due to force of gravity and is independent of mass;
F = ma = mg > a= g (3)

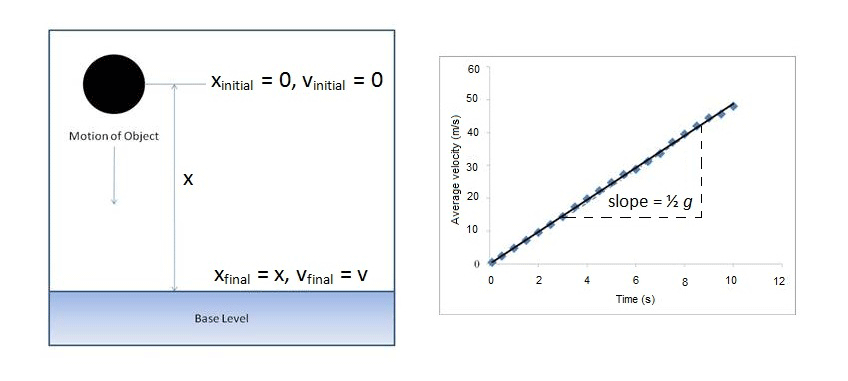

For a conservative system, the total amount of energy remains constant. In our setup, only forces in the vertical direction come into play (neglect air resistance). At the beginning of the experiment, the object is fixed at a specified distance above some base level (e.g. the ground). At the starting position, the object is considered to have potential energy or energy that can be turned into work (PE) but no kinetic energy or energy of motion (KE). As soon as the object is released, some of its PE is converted to KE, and the object begins to fall due to gravity. As freefall continues more of its PE is converted to KE and the velocity of the object increases. This change in the object's velocity as it falls is the acceleration due to gravity, g, which has a constant value of 9.8 m/s^{2}.
From experiments and calculus, the final velocity (v_{f}) and final position (x_{f}) of an object is given by
v_{f} = v_{0} + gt (4)
x_{f} = x_{0} + v_{0}t + ½ gt^{2} (5)
For this activity, we will be measuring the average velocity, such that:
v_{avg} = ½ (v_{f }+ v_{0}) (6)
where v_{f} and v_{o} are the final and initial velocities, respectively. Substitution of equation 6 into equation 5 yields:
v_{avg} = v_{0} + ½ gt (7)
Keep in mind the initial velocity v_{0} will be zero for each trial. This means that equation 7 can be reduced to:
v_{avg} = ½ gt (8)
Equation 8 will be very important in helping us calculate an experimental g value and comparing it to the standard g value.
Procedure
Before the Activity
 Download LEGO Digital Designer and load Measuring g – Building Instructions.
 Construct the experimental apparatus according to the attached building instructions.
 Establish a Bluetooth connection between the two NXTs. Load the attached LEGO MINDSTORMS NXT program. Download Measuring g – Controller onto the brick attached to the object holder. Download Measuring g – Receiver onto the brick attached to the touch sensor/platform. (Instructions on using and setting up a Bluetooth connection can be found on page 34 of the LEGO MINDSTORMS NXT user guide)
With the Students
 Distribute Measuring g Activity Worksheet to students.

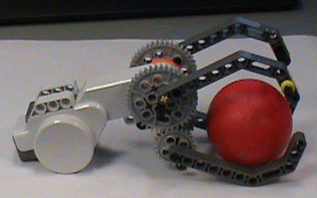

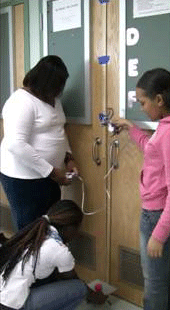

 Place ball in object holder as shown in Figure 1 and position a specified distance directly above target. The full set up is shown in Figure 2.
 Measure the vertical distance between the object and the base plate of the touch sensor.
 Run the Measuring g – Receiver program on the brick attached to the touch sensor. Run the Measuring g – Controller program on the brick attached to the object holder.
 On the Measuring g Activity Worksheet, record the time it takes for the object to hit the touch sensor after it is dropped from the object holder. This time will be displayed on the screen of the LEGO MINDSTORMS NXT.
 Calculate average velocity of each run using the following equation:
velocity = distance/ time
 Repeat steps 1 5 while either raising or lowering the starting position of the object. Record data in chart on the Measuring g Activity Worksheet for four additional starting positions.
 Repeat for another object of different weight.
 Using spreadsheet software such as Excel, construct a graph of average velocity vs. time for all objects tested.
 Perform a linear regression analysis (a best fit line) of the data and obtain the equation for the line (in the form of y = mx +b) as well as the square of error (R^{2}). A good fit is determined by a R^{2} that is close to 1, which in turn will determine how well the calculated values of g agree with the standard value of g.
 Based on equation 8, above, the value for the slope (m) is the acceleration g divided by 2. By multiplying this slope by a factor of two, it will give a measured value g of the free falling object. Compare this value to the standard value of g.
 Compare the values for the measured acceleration of the different the objects tested. Keep in mind that the values determined for g should be similar for all objects tested.
Vocabulary/Definitions
acceleration: The rate of change of velocity with respect to time.
gravity: The force of attraction by which terrestrial bodies tend to fall toward the center of the earth.
kinetic energy: The energy of motion.
potential energy: The energy of position.
velocity: The rate of change of position with respect to time.
Assessment
Activity Embedded Assessment
Analysis – Measuring g Activity Worksheet
Students complete the activity worksheet and in doing so, perform the following analysis. Students observe that although the best fit lines generated for the objects tested may look different, they should have a similar slope. Also, students gauge the reliability of the best fit line by the R^{2} value, with 1 being a perfect fit. Students consider and research explanations for the difference in the values for the measured acceleration and accepted value of g (9.8 m/s^{2}). In conclusion, students are asked to think about examples of engineering applications where knowing the value of g is crucial, such as designing a rocket ship or sending a satellite into orbit.
Activity Extensions
This activity could be performed without the use of the LEGO MINDSTORMS NXT, and instead, students could use stopwatches to measure the time it takes an object to fall and hit the ground. Therefore, one possible activity extension is to have students perform this activity as is and again without the use of the LEGO MINDSTORMS NXT to compare the results. Students should consider which measured g value is closest to the accepted g value. Which method provided a more accurate result? Did the LEGO MINDSTORMS NXT help or hinder measuring g? What does this suggest about the assistance of a robot in scientific and engineering calculations and experimentations?
References
Dictionary.com. Dictionary.com, LLC. Accessed August 2, 2009. (Source of some vocabulary definitions, with some adaption) http://dictionary.reference.com/
LEGO.com. The LEGO Group. Accessed August 2, 2009. http:// www.Mindstorms. http:// lego.com
Copyright
© 2013 by Regents of the University of Colorado; original © 2009 Polytechnic Institute of New York UniversityContributors
Keeshan Williams; Nicole Abaid; Jennifer HaghpanahSupporting Program
AMPS GK12 Program, Polytechnic Institute of New York UniversityAcknowledgements
This activity was developed under the Applying Mechatronics to Promote Science (AMPS) Program funded by National Science Foundation GK12 grant no. 0741714. However, these contents do not necessarily represent the policies of the NSF and you should not assume endorsement by the federal government.
