Hands-on Activity Exploring Bioluminescence in Aquatic Animals

(2 Ratings)

Quick Look

Grade Level: 6 (5-7)

Time Required: 1 hours 15 minutes

Expendable Cost/Group: US $0.00

Group Size: 2

Activity Dependency: None

Subject Areas: Life Science, Physical Science

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
MS-LS2-4
MS-LS2-5

An aquatic organism cut-out on black cardstock expressing bioluminescence with fluorescent materials such as glow-in-the-dark tape, UV beads, and glow paint.
Bioluminescent Organism Cut-Out with Fluorescent Materials Expressing Bioluminescence
copyright
Copyright © 2021 Jessica Robicheaux, Rice University RET

Summary

Some of the world’s most fascinating organisms emit their own light through bioluminescence—which is typically generated by a light-emitting molecule and a specific type of enzyme. Animals might use bioluminescence to signal, attract prey, or attract mates. In this activity, students make sense of how organisms emit light using bioluminescence and how these phenomena can increase organisms’ survival rate in harsh environments. Through the engineering design process, students create their own bioluminescent organism using ultraviolet light and fluorescent materials to help their organism either warn and evade predators, lure and detect prey, or communicate between members of the same species.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

Engineers are interested in developing near-infrared dyes for their enhanced capability in fluorescence detection and imaging in biomedical applications. These imaging techniques include excellent tissue penetration depth, low background with minimal fluorescence from surrounding tissues, and low cost. Biomedical engineers in this field utilize fluorescence to visualize tissue using fluorescent probes. Like bioluminescence in nature, these dyes can be activated by certain wavelengths to help identify targeted tissues.

Learning Objectives

After this activity, students should be able to:

  • Observe the way organisms live and survive in their ecosystem by interacting with the living and nonliving components.
  • Compare the structures and functions of different species that help them live and survive in a specific environment such as green fluorescence in fish’s eye lids to help detect prey better.
  • Communicate valid conclusions in both written and verbal form.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

MS-LS2-4. Construct an argument supported by empirical evidence that changes to physical or biological components of an ecosystem affect populations. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Construct an oral and written argument supported by empirical evidence and scientific reasoning to support or refute an explanation or a model for a phenomenon or a solution to a problem.

Alignment agreement:

Science disciplines share common rules of obtaining and evaluating empirical evidence.

Alignment agreement:

Ecosystems are dynamic in nature; their characteristics can vary over time. Disruptions to any physical or biological component of an ecosystem can lead to shifts in all its populations.

Alignment agreement:

Small changes in one part of a system might cause large changes in another part.

Alignment agreement:

NGSS Performance Expectation

MS-LS2-5. Evaluate competing design solutions for maintaining biodiversity and ecosystem services. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Evaluate competing design solutions based on jointly developed and agreed-upon design criteria.

Alignment agreement:

Biodiversity describes the variety of species found in Earth's terrestrial and oceanic ecosystems. The completeness or integrity of an ecosystem's biodiversity is often used as a measure of its health.

Alignment agreement:

Changes in biodiversity can influence humans' resources, such as food, energy, and medicines, as well as ecosystem services that humans rely on—for example, water purification and recycling.

Alignment agreement:

There are systematic processes for evaluating solutions with respect to how well they meet the criteria and constraints of a problem.

Alignment agreement:

Small changes in one part of a system might cause large changes in another part.

Alignment agreement:

The uses of technologies and any limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions. Thus technology use varies from region to region and over time.

Alignment agreement:

Scientific knowledge can describe the consequences of actions but does not necessarily prescribe the decisions that society takes.

Alignment agreement:

  • Organisms and environments. The student knows that living systems at all levels of organization demonstrate the complementary nature of structure and function. The student is expected to: (Grade 7) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Subscribe

Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!
PS: We do not share personal information or emails with anyone.

Materials List

Each pair needs: (providing a variety of items for students to choose from)

For the entire class to share:

  • Teacher-made deep-sea diorama (i.e., a large shoebox, without lid, whose inside is covered in black construction paper)
  • black light
  • liquid glue
  • scissors
  • tape
  • black construction paper or thick black cardstock
  • white colored pencil (for tracing organisms on black paper)

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/rice-2638-light-dyes-exploring-bioluminescence-activity] to print or download.

More Curriculum Like This

Upper Elementary Activity
Light Up Your Machines with Biomimicry!

Students explore different forms of energy such as mechanical, electrical, light, thermal and sound energy and how these energies are converted or change from one form to another. Student work together to build a prototype device of their choice that includes electrical circuitry.

Pre-Req Knowledge

A familiarity with how structures and functions enable organisms to survive in their environment.

Introduction/Motivation

Have you ever wondered why some organisms can glow, flash, and blink? This natural phenomenon is called bioluminescence, which is light produced by a living organism caused by a chemical reaction.

Can you think of some organisms that possess this unique adaptation? What environments can we find these organisms in? One common example would be the firefly. If you have ever seen mysterious flashing lights in the countryside around sunset, then you may have seen a firefly use bioluminescence in action. But how and why does this insect use bioluminescence? The specific bioluminescent chemical reaction for the firefly involves a combination of substances in their abdomen. All these ingredients come together in the insect’s light organ called the luminophore and then light is produced.

So why does the firefly light up the night sky with its flashing fluorescence? This could be for a variety of reasons depending on the species. One reason could be to warn predators of their nasty taste. Another reason could be to communicate with other members of the opposite sex for potential mates.

Despite the beauty and wonder of fireflies, they are not the only organism that can produce light in their bodies. What about aquatic organisms? Would aquatic organisms benefit from using bioluminescence in the deep sea? The answer is yes!

Bioluminescence is more common in aquatic ecosystems rather than land ecosystems. In fact, aquatic organisms use the same chemical (luciferin) and enzyme (luciferase) as the firefly to produce their own light. Bioluminescence is an adaptation that is extremely advantageous in the cold, dark waters of the deep ocean due to light being so rare. Below 3,300 feet, also known as the Twilight Zone, there is absolutely no sunlight and organisms must adapt to living in complete darkness. Many organisms have used bioluminescence to their advantage to communicate with others, find a mate, hunt, and confuse predators.

There are a total of 1,500 species of fish alone that can luminesce, which proves that this adaptation contributes to the overall success of these organisms as they have evolved over time. Most aquatic organisms can control their bioluminescence by being able to turn their “glow” on and off. They also can control the brightness and what color is being emitted, which can be very useful depending on the situation. Overall, bioluminescence is the driving force of many deep-sea organisms and without this special adaptation, these organisms would not be able to survive the harsh conditions the ocean presents.

How could humans use bioluminescence? (Let students offer their thoughts.) Engineers are developing near-infrared fluorescent dyes for their enhanced capability in fluorescence detection and imaging.  Like bioluminescence in nature, these dyes can be activated by certain excitation wavelengths to “light up” and help identify disease in the body. Essentially, engineering helps innovate the way we visualize cells in the body by harnessing the power of light.

Today, we are going to construct our very own aquatic bioluminescent organism using the engineering design process. Can you use the power of bioluminescence to help your organism survive the harsh conditions of the deep sea? Let’s try it!

Procedure

Before the Activity

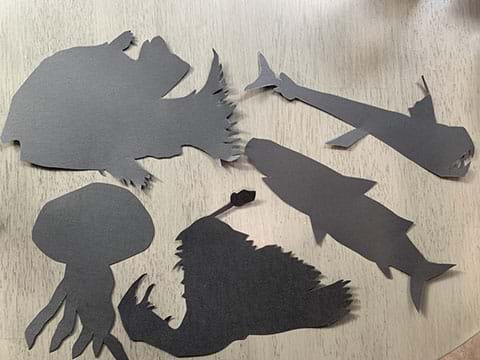

Various aquatic organism cut-outs on black cardstock.
Bioluminescent Organism Cut-Outs
copyright
Copyright © 2021 Jessica Robicheaux, Rice University RET

With the Students

Day 1

Introduce the Concept of Bioluminescence

  1. Go through the Aquatic Bioluminescence PowerPoint Presentation with students.
    1. Slide 1: Present the following questions to the class: “Do you ever wonder why some aquatic organisms glow, flash, and blink? Bioluminescence is light produced by a living organism caused by a chemical reaction. Why do some organisms have bioluminescence?”
    2. Slide 1 (continued): Discuss with students the conditions aquatic organisms may encounter in the deep ocean. Questions to focus on: What are the conditions like in the deep ocean? (Answers: very cold, little food, no light). Is there an abundance of food available? (Answer: no) Ask students to think about how aquatic organisms have adapted to these harsh conditions.
    3. Slide 1 (continued): Continue investigating questions: “What makes these creatures odd or weird?” More than anything, it is the environment in which they live in the deep ocean - the peculiar conditions to which they have adapted. These include intense pressure far beyond our imagination, and lack of light. In fact, 99% of the sun’s light does not penetrate below the topmost 330 feet (100 m) of the surface of the sea. The pressure at 3,280 feet (1 km), where no light penetrates and where some deep-sea creatures live, is 100 times greater than the pressure we feel at the surface.
    4. Slide 2: Show students the video from BBC Earth explaining bioluminescence: http://www.youtube.com/watch?v=UXl8F-eIoiM.
    5. Discuss with students how this adaptation may benefit them.
    6. Slide 2 (continued) After viewing the video, have students complete the ‘Research Notes’ section in the Light-Up Your Dyes Student Packet and the and Light-Up Your Dyes Student Packet Presentation. to answer the following question: Why do some aquatic organisms express bioluminescent properties?
    7. Have students share their evidence with the class. (Valid responses should include warning and evading predators, luring and detecting prey, or communicating between members of the same species.)
    8. Slide 3: Move onto slide 3 to provide a visual of the conditions of the different ocean zones. Most of the organisms the students will be learning about can be found in the Twilight Zone and below (3300 meters).

Day 2

Design prototype of an aquatic organism that expresses bioluminescent properties based on need (warn and evade predators, lure and detect prey, or communicate between members of the same species).

  1. Have students work in pairs.
  2. Have each pair choose a bioluminescent organism from the Bioluminescent Organism Cut-Outs: (deep-sea anglerfish, stoplight loosejaw, spined pygmy shark, jewel squid, hatchetfish, Sloane’s viperfish, mauve stinger, or black dragonfish).
  3. After they choose their organism, students take the corresponding Bioluminescent Organism Cards to learn more about the organism and how it specifically meets its needs in the deep ocean using bioluminescence.
  4. Students identify the need and constraints of the organism to place the bioluminescent materials correctly on the cut-out.
  5. Students first plan their prototype design in their Light-Up Your Dyes Student Packet and the and Light-Up Your Dyes Student Packet Presentation. with their partner. Make sure students can view available fluorescent materials (glow paint, glow tape, UV beads, etc.)
  6. Students will use various fluorescent materials to construct a prototype to help their chosen organism meet its needs (communication, luring prey, or evading predators). The design will need to be created directly on their Bioluminescent Organism Cut-Outs. The glow materials need to model how their deep-sea creature would use bioluminescence to survive.
  7. Once students have planned their design, they may begin cutting out their organism, preferably on thick black cardstock. To save time, the cut-outs can be cut out ahead of time.
  8. Students will have 20 minutes to construct their prototype.

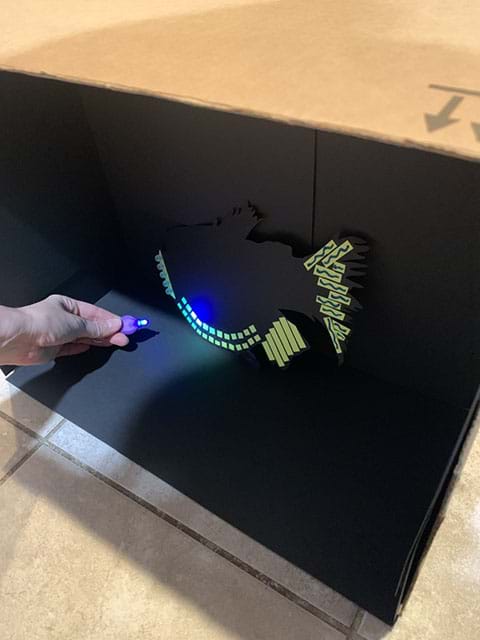

  9. Once their prototype is complete, students will test their design in the black diorama (teacher made). Teacher will use a blacklight to view the specific type of bioluminescence used for that organism to survive.
  10. Have students demonstrate their creation to the class.

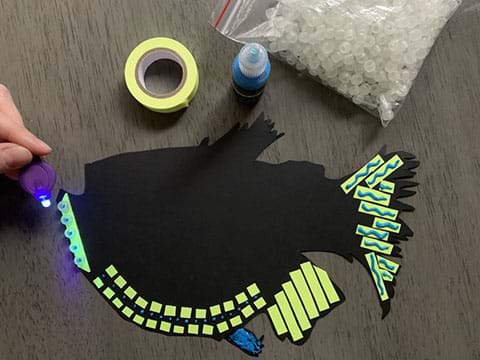

An aquatic organism cut-out on black cardstock expressing bioluminescence with fluorescent materials such as glow-in-the-dark tape, UV beads, and glow paint.
Bioluminescent Organism Cut-Out with Fluorescent Materials Expressing Bioluminescence
copyright
Copyright © 2021 Jessica Robicheaux, Rice University RET

Day 3

Will your organism be able to meet its needs using bioluminescence?

  1. Students will participate in writing their claims, evidence, and reasoning. Explain to students that writing out their claims, evidence, and reasoning will help with working through problems to arrive at an explanation. These documents also help scientists develop a better understanding of the problem and give you the ability to communicate your thoughts clearly to others.
  2. Students will answer the question, ‘How does bioluminescence help your aquatic organism survive in the incredibly hah conditions of the deep sea?’ This will take place on page 5 in Light-Up Your Dyes Student Packet.
  3. Students must provide at least three pieces of evidence to prove their claim and effectively explain why their organisms are able to survive with their specific adaptations.
  4. A scoring rubric is provided and included on page 7 of the student packet.

A student and teacher pose with their test animal. A black diorama cardboard box mimicking the deep ocean contains an aquatic organism cut-out modeling bioluminescence using fluorescent materials. A mini UV light is shining on the prototype.
What other ways can we think of to engineering designs using bioluminescence?
copyright
Copyright © 2021, Jessica Robicheaux

Vocabulary/Definitions

adaptation: A change or the process of change by which an organism or species becomes better suited to its environment.

bioluminescence: The emission of light by a living organism.

chemical reaction: A process that involves rearrangement of the molecular or ionic structure of a substance, as opposed to a change in physical form or a nuclear reaction.

fluorescence: The emission of light by a material when stimulated by the absorption of radiation or of a subatomic particle.

Assessment

Pre-Activity Assessment

Brainstorming: As a whole group, have students engage in an open discussion about why certain organisms glow, flash, and blink light. Students then provide evidence to answer that question pertaining to aquatic organisms in their Light-Up Your Dyes Student Packet and Light-Up Your Dyes Student Packet Presentation.

Quick Poll: Before the activity begins ask students the following question: How do aquatic organisms survive intense pressure, cold and total darkness? Encourage students to agree or disagree with responses.

Activity Embedded (Formative) Assessment

Student Packet: Have students work in pairs on Light-Up Your Dyes Student Packet and Light-Up Your Dyes Student Packet Presentation. After they finish their research, brainstorming, and planning their prototype design they may begin constructing and applying fluorescent materials to their bioluminescent cut-out.

Hypothesize: Ask students what they think would happen if these aquatic organisms did not possess bioluminescence in the deep ocean. (Answer: Considering bioluminescence is the only source of light in most cases, these organisms would have difficulties fending off predators, luring prey, and attracting mates in the deep ocean.)

Post-Activity (Summative) Assessment

Claim-Evidence-Reasoning: Students will provide a claim, evidence, and reasoning that bioluminescence will increase the survival rate of their aquatic organism.

Making Sense Assessment: Have students reflect on the science concepts they explored and/or the science and engineering skills they used by completing the Making Sense Assessment.

Safety Issues

  • No one should ever look directly into a beam of light when working with UV light (blacklight).

Troubleshooting Tips

  • Cut out the Bioluminescent Organism Cut-Outs ahead of time.
  • Tracing organisms on black cardstock for organism cut-outs would be best. Tracing cut out using white colored pencil would be more authentic to modeling organisms in the deep ocean.

References

Hoyt, Erich. Weird Sea Creatures. Buffalo, New York, ST: Firefly Books (U.S.) Inc., 2013

Scientific American. How and Why Do Fireflys Light Up?. September, 5, 2005. https://www.scientificamerican.com/article/how-and-why-do-fireflies/#
