Hands-on Activity: Wind-Powered Sail Cars

Contributed by: RESOURCE GK-12 Program, College of Engineering, University of California Davis

A photograph shows two young boys in a school, smiling and holding a sail car.
Two sail car competitors.
copyright
Copyright © 2015 Eric Anderson, University of California Davis

Summary

Student pairs design and construct small, wind-powered sail cars using limited quantities of drinking straws, masking tape, paper and beads. Teams compete to see which sail car travels the farthest when pushed by the wind (simulated by the use of an electric fan). Students learn about wind and kinetic and renewable energy, and follow the steps of the engineering design process to imagine, create, test, evaluate and refine their sail cars. This activity is part of a unit in which multiple activities are brought together for an all-day school/multi-school concluding “engineering field day” competition.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Humans have been harnessing wind energy for thousands of years. Wind-powered devices convert kinetic energy in the wind into other more useful forms of energy. Sailboats convert the wind's kinetic energy to kinetic energy for transportation. Wind turbines convert the wind's kinetic energy to electrical energy that can be used to power our homes and devices. Today's engineers follow the steps of the engineering design process and apply their understanding of physics to design highly efficient wind turbines to make wind energy a viable source of renewable energy. In this activity, students follow the steps of the engineering design process to create small-size wind-powered sail cars that convert the wind's kinetic energy to kinetic energy that moves the sail cars.

Pre-Req Knowledge

It is helpful, but not absolutely necessary, for students to have an understanding of the following concepts:

  • Energy
  • Any object in motion has kinetic energy.
  • Wind has kinetic energy.
  • Energy has many forms.
  • Energy can be transferred from one form to another, or transferred from one object to another

Learning Objectives

After this activity, students should be able to:

  • Build a small-scale wind-powered sail car.
  • Explain that energy is transferred from the wind to the sail car.
  • Explain that the energy in the wind and the energy in the movement of the car are forms of kinetic energy.
  • Explain how they used experimentation and testing to iteratively revise their designs.

More Curriculum Like This

Thar She Blows!

Students learn about wind as a source of renewable energy and explore the advantages and disadvantages wind turbines and wind farms. They also learn about the effectiveness of wind turbines in varying weather conditions and how engineers work to create wind power that is cheaper, more reliable and s...

Elementary Lesson
Gone with the Wind - Sail Cars!

Students explore the use of wind power in the design, construction and testing of "sail cars," which, in this case, are little wheeled carts with masts and sails that are powered by the moving air generated from a box fan. The scientific method is reviewed and reinforced with the use of controls and...

Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

High School Lesson
Renewable Energy Design: Wind Turbines

Students apply real-world technical tools and techniques to design their own aerodynamic wind turbines that efficiently harvest the most wind energy. Specifically, teams each design a wind turbine propeller attachment

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Generate and compare multiple possible solutions to a problem based on how well each is likely to meet the criteria and constraints of the problem. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Construct, use, and present arguments to support the claim that when the kinetic energy of an object changes, energy is transferred to or from the object. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The engineering design process involves defining a problem, generating ideas, selecting a solution, testing the solution(s), making the item, evaluating it, and presenting the results. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Design involves a set of steps, which can be performed in different sequences and repeated as needed. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Modeling, testing, evaluating, and modifying are used to transform ideas into practical solutions. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Generate and compare multiple possible solutions to a problem based on how well each is likely to meet the criteria and constraints of the problem. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Construct, use, and present arguments to support the claim that when the kinetic energy of an object changes, energy is transferred to or from the object. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group needs:

Materials note: Depending on the number and extent of design modifications teams go through during the design-build-test-refine process on Day 1, they may require more straws, paper and tape than the amounts listed above (which are amounts for one design iteration), plus teams will each require one fresh set of supplies for competition day (Day 2).

A photograph shows two fingers of a hand holding a spherical wooden bead, tan in color, with a pencil-width hole through its center.
Figure 1. An example macramé bead.
copyright
Copyright © 2015 Eric Anderson, University of California Davis

To share with the entire class:

  • capability to show the class a short online video
  • masking tape, to mark the competition course
  • 9-inch electric fan (like the one shown in Figure 2), to provide the wind energy to push the sail cars, almost any fan will work as the wind source; having multiple fans may speed up the testing process
  • measuring tape, to measure how far the sail cars travel
  • gram scale or kitchen scale, to weigh cars in case of a tie; since the sail cars do not weigh much, typically less than 100 grams (~3.5 ounces) each, make sure the scale has a relatively small resolution; a gram scale or kitchen scale is best; a bathroom scale will not work

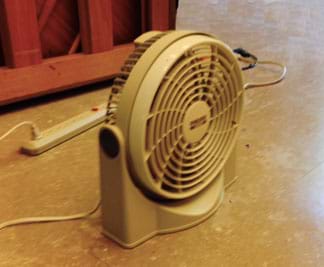

    A photograph shows a nine-inch round electric fan resting on a smooth floor.
    Figure 2. An electric fan serves as the wind source.
    copyright
    Copyright © 2015 Eric Anderson, University of California Davis

Introduction/Motivation

Who thinks they could design a car that doesn't need gas to make it go—a car that uses a clean pollution-free energy source instead? Who thinks they could design a car that is powered by an energy source that we could find outside and use for free? Raise your hand if you think you could design a car like that.

Let's start by watching a short video. (Show the following two-minute video about the 2014 land sailing world championship.)

Today we're going to design and build wind-powered sail cars. They won't be as big as the ones we saw in the video; we're going to build smaller, model-sized sail cars. They won't be able to carry you or go 90 plus miles per hour like the guy with the hat said at the beginning of the video, but they are going to be really cool. They're going to be really cool because you will design your own sail cars, then test them and tweak and revise them until you have created the best, highest performance sail cars you can make. Then, we will hold a class competition to see who designed the best sail car.

A typical car uses gasoline to make it go. Gas is the energy source that powers the car. What is the energy source that powers a sail car? That's right; wind is the energy source that powers a sail car. Wind is a renewable source of energy that people have been using for a very long time. Sail were the first devices used to capture and harness wind energy. We don't know exactly when the first sails were used, but historians have found ancient Egyptian artifacts that show sailboats and some evidence indicates that sailing was in use thousands of years before the Egyptians. We also know that windmills were used at least 1,200 years ago to grind grain and pump water. Today we use wind turbines to generate clean, inexpensive electricity that can, in turn, be used for many purposes.

Wind is moving air. Does anyone know the type of energy that moving objects have? It is called kinetic energy. Kinetic energy is motion energy. Anything moving has kinetic energy. When the sail car is moving, it has energy. What kind of energy does a moving sail car have? That's right; the moving sail car also has kinetic energy. When we see the wind pushing a sail car, we can think of that process as a transfer of energy. Kinetic energy in the wind is being transferred to kinetic energy in the sail car. As we do this activity and hold our class competition, I want you to pay attention to and think about that transfer of energy.

(Write the following rules on the classroom board as you read aloud the next section.)

Here are the competition rules:

  • Everyone will work in teams of two.
  • Each team gets 10 drinking straws, four beads, one sheet of paper and 40 cm of tape. The beads are the wheels. You must create your sail car using only these materials.
  • You will also be given a pair of scissors so you can cut the paper and straws.
  • On the floor I've marked the course for our competition. The winner will be the car that travels the farthest from the start line before it either stops or goes off course.

This activity is going to take two days. Today, we are going to focus on designing the best sail car possible. I encourage you to try as many different designs as you want and test your cars as many times as you want. As you test and evaluate your sail car designs, pay attention to why you are making the design choices you are making. Notice what works and what does not work and how you might improve your design so it works better. When I talk to you as you are building your sail cars, be ready to explain to me why you think this sail car might work better than the last one you built.

Tomorrow we will hold the competition. On race day, you can only build one sail car—the sail car based on your best design from today—and you will only have one run on the course.

Okay, let's get to work. Let's build some sail cars!

Vocabulary/Definitions

constraint: A limitation or restriction. For engineers, constraints are the requirements and limitations that the final design solutions must meet.

energy: The ability to make things happen. Motion, heat, light and sound are clues that energy is present.

energy transfer: When energy changes from one form to another, or when energy is transferred from one object to another.

kinetic energy: The energy of moving objects. Anything in motion has kinetic energy.

prototype: A first attempt or early design of a new creation or product. May be revised many times.

wind energy: The energy contained in moving air. Wind energy is a form of kinetic energy.

Procedure

Background

Humans have been using wind as an energy source for thousands of years. Historians know that ancient Egyptians built sailboats in 3,000 BC and windmills were developed in the Middle Ages to grind grain and pump water. Today, humans use wind turbines to generate clean, inexpensive electricity.

In this activity, students use wind (simulated by the use of an electric fan) as an energy source to propel their model-sized sail cars. Students are challenged to design and build sail cars that are structurally sound with sails that efficiently capture the wind—all while using the limited supplies available to them. The competition rules and the provided materials serve as the engineering "constraints"—the design requirements and limitations. Use your discretion to determine how much direction to provide students to assist in the design process. For example, you may want to expose the class to historic sail shapes and configurations such as the square rig and fore-and-aft rig (see Wikipedia for good definitions of these sail types). An example student sail car design is shown in Figure 3.

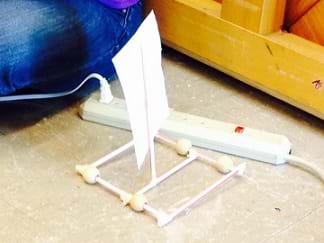

A photograph shows a sail car composed of a square frame made from taped drinking straws, four bead wheels and a square paper sail supported by a single mast positioned vertically in the middle of the sail base.
Figure 3. An example sail car design.
copyright
Copyright © 2015 Eric Anderson, University of California Davis

Through this activity, students experience the universal steps of the engineering design process (see Figure 4). The steps may be performed in different sequences and repeated as necessary. Teams generate and consider multiple possible solutions, aiming to best meet the problem's needs and constraints. They evaluate their testing efforts in order to make improvements to their designs.

Wind is caused by differences in atmospheric pressure. When a difference in atmospheric pressure exists, air flows from areas of high atmospheric pressure to areas of low atmospheric pressure. Globally, the main factors that cause differences in atmospheric pressure (and thus wind) are the rotation of the Earth and uneven heating of the Earth's surface. The rotation of the Earth causes the Coriolis Effect. The Coriolis Effect is what causes hurricanes to rotate counter-clockwise in the northern hemisphere and clockwise in the southern hemisphere. When the Earth's surface is heated unevenly, the air above the hottest regions heats up, expands and becomes lower in density. As a result, that hot air rises, leaving areas of low pressure. Cooler air rushes to fill in areas of low pressure, resulting in what we observe as wind. Locally, wind can be affected by a variety of other factors such as geography (mountains, canyons), human-made structures (buildings), vegetation (trees, forests) and large bodies of water.

Kinetic energy is the energy of motion. Anything that has mass and is moving, including moving air, has kinetic energy. The amount of power (expressed in watts or joules per second) contained in wind is equal to (½)ρAν3, where ρ is the density of air (1.2 kg/m3 at sea level and 68 °F), A is the area the wind is blowing through (expressed in m2), and ν is the speed of the wind (expressed in m/s). Since power is a measure of energy per unit time, the energy of the wind passing through a given area (such as the area of a fan) can be calculated by multiplying the power by how long the wind lasts (such as how long the fan is turned on). The kinetic energy of the sail car (expressed in joules) is approximately equal to (½)mν2, where m is the mass of the sail car (in kg) and ν is the speed of the sail car (in m/s). A small amount of kinetic energy is also present in the spinning of the sail car wheels.

Timing note: Plan on approximately one hour for the competition, while the timeline for the sail car activity—consisting of design, testing, and refinement—is flexible. To conduct the activity as an afterschool program, have students spend time improving their designs over several months leading up to the final competition. When condensed to serve as a classroom project, give students at least a one-hour class period dedicated to developing their sail car designs before holding the competition.

Before the Activity

  • Make copies of the Wind-Powered Sail Cars Pre-Quiz, Wind-Powered Sail Cars Rules Sheet, Wind-Powered Sail Cars Scoring Sheet and Wind-Powered Sail Cars Post-Quiz.
  • Gather materials. Each group needs: 10 straws, 4 macramé beads, 1 sheet of paper, 40 cm of masking tape and a pair of scissors. During Day 1, groups may need additional straws, paper and tape as they modify and improve their designs. Then each group needs one fresh set of the supplies on Day 2, competition day.
  • Review the rules sheet and scoring sheet so as to understand all aspects and requirements of the activity and competition.
  • For Day 1 testing and Day 2 competition, lay out the race course as described in R.4 on the rules sheet and in the sketch on the scoring sheet. Use masking tape to mark a course in a classroom with a smooth floor that is six-feet wide and as long as possible. Place the fan behind the starting line facing towards the race course.

With the Students—Day 1: Sail Car Design, Testing and Refinement

  1. Administer the pre-quiz, as described in the Assessment section.
  2. Present to the class the Introduction/Motivation content or introduce the activity in your own way. Once students understand the activity, divide the class into groups of two students each and hand out the supplies.
  3. Guide groups through the steps of the engineering design process as they design, test and refine their model sail car prototypes. Refer to Figure 4 for a flowchart of the steps.
    A flowchart of the engineering design process with seven steps placed in a circular arrangement: ask: identify the need and constraints; research the problem; imagine: develop possible solutions; plan: select a promising solution; create: build a prototype; test and evaluate prototype; improve: redesign as needed, returning back to the first step, "ask: identify the need and constraints."
    Figure 4. The steps of the engineering design process.
    copyright
    Copyright © 2014 TeachEngineering.org. All rights reserved.
  4. Ask: Identify the need and constraints: (5 minutes) Ask students to identify the needs and constraints involved in this activity. An example of need: "We need a car that can travel a long distance using energy in the wind." The constraints include limitations such as time and materials.
  5. Research the Problem: (10 minutes) Ask students to investigate and experiment to determine the fundamental properties of the provided materials.
  • In which ways are the straws strongest? Expect students to find that the straws are very strong in tension (pulling), pretty strong in compression (pushing along the length of the straw), and pretty weak in bending. Expect them to realize that the straws are very weak in bending if they have been previously bent.
  • Which shapes built with straws are strong? Expect students to discover that triangles and pyramids are very strong shapes. Rectangles and cubes can also be strong.
  • How can the paper catch the wind? By holding the paper in front of the blowing fan, students can generate ideas about the size and shape of sails that best catch the wind, as well as how to best orient sails with respect to the fan.
  1. Imagine: Develop possible solutions: (2 minutes) Have student groups discuss what they learned in the previous step and brainstorm how they can use that information in the design of their sail cars.
  2. Plan: Select a promising solution: (8 minutes) Ask student groups to plan their initial sail car designs before they start building. They can do this by drawing their designs or by discussing and agreeing with their partners on exactly how to make the sail cars. Optionally, require students to produce a written plan of their sail car designs and approve each teams' design before permitting them to start construction. If you approve the designs, check to make sure they are complete, with all components labeled and within the supplies limitation, but do not check to make sure the car will perform well since a big part of this activity is allowing students to come up with their own designs and then iteratively improve those designs after testing. Learning and improving from failure is part of the process. As an example, Figure 5 shows a sail car that worked reasonably well, but could be improved upon. The pyramid shape that supported the sail was strong and held the sail in place. However, some of the wheels did not spin freely, which caused the car to turn and veer off course during the competition.
    A photograph shows two young girls sitting on the floor constructing a sail car with a square frame base made of drinking straws, with wheels at the corners. On top of the frame, a three-sided pyramid made of straws supports a triangular sail.
    Figure 5. Another sail car design.
    copyright
    Copyright © 2015 Denise Jabusch, University of California Davis
  3. Create: Build a prototype: (15 minutes) Groups construct initial prototypes of their model sail cars.
  4. Test prototype: (2 minutes) Groups place their sail cars on the course starting line and turn on the fan; refer to the scoring sheet "starting configuration" diagram. When a sail car stops or leaves the course, use a measuring tape to determine how far it went; refer to the scoring sheet "ending configuration" for measuring guidelines.
  5. Evaluate prototype: (2 minutes) Direct students to evaluate the performance of their sail cars. Did they run into any unexpected problems? (For example, perhaps the car did not travel in a straight line, the sail bent, or part of the car's frame bent.) How could the design be changed to fix the problems encountered? If the car performed well, what design changes might make it perform even better? (For example, perhaps the car could be made lighter, the sail made less floppy, the wheels to roll better.)
  6. Improve: Redesign as needed: (16 minutes) After testing and evaluating their prototype sail cars, direct groups to return to an earlier step in the design process—Imagine: Develop possible solutions (step 6)—and repeat the process of designing, building, testing and evaluating their sail cars. Permit groups to continue this iterative design process as time allows.

With the Students—Day 2: Sail Car Competition

  1. Review the rules and hand out materials: (5 minutes) As a class, review the competition rules. Once you are sure students understand the rules, hand out a new set of materials to each group.
  2. Build sail cars: (30 minutes) Give groups 30 minutes to construct their best sail cars based on what they learned during the previous day's design, testing and refinement process.
  3. Competition: (15 minutes) Collect all the sail cars and consistently test them, one at a time. Refer to the rules sheet and scoring sheet for guidance.
  • Place the back axle of the sail car on the starting line, directly in front of the fan.
  • Turn on the fan.
  • Once the sail car stops or begins to cross the side borders of the course, turn off the fan.
  • Measure the distance from the starting line to the rear axle of the sail car; refer to the scoring sheet "ending configuration" diagram.
  • Record on the scoring sheet the distances achieved by each team and sail car weights.
  1. The winning sail car is the one that travels the farthest. In case of a tie, the lightest car wins the tie.
  2. Post-activity discussion: (10 minutes) At competition end, lead a class discussion of the results, as described in the Assessment section, including some question suggestions.
  3. Administer the post-quiz, as described in the Assessment section.
