SummaryHeat transfer is an important concept that is readily evident in our everyday lives yet often misunderstood by students. In this lesson, students learn the scientific concepts of temperature, heat, and heat transfer through conduction, convection and radiation. These concepts are illustrated by comparison to magical spells used in the Harry Potter stories.
Heat is a concept that is important to understand in various engineering fields. It is particularly relevant for civil, mechanical and chemical engineers because heat transfer plays a key role in material selection, machinery efficiency and reaction kinetics, respectively. In this lesson, students learn how heat transfer applies to engineering and are asked to consider examples of engineering designs that have capitalized on the scientific principles of heat transfer.
After this lesson, students should be able to:
- Define and explain heat, conduction, convection and radiation.
- Explain the relationship between the kinetic and potential energy of atoms in a thermodynamic system.
- Relate the above concepts to common engineering designs and examples from nature.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
|NGSS Performance Expectation
HS-PS3-2. Develop and use models to illustrate that energy at the macroscopic scale can be accounted for as either motions of particles or energy stored in fields. (Grades 9 - 12)
Do you agree with this alignment?
|Click to view other curriculum aligned to this Performance Expectation
|This lesson focuses on the following Three Dimensional Learning aspects of NGSS:
|Science & Engineering Practices
|Disciplinary Core Ideas
|Develop and use a model based on evidence to illustrate the relationships between systems or between components of a system.
|Energy is a quantitative property of a system that depends on the motion and interactions of matter and radiation within that system. That there is a single quantity called energy is due to the fact that a system's total energy is conserved, even as, within the system, energy is continually transferred from one object to another and between its various possible forms.
Alignment agreement:At the macroscopic scale, energy manifests itself in multiple ways, such as in motion, sound, light, and thermal energy.
Alignment agreement:These relationships are better understood at the microscopic scale, at which all of the different manifestations of energy can be modeled as a combination of energy associated with the motion of particles and energy associated with the configuration (relative position of the particles). In some cases the relative position energy can be thought of as stored in fields (which mediate interactions between particles). This last concept includes radiation, a phenomenon in which energy stored in fields moves across space.
|Energy cannot be created or destroyed—it only moves between one place and another place, between objects and/or fields, or between systems.
Energy cannot be created nor destroyed; however, it can be converted from one form to another.
Do you agree with this alignment?
Energy can be grouped into major forms: thermal, radiant, electrical, mechanical, chemical, nuclear, and others.
Do you agree with this alignment?
Assess how similarities and differences among scientific, mathematical, engineering, and technological knowledge and skills contributed to the design of a product or system.
Do you agree with this alignment?
describe how the macroscopic properties of a thermodynamic system such as temperature, specific heat, and pressure are related to the molecular level of matter, including kinetic or potential energy of atoms;
Do you agree with this alignment?
contrast and give examples of different processes of thermal energy transfer, including conduction, convection, and radiation; and
Do you agree with this alignment?
analyze and explain everyday examples that illustrate the laws of thermodynamics, including the law of conservation of energy and the law of entropy.
Do you agree with this alignment?
Worksheets and AttachmentsVisit [ ] to print or download.
Students should be familiar with the concept of energy and the law of conservation of energy. They should also have a basic knowledge of high school chemistry.
(In advance, make copies of the Heat Transfer Guided Notes Worksheet, one per student, and have handy a few ice cubes for a quick demo. Hand out the worksheets now, to help students stay engaged and follow the content as it is presented. The guided notes focus on definitions and heat transfer examples.)
Today we are going to talk about a concept that will sound familiar to you: heat. Although I am sure that you have heard the word heat before, today we are going to discuss the science and physics behind what heat really is. Can anyone describe a situation in which you remember feeling the most cold or most hot that you have ever felt? (Listen to a few students. Avoid storytelling and sidetracking conversations.) Have any of you burned yourself while cooking, or maybe experienced frostbite while in the snow? (Listen to a few student examples.)
When we talk about being hot or cold, we are discussing temperature. Temperature is the measure of the average thermal energy in a system. (Write the definition on the classroom board.) If an object, such as a baking pan, has a lot of energy, then it feels hot, but if it has less energy, then it feels less hot. To help explain this, can anyone tell me what basic elements (building blocks) compose a typical baking pan? (Possible answers: Metal, molecules, atoms.) If you recall from your chemistry class, a baking pan is made of billions and billions of atoms that all vibrate and move in place. As we learned in our unit about energy, anything that is moving has kinetic energy, which is why we define temperature as the measure of the energy in a system. So when the atoms in a system move faster, the system has more energy and a high temperature, and when the atoms are moving slower, the system has less energy and a lower temperature. We know that energy cannot be created or destroyed, but is continuously transferred between different forms of potential and kinetic energy. In today's lesson, we will learn about heat and three ways it can be transferred.
In science, we define heat as the transfer of thermal energy from one system to another. (Add this definition to the board.) I need une volunteer. (Call on a student to come up to the front of the classroom. Give the student an ice cube.) How does the ice feel on your hand? (Answer: Cold) How do you think heat is being transferred between your hand and the ice? (Expected answer: The ice is making my hand cold.) Good, thank you. (Have the student sit down.) This demonstrates an important concept about heat: Heat always goes from high energy to low energy. Because (students name)'s hand had more energy than the ice, energy transferred from their hand to the ice. So the ice makes your hand feel cold, but it is because your hand transfers energy into the ice causing the ice to increase in temperature and your hand to decrease in temperature. So really, your hand is making the ice warmer! Engineers use this detail-level understanding of heat transfer to perform many tasks. For example, let's consider a car's engine.

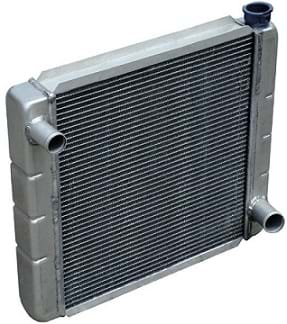

In order for a car to move, its engine combusts gasoline or diesel and converts the chemical potential energy stored in the fuel into kinetic energy. In that reaction, a tremendous amount of heat is produced and transferred to the engine. If the engine gets too hot, parts begin to break. In order to keep the engine at a more tolerable temperature, engineers designed a system we call the radiator. Fluid in the radiator runs through the engine where heat is transferred into the fluid, which then travels back to the radiator where it is cooled before cycling back to the engine. Students can conduct their own experiment with the associated activity What Works Best in a Radiator? by measuring the differences in transfers of heat energy between different liquids.
This radiator example demonstrates one type of heat transfer. For the remaining part our talk today, we will define and discuss all of the ways heat can be transferred. Additionally, we will see examples of heat transfer in both the magical world of Harry Potter and our daily lives.
(Continue on, presenting students with the Lesson Background content information.)
Lesson Background and Concepts for Teachers
Temperature is the measure of the average thermal energy in a system or body. We use three common scales to measure temperature: Fahrenheit, Celsius and Kelvin. The Fahrenheit scale identifies the freezing point of water as 32 ⁰F and the boiling point of water as 212 ⁰F, whereas the Celsius scale identifies the freezing point of water as 0 ⁰C and the boiling point of water as 100 ⁰C. The Kelvin scale is an adaptation of Celsius that sets absolute zero as 0 K. At absolute zero, atoms cease to move and no thermal energy exists. For reference, one of the coldest materials is liquid nitrogen, which has a temperature of 77 K, which is -196 ⁰C or -321 ⁰F.
Heat is an important concept for researchers, scientists and engineers. The term "heat" is different from temperature in that it is not the measure of thermal energy, but rather the measure of the transfer of thermal energy. The three different types of heat transfer are conduction, convection and radiation. When thermal energy is being transferred, it always goes from the state of higher energy to lower energy (as demonstrated by the ice in the student's hand). Although it is common to think that cold objects contribute something to us when touched, it is rather that our bodies lose energy, which results in a decrease in our thermal energy and temperature.
Conduction is the transfer of heat due to direct contact of systems. The atoms vibrating in one object have an effect on the atoms of another object when in contact. For an object with higher thermal energy, the atoms are vibrating faster than an object with less thermal energy, and during their contact, energy is transferred from the object of high energy to the one with less energy. Due to the proximity of atoms and molecules, conduction is most effective in the solid and liquid phases and less effective in the gas phase. This concept can be illustrated by attempting to cool down a drink. A drink cools faster if put in a bucket of ice water (≈4 ⁰C) rather in the refrigerator (≈4 ⁰C) because more molecules are in contact with the drink via the liquid than via the refrigerated air.
Within conduction is the concept of conductance. Conduction is not limited to being between two objects; it can also be the transfer of heat within a single object or material. For example, if a metal skillet is being heated on a stove (the stove top is transferring its thermal energy into the metal skillet), the layer of atoms in the skillet at the point of contact with the stove top begins to vibrate faster, which then interacts with the next layer of atoms, and so on throughout the entire skillet. The conductance, which is the ability to transfer thermal energy, of a material is largely based on the molecular structure and bonding of the material. Conductors are materials that transfer heat quickly, while insulators are materials that do not transfer heat effectively. Materials such as metals, glass and ceramics are good conductors; materials such as plastic, wood and Styrofoam are insulators.
(To pique students' interest, use examples of spells from the Harry Potter stories to illustrate the concept of conductance.) From the Harry Potter world, one spell called flagrante causes an object to burn anyone or anything that touches it. Normally an object would require high thermal energy to transfer that energy through conduction, but in this case it is assumed that magic transfers the energy. In the muggle world (our world), many engineered and natural examples of conduction exist. For example, conduction is illustrated in the example of a car radiator (see Figure 1). One function of the radiator system is to circulate cool fluid through a hot engine block, which transfers its heat by conduction to the radiator fluid, therefore reducing the amount of heat in the engine and reducing the risk of overheating. Another example technology that applies the understanding of conduction is the use of insulating materials, which resist the flow of heat and reduce conduction. People and animals take advantage of insulating materials; we build houses and buildings with insulation in order to regulate the temperature, and animals such as walruses have fatty tissue called blubber that insulate them from the cold environment.
Convection is often observed in the movement of bulk fluids. When liquids or gases flow, they exchange thermal energy with other media with which they come into contact. As discussed earlier, the radiator liquid is cooled once it returns to the radiator; this is done by air passing over the hot radiator and heat moving from the radiator to the air. Additionally, convection can occur within a singular body of fluid through the changing of temperature within a bulk mass of fluid. Much like conductance in solid bodies, bulk systems of fluids can have different temperature gradients, but what is different about fluids is that these temperature differences can lead to significant density changes. Because fluids, such as gases and liquids, are free to move, if one portion of the fluid increases in temperature (due to either conduction or radiation), its density decreases and that portion of the fluid rises. Convection can be illustrated by a fireplace that heats the air in a room, causing it to expand and rise, while the cooler air near the ceiling falls towards the fire where it is warmed. Convection is seen in many scenarios by this continuous heating and cooling process, evidenced by this rising and falling movement.
(To pique students' interest, use examples of spells from the Harry Potter book series to illustrate the concept of convection.) In Harry Potter's magical world, one example of convection is a hot air charm used to cause a blast of hot air to come forth from the wand. The hot air is the movement of a bulk fluid that transfers heat to any object that it encounters. In the muggle world, many engineered and natural examples of convection exist. Engineers have designed ovens, electronic cooling systems and heat exchangers, such as car radiators, to benefit from the concept of convection. As discussed above, the fluid in a car's radiator is heated by the engine, after which it is circulated back to the radiator and cooled by the air passing over the radiator's surface. The radiator is an example of a continuous process of the heating and cooling of a liquid, driven not by density change but by a mechanical pump. Elephant's large ears are an example of a natural radiator; the warm blood is circulated by the heart into the ears and cooled by the air that passes over the ear surface. The continuous process of the warm blood being cooled as it circulates through the ears helps keep the animal cool in the intense African heat.
Radiation is the transfer of heat by electromagnetic waves. Electromagnetic waves can be transferred through space without the presence of matter, but thermal energy is not generated until the waves contact matter. As the electromagnetic waves contact matter, they transfer heat by increasing the thermal energy of the matter. It is interesting to note that the heat transferred by radiation is a function of the matter's absorbance of the electrometric waves. White objects reflect much of the light that hits them, thus absorbing very little of the energy and avoiding the transmittance of heat due to radiation. On the other end of the spectrum, black objects adsorb all of the light and have the maximum heat transfer due to radiation. But radiation does not only occur by visible light; it can also be due to the electromagnetic waves in the range of infrared and others.
(To pique students' interest, use examples of spells from Harry Potter to illustrate the concept of radiation.) In the fictional Harry Potter stories, one example of radiation is a spell called lumus, which causes the wand to transmit a beam of light. Although the spell is used more like a flashlight, it still produces electromagnetic waves that transmit some heat. In the muggle world, many engineered and natural examples of radiation exist, too. One simple demonstration is the concentration of sunlight into a fine point through the use of a magnify glass. If kept steady on a piece of paper, the energy from the sun eventually causes the paper to smoke and catch on fire. An engineered example of the use of radiation to transmit heat is the microwave oven, which transmits microwaves into food, causing the atoms to vibrate more rapidly and the temperature to increase. The primary example of radiation in nature is the sun, which is the source of heat and warmth for all life on Earth. One way to see the effect of the sun in transmitting heat is by comparing climates on the equator to climates closer to the poles. The difference in average temperatures is due to the angle at which the electromagnetic waves encounter the Earth's surface.
- What Works Best in a Radiator? - Student groups heat beakers of unknown liquids on hot plates and measure the temperature difference over time. Then they calculate the heat energy that was transferred into their liquids and decide which of five liquids being investigated would work best in a car radiator.
Once students have completed the associated activity, call their attention for a review of all of the main concepts:
- Discuss the importance of understanding the specific heat capacity of different materials and how it is important for engineers to consider these properties when designing structures, devices, chemicals and most products.
- Ask students to explain at least one natural and one engineered example of each of the three types of mass transfer of energy.
- Conclude the lesson by making a brief and initial connection between heat and the larger topic of thermodynamics. Heat transfer is often taught right before or during a unit on thermodynamics, so it is important to help students understand how heat fits in to the larger topic of thermodynamics.
conduction: The transfer of heat by atomic movement due to contact from systems of high temperature to systems of lower temperature.
convection: The transfer and movement of heat by bulk flow of fluids.
heat: The transfer of thermal energy across systems or within a single system.
radiation: The transfer of heat by the absorbance and emission of electromagnetic waves.
temperature: A measure of the average thermal energy in a system or body.
Energy Review: Verbally review with students the concepts of energy and the law of conservation of energy. Ask questions to refresh their knowledge about energy and connect the concepts of energy and heat. For example:
- What does the law of conservation of energy tell us? (Answer: Energy cannot be created or destroyed.)
- What are the two main forms of energy? (Answer: Potential and kinetic energy.)
- Give me some scenarios in which potential and kinetic energy exist? (Answer: Potential energy: A book on the shelf; kinetic energy: a bowling ball rolling across the floor; both: a bird flying, etc.)
Guided Note Taking: During the lesson, move around the classroom to observe each student's progress on the Heat Transfer Guided Notes Worksheet. At lesso end, collect the worksheets to assess student engagement and understanding of the covered content.
Lesson Summary Assessment
Vocabulary: Ask students to define and write short definitions of all the vocabulary words.
Research Examples: Ask students to research engineered and natural examples of conduction, convection and radiation. Have them write short paragraphs explaining their example finding for each.
