Lesson: Nanotechnology as a Whole

Contributed by: University of Houston, NSF GK-12 and Research Experience for Teachers (RET) Programs

A drawing of what looks like a tube made of a mesh of interlocking six-sided shapes.
A 3D axial view down the center of a carbon nanotube.
copyright
Copyright © 2010 James Hedberg. Used with permission. http://www.jameshedberg.com/scienceGraphics.php?sort=all&id=carbon-nanotube-3D-model-axial

Summary

Students are given a general overview of nanotechnology principles and applications, as well as nanomaterials engineering. Beginning with an introductory presentation, they learn about the nano-scale concept and a framework for the length scales involved in nanotechnology. Engineering applications are introduced and discussed. This prepares students to conduct the associated activity in which they relate the nano-length scale to everyday objects. At completion, students are able to identify nanotechnology applications and have a frame of reference for the second lesson of the unit.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Working in the fields of nanotechnology and engineering requires an understanding of many classical materials engineering principles and fundamentals. However, due to the very small length scale, some classical fundamentals break down and new physics is necessary to fully understand nanotechnology. It is important for students to learn that to produce such technological applications, existing science has been modified to describe and replicate unique behaviors found at the extremely small scale. In addition, because of their small size, nanoscale devices can readily interact with human cells. With access to so many areas of the body and their unique behaviors, they have the potential to detect disease and deliver treatment in ways never unimagined.

Pre-Req Knowledge

Students must be able to operate a basic scientific calculator, take measurements using measuring tapes, sticks or string, and complete unit and place value conversions.

Learning Objectives

After this lesson, students should be able to:

  • Describe ways nanotechnology is expected to influence society.
  • List key areas of research in the nanotechnology field and real-world applications.
  • Explain the length scale of nanotechnology relative to traditional length scales.
  • Convert measurements to different units.

More Curriculum Like This

Fun with Nanotechnology

Through three teacher-led demonstrations, students are shown samplers of real-world nanotechnology applications involving ferrofluids, quantum dots and gold nanoparticles. This nanomaterials engineering lesson introduces practical applications for nanotechnology and some scientific principles relate...

High School Lesson
Nanotechnology and Cancer Treatments

Students learn about the biomedical use of nanoparticles in the detection and treatment of cancer, including the use of quantum dots and lasers that heat-activate nanoparticles. They also learn about electrophoresis—a laboratory procedure that uses an electric field to move tiny particles through a ...

Statistical Analysis of Flexible Circuits

Students are introduced to the technology of flexible circuits, some applications and the photolithography fabrication process. They are challenged to determine if the fabrication process results in a change in the circuit dimensions since, as circuits get smaller and smaller (nano-circuits), this c...

Quantum Dots and Colors

Students are introduced to the physical concept of the colors of rainbows as light energy in the form of waves with distinct wavelengths, but in a different manner than traditional kaleidoscopes. Looking at different quantum dot solutions, they make observations and measurements, and graph their dat...

High School Activity

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Communicate scientific and technical information about why the molecular-level structure is important in the functioning of designed materials. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Research and development is a specific problem-solving approach that is used intensively in business and industry to prepare devices and systems for the marketplace. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Matter and energy. The student knows that matter is composed of atoms and has chemical and physical properties. The student is expected to: (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • investigate and describe applications of Newton's law of inertia, law of force and acceleration, and law of action-reaction such as in vehicle restraints, sports activities, amusement park rides, Earth's tectonic activities, and rocket launches. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Science concepts. The student knows concepts of force and motion evident in everyday life. The student is expected to: (Grades 9 - 10) Details... View more aligned curriculum... Do you agree with this alignment?
  • relate the physical and chemical behavior of an element, including bonding and classification, to its placement on the Periodic Table; and (Grades 9 - 10) Details... View more aligned curriculum... Do you agree with this alignment?
  • relate chemical properties of substances to the arrangement of their atoms or molecules; (Grades 9 - 10) Details... View more aligned curriculum... Do you agree with this alignment?
  • Science concepts. The student knows that relationships exist between the structure and properties of matter. The student is expected to: (Grades 9 - 10) Details... View more aligned curriculum... Do you agree with this alignment?
  • explore technology applications of atomic, nuclear, and quantum phenomena such as nanotechnology, radiation therapy, diagnostic imaging, and nuclear power. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • develop and interpret free-body force diagrams; and (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • collect data and make measurements with accuracy and precision; (Grades 10 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • express and manipulate chemical quantities using scientific conventions and mathematical procedures, including dimensional analysis, scientific notation, and significant figures; (Grades 10 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
  • Science concepts. The student knows how atoms form ionic, metallic, and covalent bonds. The student is expected to: (Grades 10 - 12) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

(Be ready to show students the attached 21-slide Introduction to Nanotechnology Presentation PowerPoint file. In advance of class, make sure to download some of the PowerPoint images into the slides; see notes in the PowerPoint file. Ask students the following questions to stimulate their thinking about the topic of nanotechnology. Survey students' knowledge prior to giving the attached presentation. Expect the introduction and presentation to not exceed 25 minutes.)

What is nanotechnology? (Listen to student ideas and definitions.) Nanotechnology' is the engineering of functional systems at the molecular scale. How small is that!? Nanotechnology refers to the projected ability to construct items from "the bottom up," using techniques and tools being developed today to make complete, highly advanced products.

What types of technologies and goods (products, services) do you think nanotechnology is a part of? (Listen to student suggestions. Make a list on the board.) Examples: Car bumpers (nanocomposites), sporting goods (golf clubs, tennis rackets), quantum dots (optical beacons), cancer treatment, antibacterial dressings, photovoltaic devices (solar cells), sunscreens (similar to solar cells; want to absorb UV light), protein tracking, stain-repellant fabrics, rocket propellants, synthetic bone, organic light-emitting diodes (telephone and radio screens), nanostructured materials for engineering applications, nanocatalysts, filters.

(Proceed to show students the attached PowerPoint presentation.)

Lesson Background and Concepts for Teachers

Nanotechnology is a rapidly growing market that is impacting all facets of society through consumer products, energy solutions, and biochemical and medical solutions. Market research indicates that by 2015, nanotechnology goods are expected to gross $2.5 trillion. This substantial amount of growth over a short period of time is expected to stimulate demand for more material science experts. Since 2006, the number of products that include nanotechnologies, or at least some form (nanoparticles), have nearly quadrupled and continues to increase. This includes breakthroughs in medical treatments and renewable energy technologies. Most notable are cancer treatment methods with an emphasis on gold nanoshells; clinical trials have already begun. Nanoscience, nanotechnology and the future are here.

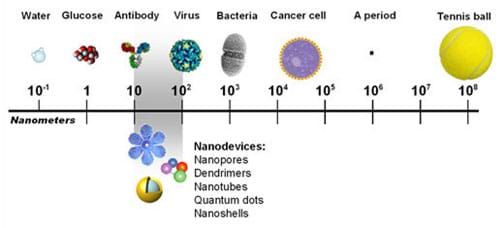

A line drawing shows examples at the nanometer scale, from 10^-1 on the left (water) to 10^8 on the far right (a tennis ball), with examples in between: glucose (1 nm), antibody (10 nm), virus (10^2 nm), bacteria (10^3), cancer cell (10^4-10^5), a period (10^6), and nanodevices (10-10^2), such as nanopores, dendrimers, nanotubes, quantum dots and nanoshells.
Nanoscale devices are 100 to 10,000 times smaller than human cells. That means that nanoscale devices smaller than 50 nanometers can easily enter most cells, while those smaller than 20 nm can move out of blood vessels as they circulate through the body.
copyright
Copyright © National Cancer Institute http://nano.cancer.gov/learn/understanding/

Nanotechnology is the engineering of functional systems at the molecular scale. While these materials have been around for decades, only recently—because of our improved capability to see at that scale—have they received so much attention. However, traditional material science and physics cannot explain, nor see, phenomena that occur at their tiny scale. With the birth of quantum mechanics and electron microscopes, engineers are able to model, predict and visually design specific material behaviors at those length scales. Nano materials are unique because of the relative size compared to the atomic scale. How small? The thickness of one sheet of loose-leaf notebook paper is equivalent to ~100,000 nm. This is extremely small and because of this relative size comparison, new interactions start occurring. All this is meaningless if one cannot visualize or comprehend how small the nano scale is in comparison to tangible, familiar objects. To start envisioning this scale, one nanometer is 1 millionth the size of a SkittleTM candy.

Note: The attached PowerPoint presentation provides information on topics such as: What is nanotechnology? What does nano really mean? and How old is nanotechnology? Other topics in the presentation include: types of nano phenomena, single-walled carbon nanotubes, SWNT properties and applications, the world's smallest radio, quantum dots and applications; ferrofluids (magnetic fluids) and applications, nano shells, gold nanoshell synthesis, nanoshell applications, misconceptions about nanotechnology, and consumer uses and projections.

Vocabulary/Definitions

crystalline: A solid with a periodic arrangement of atoms that make-up crystals.

engineer: A person who applies her/his understanding of science and math to creating things for the benefit of humanity and our world.

nanometer: Length measurement that is equal to 1 x 10^-9m.

Associated Activities

  • What is a Nanometer? - Students gain a simple reference framework to the nano-size length scale by measuring everyday objects and converting their length units to nanometers. Then they apply this understanding to the provided length data for objects too small to measure, such as a human hair and a flea, further cementing a comparative insight to the nanotechnology scale.

Attachments

Assessment

Opening Questions: Survey students' knowledge about nanotechnology by asking them the following questions before showing the attached presentation. Listen to student ideas, definitions and suggestions. See the Introduction/Motivation section for discussion points and answers.

  • What is nanotechnology?
  • What types of technologies and goods (products, services) do you think nanotechnology is a part of?

Closing Questions: At lesson conclusion, ask students to take five minutes and write out and hand in their own answers to the following questions. Review their answers to gauge their comprehension of the material presented.

  • What is nanotechnology?
  • What are some example products and technologies that take advantage of nanotechnology?
