# Hands-on ActivityStraw Bridges

### Quick Look

Time Required: 45 minutes

Expendable Cost/Group: US \$1.00

Group Size: 2

Activity Dependency: None

Associated Informal Learning Activity: Straw Bridges

Subject Areas: Physical Science

NGSS Performance Expectations:

 MS-ETS1-1 MS-ETS1-2

### Summary

Working as engineering teams, students design and create model beam bridges using plastic drinking straws and tape as their construction materials. Their goal is to build the strongest bridge with a truss pattern of their own design, while meeting the design criteria and constraints. They experiment with different geometric shapes and determine how shapes affect the strength of materials. Let the competition begin!
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

### Engineering Connection

Beam bridges are the most common type of bridge designed by engineers and relatively easy to imagine and build. Yet, with truss designs, the possibilities are unlimited. To design bridges, engineers perform careful analysis of bridge geometries and the anticipated applied loads so they can determine the exact place of the reaction forces. Engineers also consider the most effective materials to achieve a balance of tension and compression. Engineers determine the bridge type, design and materials; analyze site conditions, geologic and environmental factors; and establish detailed design plans and budget/funding schedules.

### Learning Objectives

After this activity, students should be able to:

• Describe and design model truss bridges.
• Identify effective geometric shapes used in bridge design.
• Identify several factors that engineers consider when designing bridges.

### Educational Standards Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards. All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org). In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

###### NGSS: Next Generation Science Standards - Science
NGSS Performance Expectation

MS-ETS1-1. Define the criteria and constraints of a design problem with sufficient precision to ensure a successful solution, taking into account relevant scientific principles and potential impacts on people and the natural environment that may limit possible solutions. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Define a design problem that can be solved through the development of an object, tool, process or system and includes multiple criteria and constraints, including scientific knowledge that may limit possible solutions.

Alignment agreement:

The more precisely a design task's criteria and constraints can be defined, the more likely it is that the designed solution will be successful. Specification of constraints includes consideration of scientific principles and other relevant knowledge that is likely to limit possible solutions.

Alignment agreement:

All human activity draws on natural resources and has both short and long-term consequences, positive as well as negative, for the health of people and the natural environment.

Alignment agreement:

The uses of technologies and any limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions.

Alignment agreement:

NGSS Performance Expectation

MS-ETS1-2. Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Evaluate competing design solutions based on jointly developed and agreed-upon design criteria.

Alignment agreement:

There are systematic processes for evaluating solutions with respect to how well they meet the criteria and constraints of a problem.

Alignment agreement:

###### Common Core State Standards - Math
• Fluently add, subtract, multiply, and divide multi-digit decimals using the standard algorithm for each operation. (Grade 6) More Details

Do you agree with this alignment?

• Describing the nature of the attribute under investigation, including how it was measured and its units of measurement. (Grade 6) More Details

Do you agree with this alignment?

###### International Technology and Engineering Educators Association - Technology
• Students will develop an understanding of engineering design. (Grades K - 12) More Details

Do you agree with this alignment?

• Students will develop an understanding of the attributes of design. (Grades K - 12) More Details

Do you agree with this alignment?

• Evaluate designs based on criteria, constraints, and standards. (Grades 3 - 5) More Details

Do you agree with this alignment?

• Structures rest on a foundation. (Grades 6 - 8) More Details

Do you agree with this alignment?

• The selection of designs for structures is based on factors such as building laws and codes, style, convenience, cost, climate, and function. (Grades 6 - 8) More Details

Do you agree with this alignment?

• Requirements for design are made up of criteria and constraints. (Grades 6 - 8) More Details

Do you agree with this alignment?

###### State Standards
• Fluently add, subtract, multiply, and divide multidigit decimals using standard algorithms for each operation. (Grade 6) More Details

Do you agree with this alignment?

• Direct and indirect measurement can be used to describe and make comparisons. (Grade 8) More Details

Do you agree with this alignment?

• Predict and evaluate the movement of an object by examining the forces applied to it (Grade 8) More Details

Do you agree with this alignment?

Suggest an alignment not listed above

### Materials List

Each group needs:

• 20 plastic drinking straws (not the bendy type)
• scotch tape
• scissors
• measuring stick or ruler (or one for the class to share)

For the entire class to share:

• small paper cup
• 200-300 pennies (to use as weight)
• wooden support structure (or use two desks)
• balance (for weighing, or count the pennies instead of weighing)

To make the wooden support structure (see Figure 5; optional; may use two desks instead):

• two 7-inch (18-cm) pieces of 2 x 4 wood (for bridge abutments; use scrap 2 x 4s)
• 7 x 13-inch (18 x 33-cm) piece of .25-inch (.6-cm) thick wood (for water base between abutments)
• hammer and nails
• (optional) blue paint for the base of the support structure, to represent water under the bridge

Finished dimensions of the wooden support structure (optional; may use two same-height desks instead). Dimensions may vary from those below, but these particular dimensions can be made by using scrap 2 x 4s. The most important dimension is the inside length or span. The total length should allow for enough space to place the bridge on the "abutments."

• inside length "span" = 10 inches (25 cm)
• total length (span plus two abutments) = 13 inches (33 cm)
• abutment height = 3.5 inches (9 cm)
• abutment width = 7 inches (18 cm)

### Introduction/Motivation

After the Industrial Revolution, bridges became more and more sophisticated as iron and steel became more commonly available. By using iron and steel, engineers could design bridges capable of supporting larger loads and spanning greater distances, making it possible to link cities and communities through shorter, more direct routes and crossing obstacles such as waterways or other natural features that had previously blocked passage. Sometimes we take it for granted that bridges provide important links between places. They enable us to get to resources, conduct commerce, travel and visit other people. The design of bridges is important to the transportation networks we depend upon.

We know there are many different types of bridges. Who can name a type of bridge? (Answers include: Beam, truss, arch, suspension, and cable-stayed.) What makes a bridge a beam bridge? (Review these key points: A beam bridge is usually a simple structure made of horizontal, rigid beams. The beam ends rest on two piers or columns. The beam weight [and any other load] is supported by the columns or piers.) Where on a beam do the forces act? (Review these key points: Compressive forces act on the top portion of the beam and bridge deck, shortening these two elements. Tensile forces act on the bottom portion of the beam, stretching this element.)

Beam bridges are the most common type of bridges, and include truss bridges. Truss bridges distribute forces differently than other beam bridges and are often used for heavy car and railroad traffic. In a truss bridge, the beams are substituted by simple trusses, or triangular units, that use fewer materials and are simple to build.

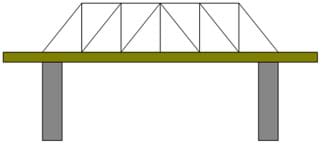

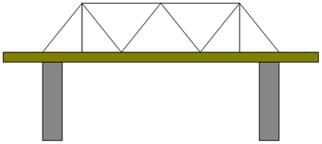

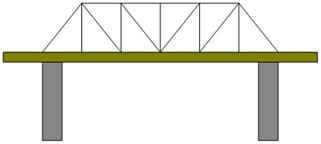

Truss bridge construction rapidly developed during the Industrial Revolution; they were first made of wood, then of iron and finally of steel. During this time, different truss patterns also made great advances. Many truss systems originated in the mid-1800s are still in use today. The Howe Truss, one of the more popular designs, was patented by William Howe in 1840. His innovation was his use of vertical supports in addition to diagonal supports (see Figure 1). The combination of diagonal and vertical members created impressive strength over long spans; this made the truss design ideal for railroad bridges. Howe's truss was similar to the existing Kingpost truss pattern. However, he used iron for the vertical supports and wood for the diagonal supports. Although iron and wood are not used as much today in modern bridges, the Howe Truss pattern is still widely used. See Figures 2-4 for other truss patterns.

Today, we are going to act as teams of engineers making bridge models. We have been hired by a city to create a bridge to cross one of the local rivers. However, the city does not want the bridge to affect the fish population in the river below it. Engineers always consider the design objective when creating models. Our design objective is to make a bridge that spans the river (scaled down to a distance of 10 inches [25 cm], supports the most weight for the cars that will pass over it, and does not disturb the river's fish. To simulate the load of the cars, our bridge must have a place to securely hold a small cup in the center of the span. To demonstrate environmental limitations on the design, no part of the bridge may touch the "water" (or bottom of the wooden support structure) and the bridge cannot be taped to the wooden support structure. Engineers often have many design constraints or limitations that are part of their job assignments. Today, our design constraints not only include the environmental and weight constraints, but also limited budget and materials using straws and tape as our construction materials.

### Procedure

Before the Activity

• For bridge testing, make a wooden support structure (see Figure 5; optional), or place two desks ~10 inches (25 cm) apart.

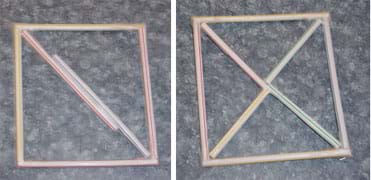

• Gather materials and make example square and triangle shapes with tape and straws as shown in Figures 6 and 7.
• Divide the class into groups of two students each.

With the Students

1. Discuss truss bridges with students. Ask students to vote by a show of hands to the following question, "Which shape is more stable, triangles or squares?" Tally their responses and write the totals on the classroom board. Explain with visual demonstrations that squares are less stable than triangles. Do this by showing example straw shapes similar to those in Figures 6 and 7. Stand the shapes up on a desk and push down on the top of them. With very little force applied, the open square shape twists, while the square shape composed of inner triangles withstands much more force.
1. To each team, pass out 20 straws, scotch tape, scissors and a ruler. Remember, you are teams of engineers making model bridges using straws and tape as your construction materials. Think carefully about what your design will look like. The design objective is to make a bridge that spans the river and supports the most weight. Your bridge design must span a distance of 10 inches (25 cm), which means that the bridge must measure longer than that so it can rest on the abutments on each side of the river. Your bridge must have a place to securely hold a small cup in the center of the span. When we test your bridge, pennies will be added to the cup until the bridge collapses. That amount of pennies and its cup will be weighed. Other design constraints to consider are that no part of the bridge may touch the "water" (or bottom of the wooden support structure) and the bridge cannot be taped to the wooden support structure. Also, the materials are limited. While you can cut your straws to any length you want, you will not be given any additional (or replacement) straws even if you accidentally cut them to lengths you don't want. So, think, sketch and measure before you cut. Another point to make: A bundle of straws taped together does not satisfy the "spirit" of this bridge-building activity. However, it is not necessary to have bridges look as if small cars could go over them. If necessary, show students example truss designs (see Figures 1-4) as examples of the approach to take (not to copy).

1. Give the student teams time to create their bridges. Give students time to brainstorm ideas, draw sketches, and make plans and calculations before doing any cutting and taping with their limited number of straws.

1. Before strength testing the bridges, ask each team: Predict how much weight you think will make your bridge collapse. Record predictions on the board. Place each bridge on the wooden support structure (see Figure 8). Position a small paper cup on the bridge at the center of the span; do not place the cup at any other location. Gradually fill the cup with pennies until the bridge collapses or the cup falls off (see Figure 9). Weigh the cup and the pennies on the balance. Make a note of this weight, and record it on the board next to its prediction. Repeat to test all bridges. Note, it may be helpful to add a lot of pennies quickly at first until it appears that the bridge is beginning to fail. At that point, add fewer pennies at a time, more carefully and slowly. The winning bridge design is the one that supports the most weight, while meeting the design criteria and constraints.

1. Conclude by leading a class discussion of the bridge strength testing results. How would they improve their bridge design? Have students from each engineering team describe what they would do to make their bridges stronger.

### Vocabulary/Definitions

abutment: A mass, as of masonry, receiving the arch, beam, truss, etc., at each end of a bridge.

beam: A long, rigid, horizontal support member of a structure.

beam bridge: A bridge that consists of beams supported by columns (piers, towers).

column: A long, rigid, vertical (upright) support member of a structure.

compression: A pushing force that tends to shorten objects.

deck: The "top" of the bridge on which we drive or walk.

design: To form or conceive in the mind. To make drawings, sketches or plans for a work. To design a new product. To design an improved process.

engineer: A person who applies their understanding of science and mathematics to creating things for the benefit of humanity and our world.

model: (noun) A representation of something, sometimes on a smaller scale. (verb) To make or construct something to help visualize or learn about something else.

span: The length of a bridge between two piers.

tension: A pulling or stretching force that tends to lengthen objects.

truss: A structural frame based on the geometric rigidity of the triangle and composed of straight members.

### Assessment

Pre-Activity Assessment

Voting & Demo: Ask students to vote by a show of hands their opinions to the following question. Tally the votes and write the totals on the classroom board.

• Which shape is more stable: triangles or squares? (Explain with visual demonstrations that squares are less stable than triangles. Stand some example tape and straw shapes [Figures 6 and 7] on a desk and push down on the top of them. With very little force applied, the empty square shape twists, while the square shape composed of inner triangles withstands much more force.)

Activity Embedded Assessment

Prediction: Before testing, ask teams to predict how much weight will collapse their bridges. Record predictions on the board.

Post-Activity Assessment

Re-Engineering: Ask students how they might improve their bridge designs, and have them sketch or test their ideas.

### Safety Issues

Remind students of scissor safety rules.

### Troubleshooting Tips

Use plastic straws that are not the flexible or "bendy neck" type. If only flexible type straws are available, cut off the straw ends that contain the flexible sections. Since this reduces the straw length, give students 25 straws per group.

Using a balance to calculate the weight of the pennies in the cup is a quick method to determine how much weight each straw bridge held before it collapsed. If a balance is not available, count the number of pennies for weight comparison.

If rulers are not available, measure the span by marking its width on another piece of paper as a handy reference. Or, explain how students can obtain simple measurements using full sheets of copy paper (8 ½ x 11 inches). For example, with a 10-inch span, it would be desirable to make the bridge about 11 inches or equal to the longer dimension of the paper.

### Activity Extensions

Ask students if they know about the engineering design process. It is the design, build and test loop used by engineers around the world. The steps of the design process include: 1) define the problem, 2) come up with ideas (brainstorming), 3) select the most promising design, 4) communicate the design, 5) create and test the design, and 6) evaluate and revise the design. Have students reflect upon the bridge-making activity and list what they did for each step of the design process.

Truss patterns are used for more than bridge design. Ask students to note all the real-world applications in which they see truss systems used during one week. Possible examples: the structural members found in roofs (look up into your garage or basement), floors, ceilings and construction of other structures, plus ramps, radio towers, crane arms, and components of other types of bridges. Even a geodesic dome is considered a truss in the shape of a sphere. Can you see triangle geometry in the shape of a bicycle frame? Have students report back to class to share their findings.

### Activity Scaling

• For lower grades, as students design and build straw bridges to span 10 inches (25 cm), permit them to place intermediate supports in the "water."
• For higher grades, have students design and build straw bridges to span a distance of 20 inches (50 cm) using the same amount of material and no intermediate supports in the "water."
