Hands-on Activity Shades of Gray
(water)

Quick Look

Grade Level: 5 (4-6)

Time Required: 45 minutes

Expendable Cost/Group: US $0.10

This activity also uses some non-expendable (reusable) items; see the Materials List for details.

Group Size: 3

Activity Dependency: None

Subject Areas: Measurement

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
5-ESS3-1
MS-ESS3-3

Summary

Students are introduced to the concepts of graywater and water reuse within households. They calculate the amount of used water a family generates in one day and use a model of home plumbing to find out how much graywater is produced in homes every day. They graph their results and discuss energy efficiency implications. Students are then challenged to find ways to reduce water use within the home.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

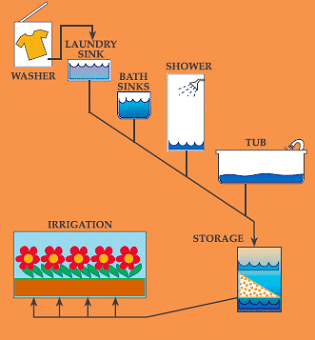

A diagram shows how water travels from a clothes washer to a laundry sink, bath sink, tub/shower to a storage tank and finally to a garden for irrigation.
Engineers investigate the graywater cycle to increase household water availability.
copyright
Copyright © City of Tuscon AZ http://cms3.tucsonaz.gov/water/greywater

Engineering Connection

Many engineers are concerned with efficiency. In the case of our municipal water supplies, engineers design ways for people to use resources more efficiently. To help households use less water, engineers have come up with solutions such as low-flow fixtures that get used every day, helping with water conservation. Engineers also investigate ways to improve the water efficiency in homes, such as using treated graywater to flush toilets. They also design treatment systems to remove the contaminants in graywater so it is safe for public use.

Learning Objectives

After this activity, students should be able to:

  • Explain the difference between potable and non-potable water.
  • Graph household water usage.
  • Make recommendations of ways to reduce freshwater use in households.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

5-ESS3-1. Obtain and combine information about ways individual communities use science ideas to protect the Earth's resources and environment. (Grade 5)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Obtain and combine information from books and/or other reliable media to explain phenomena or solutions to a design problem.

Alignment agreement:

Human activities in agriculture, industry, and everyday life have had major effects on the land, vegetation, streams, ocean, air, and even outer space. But individuals and communities are doing things to help protect Earth's resources and environments.

Alignment agreement:

A system can be described in terms of its components and their interactions.

Alignment agreement:

Science findings are limited to questions that can be answered with empirical evidence.

Alignment agreement:

NGSS Performance Expectation

MS-ESS3-3. Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Apply scientific principles to design an object, tool, process or system.

Alignment agreement:

Human activities have significantly altered the biosphere, sometimes damaging or destroying natural habitats and causing the extinction of other species. But changes to Earth's environments can have different impacts (negative and positive) for different living things.

Alignment agreement:

Relationships can be classified as causal or correlational, and correlation does not necessarily imply causation.

Alignment agreement:

The uses of technologies and any limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions. Thus technology use varies from region to region and over time.

Alignment agreement:

  • Draw a scaled picture graph and a scaled bar graph to represent a data set with several categories. Solve one- and two-step "how many more" and "how many less" problems using information presented in scaled bar graphs. (Grade 3) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Use the four operations to solve word problems involving distances, intervals of time, liquid volumes, masses of objects, and money, including problems involving simple fractions or decimals, and problems that require expressing measurements given in a larger unit in terms of a smaller unit. Represent measurement quantities using diagrams such as number line diagrams that feature a measurement scale. (Grade 4) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Compare how things found in nature differ from things that are human-made, noting differences and similarities in how they are produced and used. (Grades 3 - 5) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Develop innovative products and systems that solve problems and extend capabilities based on individual or collective needs and wants. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Use the four operations with whole numbers to solve problems. (Grade 4) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Display numerical data in plots on a number line, including dot plots, histograms, and box plots. (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Earth and Sun provide a diversity of renewable and nonrenewable resources (Grade 5) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Water on Earth is distributed and circulated through oceans, glaciers, rivers, ground water, and the atmosphere (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Describe where water goes after it is used in houses or buildings (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Earth's natural resources provide the foundation for human society's physical needs. Many natural resources are nonrenewable on human timescales, while others can be renewed or recycled (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Use direct and indirect evidence to determine the types of resources and their applications used in communities (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

To make a household water fixtures use setup (see Figure 1, which the teacher constructs) for one group:

  • shoebox (or any similarly-shaped box to support six funnels)
  • (optional) 8 Popsicle sticks (to make shoebox more sturdy)
  • (optional) duct tape (to make shoebox more sturdy)
  • 6 funnels
  • plastic tubing that fits snugly on the ends of the funnels
  • 2 large measuring cups marked in ml
  • marker
  • masking tape
  • scissors
  • box cutter

Each group also needs:

  • 1 medium-sized cup or beaker to hold and pour ≤ 100 ml water
  • graduated cylinder or something to measure ≤ 100 ml
  • colored pencils, markers or crayons (for coloring bar graphs)
  • Shades of Gray(water) Worksheet, one per student

To share with the entire class:

  • pitcher of water
  • 1 container of liquid food coloring
  • sponge/paper towels, for any clean-up needed

Note: Plan on each initial household water fixtures use setup costing ~$3 per group, and then about 10¢ each time you run the activity again because you are reusing the shoebox setup.

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/cub_humanwatercycle_lesson01_activity1] to print or download.

Pre-Req Knowledge

Before this activity, present to students the Human Water Cycle lesson, which explains how people obtain, treat and dispose of water, and helps students differentiate between graywater and blackwater in household water use.

Introduction/Motivation

Where are some places that we use water in our homes? (Pause and wait for answers, such as bathtubs, kitchen sinks, washing machines.) Do you every think of how much water we use everyday inside? And it adds up. A family of four can use almost 90,000 gallons of water per year!

A three-column table lists household fixtures, their water use in gallons per person per day, and the percent of the total water use by each fixture. Baths use 1.5 gallons of water per person and account for 3% of total water use. Clothes washers: 15 gallons per person, 25 %. Dish washers: 1 gallon per person, 2%. Faucets: 11 gallons per person, 18%. Showers: 12 gallons per person, 20%. Toilets: 19 gallons per person, 32%. The six fixtures use a total of 59.5 gallons per person per day, which accounts for 100% of total water use.
Table 1: Typical household water use in terms of gallons per person per day.
copyright
Copyright © (data source) James P. Heaney, et al., Boulder Community Network http://bcn.boulder.co.us/basin/local/heaney.html

If we look at how much water we use in each fixture, or device that uses drinking water, we can see that the highest use is for toilet flushing (show students Table 1, or write its information on the classroom board). Do you think it is kind of weird (wasteful) that we use nice, clean water just to empty our toilets? Engineers call drinking water "potable water," and they call water that is still clean but is not used for drinking by the name, "non-potable water." Flushing a toilet can be done using non-potable water because we do not drink water from the toilet bowl.

Due to many reasons, communities often experience a shortage of treated, clean and safe water. This means that engineers have to think of ways for those communities to reduce the use of treated water in households so enough is available. One way to do this is to use graywater, or used water from showers, sinks and clothes washers, to flush our toilets. Treated graywater is non-potable water and can be used in some household fixtures. We would not want to wash our dishes or our bodies in graywater, or drink graywater, but it is fine for flushing toilets.

Another way we can use less municipal water is to install low-flow fixtures in houses. Low-flow fixtures are designed to use less water than other models of the same fixtures. A low-flow faucet on a bathroom sink still allows enough water to come through for washing dirt off your hands and brushing teeth. By updating to low-flow fixtures, a household can reduce its yearly water usage by 35%.

Today we are going to act like engineers and examine how water is used in homes. We will think about which type of water could be used again and make recommendations for the family for reducing their household water use.

Procedure

Background

Students model how water is used in a home, based on typical usage statistics and various family sizes. The shoebox-based structure contains funnels to represent various plumbing fixtures found in a house, such as bathtubs and faucets. After making calculations, students measure out scaled amounts of water into each funnel and then see which water is classified as blackwater and which is considered graywater.

Before the Activity

Photo shows an open shoebox on its side with two large measuring cups place side-by-side inside it, one labeled blackwater and the other labeled graywater. Six funnels poke through the top shoebox wall, labeled: bath, clothes washer, shower, dishwasher, faucet and toilet. Via clear plastic tubing, the toilet funnel drains into the blackwater cup. Via tubing, the rest of the funnels drain into the graywater cup.
Figure 1: Example household water fixtures use setup.
copyright
Copyright © 2012 Katie Spahr, College of Engineering, University of Colorado Boulder

With the Students

  1. Divide the class into groups of three students each.
  2. Hand out the worksheets.
  3. Assign each group a family size from two to eight people, and tell them they are looking at how much water this family uses every day. Have students make calculations to complete the first two worksheets questions, based on their family size numbers.
  4. Explain how the model represents various plumbing fixtures found in a house. This is a way to model a household's water fixtures use. Engineers often use models to help them understand projects they are working on.
  5. For each fixture, have students measure into a cup or beaker the scaled amount of water (as calculated on the worksheet), and then pour it into the correct funnel.
  6. Expect students to notice that all the graywater sources go into one measuring cup, and the blackwater goes into the other measuring cup and appears colored (due to the food dye).
  7. Tell students that the clear water represents non-potable water and can be used again, and that the colored water represents blackwater and cannot be used again. Have students make observations about where their water went and record them on the worksheets (question 6).
  8. Ask students the following questions to further their comprehension:
  • Which cup has more water? (Answer: The graywater cup.)
  • What kind of things might be in the clear water, assuming that the water was used in a shower or sink and then went down the drain? (Answer: Soap, hair, grit, dirt, food particles, anything that goes down a drain.)
  • In which of the fixtures could the non-potable (clear water) be used in again? (Answer: In the toilet for flushing.)
  1. Have students measure how much graywater was produced (the clear water) and calculate how many times that amount of graywater could flush a toilet (worksheet question 7).
  2. Have students finish their worksheets and color in their bar charts. Collect the worksheets.
  3. Conclude with a class discussion, sharing and comparing results and conclusions. Ask the Investigating Questions.
  4. Assign the post-activity assessments, as described in the Assessment section.

Vocabulary/Definitions

blackwater: Used water that has come into contact with human waste. Blackwater cannot be easily (that is, safely) reused at the household level and should be sent to the sewer system and wastewater treatment plant.

graywater: Used water from showers, sinks, baths, dishwashers and clothes washers. Since graywater is not contaminated with human waste, it can be used again before it goes to the sewer system.

low-flow fixtures: Re-designed faucets, showerheads and water-using appliances that use less water than older models.

non-potable water: Water that is treated not quite to drinking water standards, but can be used in situations in which people do not have direct contact with the water, such as for flushing toilets and irrigation.

potable water: Water that is treated to drinking water standards and can be consumed.

water efficiency: The concept of using water resources, from wastewater to water from natural water bodies, in the most efficient manner so as to minimize water waste.

water reuse: Reuse of treated wastewater. Depending on how much the wastewater is treated, water can be reused for everything from watering golf courses to augmenting drinking water supplies.

Assessment

Pre-Activity Assessment

Discussion Questions: Ask questions to get students to access prior knowledge related to the activity.

  • What is the difference between graywater and blackwater? (Answer: Graywater is used water from showers, sinks and clothes washers, whereas blackwater is used water from toilets, which has come into contact with human waste.)
  • What ways do we use water in our homes? (Answer: Open ended; possible answers: washing dishes, washing hands, cleaning, taking baths, flushing toilets, drinking, making soup.)

Activity Embedded Assessment

Worksheet: Have students make calculations and follow along with the activity on their Shades of Gray(water) Worksheet. Review their calculations, answers and graphs to gauge their mastery of the subject.

Post-Activity Assessment

Drawing and Class Discussion: On paper, have students sketch and label the household uses activity setup, making sure to indicate which household fixtures use graywater and blackwater in this simplified model of household water usage. Have them each draw an arrow to indicate where graywater can be recycled in these household fixtures.

Communicate It! Ask students to think about engineering and water efficiency. Assign them to create flyers or journal entries offering recommendations for reducing family water use.

Investigating Questions

  • Which of the fixtures used the most water? The least water? (Answer: Toilets used the most, dish washers and baths used the least.)
  • What color was the graywater in your model? (Answer: Clear)
  • What other ways can we reuse water? (Answer: Open ended, any non-potable uses, such as irrigation, are correct.)

Troubleshooting Tips

Have handy a sponge and/or paper towels to clean up any spills.

Be careful not to spill water on the shoebox too many times or the cardboard loses its structure/sturdiness.

Activity Extensions

Have students brainstorm and design water-saving fixtures (baths, showers, faucets, dishwashers, clothes washers, toilets) that use less water. Have them build prototypes with simple materials like construction paper and tape.

Activity Scaling

  • For lower grades, do the scaling and measurements for the students, but have students pour water into the funnels. As necessary, adjust the worksheet to reflect their skill level.
  • For upper grades, introduce more math, such as fixture flow rates (low-flow fixtures are 1.5 gallons/minute) and toilet flush capacity (4 gallons/flush). Have student groups construct their own activity setups.
