Hands-on Activity: Design a Net-Zero Energy Classroom

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Artist's sketch of a colorful building with modern architecture, designed to be an energy-efficient building for the Beijing Olympics Village.
Figure 1. Concept sketch of a new energy-efficient building.
copyright
Copyright © Science@Berkeley Lab http://www.lbl.gov/Science-Articles/Archive/sabl/2007/Apr/04-greenChina.html

Summary

Students create a concept design of their very own net-zero energy classroom by pasting renewable energy and energy-efficiency items into and around a pretend classroom on a sheet of paper. They learn how these items (such as solar panels, efficient lights, computers, energy meters, etc.) interact to create a learning environment that produces as much energy as it uses.

Engineering Connection

Engineers who understand how energy is used—and can create solutions to reduce energy use—in buildings are in high demand. Energy-efficient buildings are advantageous because they are more comfortable to inhabit, more environmentally-friendly and save in energy bills over the life of a building. More engineers are needed to design the next generation of buildings in our country—buildings that create as much energy as they use and conserve limited natural resources. Many schools have started to take advantage of the pleasant atmosphere, increased productivity, and cost savings associated with energy-efficient buildings by installing renewable energy systems and redesigning existing classrooms to use less energy.

Pre-Req Knowledge

Students should be familiar with the basic concept of energy, and the difference between renewable and non-renewable energy.

Learning Objectives

After this activity, students should be able to:

  • Explain how electrical energy is used in the classroom.
  • Summarize how renewable energy can be harnessed on-site and used to power a building.
  • List several ways how buildings can conserve energy and resources.

More Curriculum Like This

Introduction to Environmental Challenges in China

Through an overview of some of the environmental challenges facing the growing and evolving country of China today, students learn about the effects of indoor and outdoor air pollution that China is struggling to curb with the help of engineers and scientists.

Off the Grid

Students learn and discuss the advantages and disadvantages of renewable and non-renewable energy sources. They also learn about our nation's electric power grid and what it means for a residential home to be "off the grid."

High School Lesson
Energy Conservation

Students are introduced to the idea that energy use impacts the environment and our wallets. They discuss different types of renewable and nonrenewable energy sources, as well as the impacts of energy consumption. Through a series of activities, students understand how they use energy and how it is ...

Elementary Lesson
Passive Solar Design

Students are introduced to passive solar design for buildings — an approach that uses the sun's energy and the surrounding climate to provide natural heating and cooling. They learn about some of the disadvantages of conventional heating and cooling and how engineers incorporate passive solar design...

High School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Generate and compare multiple possible solutions to a problem based on how well each is likely to meet the criteria and constraints of the problem. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Obtain and combine information to describe that energy and fuels are derived from natural resources and their uses affect the environment. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Obtain and combine information about ways individual communities use science ideas to protect the Earth's resources and environment. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve multistep word problems posed with whole numbers and having whole-number answers using the four operations, including problems in which remainders must be interpreted. Represent these problems using equations with a letter standing for the unknown quantity. Assess the reasonableness of answers using mental computation and estimation strategies including rounding. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Use multiple resources – including print, electronic, and human – to locate information about different sources of renewable and nonrenewable energy (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group (student) needs:

Introduction/Motivation

(Use the nine-slide Net-Zero Energy Classroom Presentation, a PowerPoint® file, in conjunction with this section.)

In the U.S., buildings consume about 40% of all energy that is used. Most of this energy is produced by coal plants that create a lot of pollution and cause environmental problems.

Energy is used in buildings in a variety of ways. Can you spot a few things in this classroom that use energy? It takes energy to heat and cool buildings so that we feel comfortable. We need energy for lights so we can see. Energy is used to power computers, TVs, fans and most electrical appliances. Essentially, everything we plug into the wall uses energy. We also use energy for cooking and other everyday tasks. Can you imagine what life would be like without easy access to energy in our buildings, homes and schools?

We need the ability to produce energy, but we also need to be environmentally responsible and wisely use the energy we have. Can you imagine a building that actually generates as much energy as it uses? This is called a net-zero energy building. Homes, offices, stores and even schools can be net zero-energy buildings. Today we are going to redesign our classroom so that it is a net-zero energy classroom.

Vocabulary/Definitions

CFL: Compact fluorescent light; a bulb that uses one-quarter the amount of energy of an incandescent bulb.

efficient: A process that creates as little waste as possible.

electricity: The energy that moves through wires, which powers lights, computers, etc.

passive solar heating: Heating a space by using the sun's radiation, without using any equipment or electricity.

Procedure

Background

The first step in designing a net-zero energy building, or in our case — a classroom, is to make sure that everything that uses energy, uses it wisely and efficiently. Look around you: what do you see? Think of all the things you spot that use energy, and now think of ways that they could do it more efficiently. What are some ways we could use energy more efficiently in this classroom?

For example, we could put in compact florescent lights (CFLs), also known as the "squiggly bulbs," in all lamps and desk lights. These use one-quarter of the energy of traditional incandescent light bulbs because they do not heat up as much. In the ceiling, we could make sure that we have the most efficient florescent lighting. We can also replace lights with natural daylight. If we let natural light shine in from the outside through big windows or skylights, then we do not need to turn on as many lights in the classroom.

We can also use the light that shines in the windows to heat the classroom in the winter; this means we would not need to use the heaters as much. This is called passive solar heating. Locations that are sunny and have a colder climate, such as Colorado, are perfect for passive solar heating. To take advantage of the sun's warmth, windows need to be on the south side of a classroom because in the winter (in the Northern Hemisphere at least), the sun shines from the south. We can then put a curtain on the window or a shade above it outside to block the sun in the summer when it is higher in the sky and hotter in the classroom.

Once we are using energy wisely, we can place renewable energy technologies in our classroom to generate electricity and power our classroom. Who can name a form of renewable energy that we can harness right here at our school? Solar and wind are two very practical types of renewable energy that can be harnessed on-site and used to power anything that uses electricity. We should measure the energy in our classroom so we know exactly how much energy we are using all the time and how much we need to generate.

Lastly, we can add some other cool features to conserve water, recycle and help make our classroom sustainable in many ways. Let's get started!

Before the Activity

  • Print the Net-Zero Energy Classroom Items and cut them so that each group/student has one set. If you have shorter class periods, then it may be more practical to cut the items out in advance and presort them for each group. (Note: Use a different attachment that has all the items grouped together so that can be printed and easily cut using a paper cutter—Net-Zero Energy Classroom Items - Sorted).
  • Print the Net-Zero Energy Classroom Design Sheet, one per group/student.
  • Show the class the Net-Zero Energy Classroom Presentation, a PowerPoint® file, to explain all of the features for students to include in their net-zero energy classrooms and how they should be placed. Show the presentation in conjunction with the Introduction/Motivation content.

With the Students

1. Give each group or student a design sheet and a set of the classroom items.

2. Hand out scissors and glue sticks.

3. Direct students to place all of their classroom items inside the classroom in the locations they think would be most appropriate, and to draw in windows and other doors or lights, etc. Some common item placements:

  • Indoor: computers, lights, heater, air conditioning, digital display, recycling bins
  • Outside: compost bin, water storage tank (pipe flows from roof to tank), bike rack, energy meter (attached to side of building), solar panels (on roof), wind turbine (on roof or away from building sides)
  • Students should also draw windows in the classroom wall.

4. Have students label all items they have placed in the classroom.

5. Have students color their classroom diagrams.

6. (optional) Have students draw wires that connect the renewable energy items to the energy meter and then from the meter to the items in the classroom that use energy. (Wires go to the energy meter before going to lights and computers.) Also have them draw wires to the power lines and utility.

7. (optional) Have students include other items in their designs that might be used around the inside or outside of the classroom, including gardens, rain collected by gutters and flowing to a storage tank, bicycles or scooters, desks and chairs, etc.

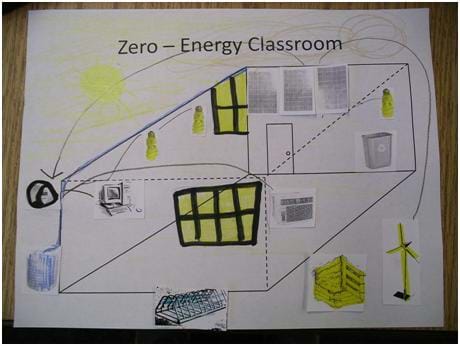

A student-made drawing of a zero-energy classroom. It includes solar panels, a wind turbine, and many energy-efficient items pasted on to a sheet of paper and colored.
Figure 2. An example student-designed zero-energy classroom project.
copyright
Copyright © 2009 William Surles, ITL Program, College of Engineering and Applied Science, University of Colorado at Boulder

Attachments

Troubleshooting Tips

Students may put things in places that don't make sense, so stroll around and observe how each student is doing and guide them as necessary. (See step #3 under Procedures for correct placement of items.)

Investigating Questions

  • What is thrown away in your classroom that could be recycled?
  • Why do we connect the solar panels and wind turbine to the energy meter before going to the lights and computer?
  • How could we store wind energy that is made at night to be used during the day?
  • What gathers more energy, wind turbines or solar panels?
  • Are there any other forms of renewable energy that you can use in you classroom?

Assessment

Pre-Activity Assessment

Brainstorming: As a class, have students engage in finding the major energy-using items in their classroom. Remind students that in brainstorming, no idea or suggestion is "silly." All ideas should be respectfully heard. Take an uncritical position, encourage wild ideas and discourage criticism of ideas. Have them raise their hands to respond. Write their ideas on the board.

Class Discussion: Ask a discussion question to get students to think about the upcoming activity. After soliciting answers, explain that these questions will be answered during the activity.

  • Ask students what they already know about solar panels and wind turbines, such as where outside they should be placed and why.
  • Have students discuss the list generated during brainstorming. Ask students to think about how any of the listed items could use energy more efficiently.

Activity Embedded Assessment

Zero-Energy Classroom Design Sheet: Give students time to place all of their classroom items on their classroom design sheets in order to design their net-zero energy classrooms. Expect students to be able to correctly place these items either inside or outside of the classroom space. If drawing wires and connections, expect students to be able to connect the classroom items correctly. Observe students' progress and ask them (individually) to explain why they are putting an item in a certain place and how it works.

Post-Activity Assessment

Homework: Direct students to take home their zero-energy classrooms, and as homework, explain to a family member how all the items work. What items are similar to those they have at home? Ask them to make a list of electricity-using appliances around their houses and make suggestions for improving the energy efficiency of any of these items.

Activity Extensions

Completing the Design: Ask students to add any of the following to their classroom designs. Ask students to explain their final designs aloud to the class or in writing. Suggest that students draw:

  • All the wiring from the solar panels and wind turbine to the meter and then from the meter to the lights, computer and air conditioning.
  • Gutters and downspouts to catch and route the water to a storage tank.
  • Themselves in the classroom.
  • A variety of different items that can be recycled next to the recycle bin.
  • The sunlight coming through the windows and the passive heating in the room.

Activity Scaling

  • For upper grades, have students add up the amount of energy each solar panel and wind turbine in their design can make. (Note: a typical solar panel may create 200 watts in full sunlight. While small wind turbine power outputs vary widely, assign the ones in this activity as creating 300 watts at a wind speed of 15 mph.) Next, have the students calculate how much energy all the items in their classroom design use. Lastly, have the students calculate how many solar panels or wind turbines are needed to completely power the classroom.
  • For more advanced students, give them different time periods of sunlight, wind and item use in the classroom for each day, and have them calculate the number of panels and turbines needed to create enough energy to power the classroom.

Additional Multimedia Support

US Green Building Council Analysis and Review of an Energy efficient High school http://leedcasestudies.usgbc.org/energy.cfm?ProjectID=672

Fossil Ridge High school wins the 2005 Colorado Renewable Energy in Buildings Award in the category for institutional buildings http://www.cres-energy.org/reba_2005_frhs.html

Fossil Ridge High School Case Study Video from RMI http://bet.rmi.org/video/case-study-videos.html

Zero-Energy Classroom built by Project FROG – Photo Tour http://www.jetsongreen.com/2008/11/project-frog-in.html

Contributors

William Surles; Malinda Schaefer Zarske; Janet Yowell
