Hands-on Activity Alloy the Way to Mars

Quick Look

Grade Level: 7 (5-7)

Time Required: 45 minutes

Expendable Cost/Group: US $6.00

Group Size: 4

Activity Dependency: None

Subject Areas: Chemistry, Physical Science, Reasoning and Proof

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
5-PS1-3

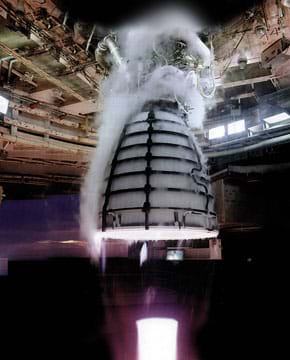

A photograph shows an engine undergoing a hot-fire test. The engine looks like a half of a 3D ellipse covered in a grid-like casing and attached at its top to a structure designed for testing. Surrounding and above the engine is a cloud-like substance, which is the condensation produced from the propellant.
The RS-25 engine of the Space Launch System that will eventually transport astronauts to Mars.
copyright
Copyright © 2013 Aerojet Rocketdyne, NASA http://www.nasa.gov/exploration/systems/sls/rs25-engine-powers-sls.html

Summary

Acting as engineering teams, students take measurements and make calculations to determine the specific strength of various alloys and then report their data to the rest of the class. Using this class data, students write data-based recommendations to NASA regarding the best alloy to use in the construction of the engine and engine turbines for the Space Launch System that will eventually be used to transport astronauts to Mars.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

Engineering design challenges often require careful materials selection. For example, what materials are best to make airplane engine turbines? For every application, engineers select the material(s) that exhibits the specific desired properties. In the case of airplane engine turbines, engineers might want to select a metal that is strong, resistant to corrosion, and hard. In this activity, students play the role of materials engineers by testing properties of given alloys and then making recommendations based on their findings.

Learning Objectives

After this activity, students should be able to:

  • Test materials in order to determine specific strength.
  • Draw conclusions about a material based on obtained data.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

5-PS1-3. Make observations and measurements to identify materials based on their properties. (Grade 5)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Make observations and measurements to produce data to serve as the basis for evidence for an explanation of a phenomenon.

Alignment agreement:

Measurements of a variety of properties can be used to identify materials. (Boundary: At this grade level, mass and weight are not distinguished, and no attempt is made to define the unseen particles or explain the atomic-scale mechanism of evaporation and condensation.)

Alignment agreement:

Standard units are used to measure and describe physical quantities such as weight, time, temperature, and volume.

Alignment agreement:

  • Students will develop abilities to assess the impact of products and systems. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Students will develop an understanding of the attributes of design. (Grades K - 12) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:



A photograph shows five squares of thin metal alloy materials of various metallic colors: grays, bronze, silver and gold.
Figure 1. Samples of five alloys.
copyright
Copyright © 2015 Janelle Orange, RET Program, College of Engineering, Michigan State University

To share with the entire class:

  • metal Slinky® (a flexible, helical spring toy), for a class demonstration
  • (optional) computer or overhead projector, to display the class data table

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/mis_alloy_lesson01_activity1] to print or download.

Pre-Req Knowledge

Students should know how to calculate density using the equation: density = mass/volume, and be able to use an electronic balance to measure mass (in grams). Students should also be able to convert measurements from a base unit to kilos.

Introduction/Motivation

In order to design an engine and engine turbines that will survive the massive forces they will encounter during the launch of the Space Launch System, we need to make sure that the materials used to build the engine meet certain criteria. You have brainstormed some ideas about the properties we want the materials to have. Let’s share some of the responses you provided for question 5 on your RS-25 article assessment. (Pause and let students share their answers. Record student ideas on the classroom board or overhead for the class to see.)

I’ve noticed that many of you repeated that the materials should be strong and lightweight. Many transportation applications require these very same properties. When engineers are looking for a material that is both strong and lightweight, they calculate the specific strength of the material. The higher the specific strength, the stronger and more lightweight the material. It appears that each of us would like to know the specific strength of the materials used to make the engine and engine turbines.

In order to understand specific strength, we need to first understand strength. Let’s think about the term “strength.” Describe what it means to you. (Pause for sharing of responses. Expected answers: Strength is how much weight a person can lift, how strong something is, etc.)

To understand the strength of a material, we need to think about how much stress the material can handle. To illustrate this, we are going to use a Slinky. As we stretch the Slinky, pay attention to when it can no longer return to its original shape. (Run a series of tests in which the Slinky is stretched and then recoils. Eventually push the Slinky beyond its capabilities so that it deforms in shape, exhibiting the limitations of its strength.) What have we learned from this demonstration? (See what students say.) We observed that the metal of the Slinky has a specific strength. This is called the ultimate tensile strength, which is the maximum amount of stress a material can sustain before breaking or failing.

When we know the ultimate tensile strength and the density of a material, we can calculate the specific strength. Next, we will enhance our initial recommendations by determining the specific strength of various alloys. Then, as if we were real-world engineers, we will use our findings to recommend the material NASA should use in the design of the RS-25 engine and engine turbines.

Procedure

Background

Specific strength can be calculated using a material’s ultimate tensile strength and density. The strength of materials refers to the amount of stress or strain that a material can sustain before deformation or fracturing occurs. Most alloy materials used in transportation and biomedical applications exhibit ductility, referring to the manner in which a material fractures. Alloys that are ductile tend to show deformation, whereas non-ductile materials are very brittle.

The ultimate tensile strength (UTS), most often referred to as tensile strength, is determined by using a universal testing machine, in which a load is applied to a material sample until failure occurs.


Before the Activity

  • Obtain alloy samples and gather other materials.
  • Make copies of the RS-25 Article and Analysis of RS-25 Article Pre-Assessment (one each per student). Make copies of the Density and Specific Strength Student Handout (one per group) and the Final Recommendations Post-Assessment (one per person or per group, depending on whether you want students to do the post-assessment individually or together).
  • Referring to the Class Data Table as an example, prepare a class data table that reflects the actual samples available for the activity, including filling in the UTS column for the samples. Create the class data table so it can be projected for the class to see (overhead transparency, PowerPoint slide, etc.); alternatively, draw it large on the classroom board or poster paper, or make paper copies to hand out.

With the Students

  1. Hand out to students the article and pre-assessment. Give them time to read the article and individually answer the pre-assessment questions.
  2. Then present to the class the Introduction/Motivation content, which includes a demonstration using a Slinky.
  3. Project the class data table so that all students can see it (or hand out paper copies). During the course of the activity, groups will fill in the missing information using data obtained during the activity, typing or writing their values into the class table.
  4. Divide the class into groups of four students each.
  5. Give each group one alloy sample and one student handout.

A photograph shows a student’s hands as he uses digital calipers to measure the depth of his assigned alloy.
Using digital calipers to measure an alloy sample.
copyright
Copyright © 2016 Janelle Orange, RET Program, College of Engineering, Michigan State University

  1. Direct the teams to work together to complete the procedures on the handout. Make the following points to the class before they get started:
    • In your teams, decide who takes on the following roles: senior quality engineer, senior engineering manager, principal aerospace engineer, and senior aerospace engineer.
    • Then individually complete the procedures for your roles, as outlined on the “Task Table” on page 2 of the handout.
    • Once you have completed the handout, record your team’s data in the class data table.
  1. Administer the post-assessment by having students (individually or in groups) examine the class data to make a recommendation for an alloy for NASA to use the RS-25 engine.

Vocabulary/Definitions

alloy: A material made by mixing two or more metallic elements, or by mixing a metal with a nonmetal. For example, bronze is a mixture of copper and tin, and steel is a mixture of iron and carbon.

brittleness: A characteristic of a substance that is hard and rigid, and breaks with smooth fractures, such as glass. A brittle material has very little or no deformation capabilities.

deformation: The changing of a material’s shape or form, without fracturing, due to the application of forces. For example, when a plastic bag is stretched and no longer retains its original shape.

density: The amount of mass a substance has in a given volume. Equation: density = mass / volume. Measured in grams per cubic centimeter (g/cm3).

ductility: A solid material’s ability to deform (stretch) under tensile stress.

fracturing: The cracking or breaking of a material when put under stress. For example, when glass is dropped to the ground and breaks apart.

specific strength: A material’s ultimate tensile strength (UTS) divided by its density. Also known as the strength-to-weight ratio. Measured in Pa/(kg/m3).

stress: The force exerted across a designated area before deformation occurs

ultimate tensile strength: The maximum amount of stress a material can sustain before breaking or failing. Measured in megapascals (MPa). Abbreviated as UTS.

Assessment

Pre-Activity Assessment

Read & Answer: Before starting the activity, give students time to individually read the RS-25 Article and answer the five questions on the Analysis of RS-25 Article Pre-Assessment. Students are asked to predict the desired properties needed to build an engine and engine turbines to sustain the launch of a NASA rocket. Students share their answers during the Introduction/Motivation content presentation.

Activity Embedded Assessment

Activity Handout: Working in teams, students determine the specific strength of a given alloy, as guided by the Density and Specific Strength Student Handout. The group data is compiled into the class data table for further comparative analysis.

Post-Activity Assessment

Written Recommendation: At activity end, have students (individually or as groups) complete the Final Recommendations Post-Assessment, in which they write letters to Ms. Jody Singer, SLS Deputy Program Manager at NASA, explaining their recommendations for which alloy to use in the construction of the RS-25 engine and engine turbines. Expect students to recommend using the material with the higher specific strength. For example, of the seven suggested alloy types, 625 nickel sample has the greatest specific strength. Ideally, expect the conclusions that students write to state that the sample with the highest specific strength be used and present data to support their reasoning.

Investigating Questions

What are the ideal properties that we want the engine material to have? (Answer: Strong and lightweight.)

Which of our tested alloys provides the most ideal engine material? (Answer: The material with the highest specific strength.)

Additional Multimedia Support

Lots of great information about NASA’s Space Launch System at: https://www.nasa.gov/exploration/systems/sls/index.html
