Hands-on Activity: Intraocular Pressure Sensor Design Challenge

Contributed by: Robotics Engineering for Better Life and Sustainable Future RET, College of Engineering, Michigan State University

Quick Look

Grade Level: 7 (7-9)

Time Required: 5 hours 45 minutes

(seven 50-minute class periods)

Expendable Cost/Group: US $0.30

Students use online web quest (free), 3D modeling app (free) and a 3D printer (or modeling clay) to design and create prototypes.

Group Size: 3

Activity Dependency:

Subject Areas: Life Science, Physical Science, Science and Technology

Attention: This activity requires the following resource:


A photograph of two young girls looking at a camera. The edges of the image have a black vignette—a loss in clarity towards the corners and sides of an image—which portrays what is seen when damage to the optic nerve has occurred due to the effects of glaucoma.
Glaucoma causes loss of peripheral vision, as indicated by the darkness surrounding the center of the image.
Copyright © Apple Valley Eye Care. Used with permission. http://aveyecare.com/photolibrary_rf_photo_of_glaucoma_vision.jpg


Acting as if they are biomedical engineers, students design and print 3D prototypes of pressure sensors that measure the pressure of the eyes of people diagnosed with glaucoma. After completing the tasks within the associated lesson, students conduct research on pressure gauges, apply their understanding of radio-frequency identification (RFID) technology and its components, iterate their designs to make improvements, and use 3D software to design and print 3D prototypes. After successful 3D printing, teams present their models to their peers. If a 3D printer is not available, use alternate fabrication materials such as modeling clay, or end the activity once the designs are complete.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Biomedical engineers rely on modeling to design and create prototypes for devices that may not yet be approved for testing. In order to prepare for the cost of manufacturing a device, careful consideration goes into the potential constraints of that device. Using various software programs, engineers design and visualize the device they wish to create in order to determine whether the future device is worth the effort, time and expense. Mirroring real-world engineers, in this activity, students play the role of engineers challenged to create intraocular pressure sensor prototypes to measure pressure within the eyes of people with glaucoma.

Learning Objectives

After this activity, students should be able to:

  • Design and 3D print an at-scale prototype of a pressure sensor.
  • Apply an understanding of radio-frequency identification (RFID) to the design of prototype pressure sensors.
  • Explain how their prototype devices use RFID technology to provide a tool to help people with glaucoma.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

MS-ETS1-1. Define the criteria and constraints of a design problem with sufficient precision to ensure a successful solution, taking into account relevant scientific principles and potential impacts on people and the natural environment that may limit possible solutions. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Define a design problem that can be solved through the development of an object, tool, process or system and includes multiple criteria and constraints, including scientific knowledge that may limit possible solutions.

Alignment agreement:

The more precisely a design task's criteria and constraints can be defined, the more likely it is that the designed solution will be successful. Specification of constraints includes consideration of scientific principles and other relevant knowledge that is likely to limit possible solutions.

Alignment agreement:

All human activity draws on natural resources and has both short and long-term consequences, positive as well as negative, for the health of people and the natural environment.

Alignment agreement:

The uses of technologies and any limitations on their use are driven by individual or societal needs, desires, and values; by the findings of scientific research; and by differences in such factors as climate, natural resources, and economic conditions.

Alignment agreement:

NGSS Performance Expectation

MS-ETS1-2. Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Evaluate competing design solutions based on jointly developed and agreed-upon design criteria.

Alignment agreement:

There are systematic processes for evaluating solutions with respect to how well they meet the criteria and constraints of a problem.

Alignment agreement:

  • Solve problems involving scale drawings of geometric figures, including computing actual lengths and areas from a scale drawing and reproducing a scale drawing at a different scale. (Grade 7) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Design is a creative planning process that leads to useful products and systems. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Requirements for design are made up of criteria and constraints. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Modeling, testing, evaluating, and modifying are used to transform ideas into practical solutions. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:

To share with the entire class:

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/mis_eyes_lesson01_activity1] to print or download.

More Curriculum Like This

These Eyes! Technologies to Measure Eye Pressure

Students learn about glaucoma—its causes, how it affects individuals and how biomedical engineers can identify factors that trigger or cause this eye disease, specifically the increase of pressure in the eye. Students sketch their own designs for a pressure-measuring eye device, prepare them to cond...

Exploring Nondestructive Evaluation Methods

Students learn about nondestructive testing, the use of the finite element method (systems of equations) and real-world impacts, and then conduct mini-activities to apply Maxwell’s equations, generate currents, create magnetic fields and solve a system of equations. They see the value of NDE and FEM...

Biosensors for Food Safety

Students learn which contaminants have the greatest health risks and how they enter the food supply. While food supply contaminants can be identified from cultures grown in labs, bioengineers are creating technologies to make the detection of contaminated food quicker, easier and more effective.

Middle School Lesson
What Is an IR Sensor?

Students learn about infrared energy and how it is used to sense the surrounding environment. They review where infrared falls on the electromagnetic spectrum and learn how infrared sensors work, as well as various ways engineers and scientists create and apply infrared technology to study science a...

High School Lesson

Pre-Req Knowledge

Ability to calculate the volume of a given object. It is strongly recommended that students complete the These Eyes! Technologies to Measure Eye Pressure associated lesson prior to beginning this activity.


You previously read about a boy named Christopher who has glaucoma. We discussed what causes glaucoma and how glaucoma can cause irreparable vision loss. To help us further understand the damage that can be caused by increased pressure in the eyes of people diagnosed with glaucoma, let's watch a short video report about Dennis Howard, an avid sailor. As you are watching, answer the questions on the handout. (Pass out the Overcoming Glaucoma: Dennis Howard's Story Handout and show on online video at http://www.cbsnews.com/videos/overcoming-glaucoma-dennis-howards-story. If necessary, play the video twice so students can check their answers. Then assign one person in each partnership as Partner A and the other as Partner B. Then continue.)

As you watched Dennis's personal story, you came to understand the impact glaucoma has on an individual's eyesight. You also learned what he has done to save the remaining eyesight. Partner As, I would like you to read to Partner B your answer to question 3. Partner Bs be prepared to report your partner's responses to the rest of the class. (Pause for student exchange and then call on a few of the Partner B students to share their partners' responses with the rest of the class).

Now, Partner Bs please tell Partner A your answer to question 5. Partner As be prepared to report your partner's responses to the rest of the class. (Pause for student exchange and then call on a few of the Partner A students to share their partners' responses with the rest of the class).

In your last responses, you told us that the pressure in Dennis's eyes had to be reduced through surgery. Raise your hand if you believe that knowing the pressure in his eyes would be helpful to him. (Pause to note the raised hands.) Raise your hand if you believe that knowing the pressure in Christopher's (the boy from the lesson's article) eyes would be helpful to him. (Pause to note the raised hands.) I see many of you believe this would be helpful. I agree with you because if Dennis and Christopher were able to identify pressure changes, they could quickly get medical help to reduce the pressure.

(Present to students the following hypothetical scenario for the engineering design challenge. The story is fictional, but gives students an opportunity to imagine what it might be like to be to be engineers involved in the research and design of medical devices.) Now, you will act as if you are biomedical engineers challenged to create prototypes of a sensor that can help Dennis and Christopher identify pressure changes in their eyes. Once you have designed and 3D-printed your prototype, you will present it to representatives from the Glaucoma Research Foundation, who are ready to award funding for progressive glaucoma research. (Students' class peers will act as foundation representatives.)

We have spent time understanding how radio-frequency identification (RFID) can support us in creating a wireless device that transmits information about pressure in the eyes. Now, we must consider the way the device will measure pressure, since this is what Christopher and Dennis would like to be able to do. In our previous discussions, you mentioned some things that we need to consider when developing a device that could measure pressure. Let's list these features and capabilities because they are our design requirements. (On the classroom board or other classroom projecting device, begin to create a list of design constraints, building off the discussion in the associated lesson. See Figure 1 for an example.)

Remember, when biomedical engineers design medical devices, they determine and define what is needed for a successful solution. Engineers call these requirements and features "criteria and constraints of the design problem." They take into consideration the relevant scientific principles, technologies and impacts on people and the natural environment.

Goal: Design a pressure sensor prototype that can monitor the eye pressure of people with glaucoma. Design requirements: The prototype device must: be wireless (use RFID), have a low mass, not require a battery, measure pressure.
Figure 1. Example design requirements.
Copyright © 2014 Janelle Orange, Michigan State University

Based on this information, we have worked together to learn about the components of RFID technology, so that we can design a wireless device that requires no batteries. Based on our current list, we still have a few more criteria that we need to meet. Let's start with the "measure pressure" requirement.

In order to understand how our device will measure pressure, we need to investigate various pressure gauges used in our everyday lives. As you are conducting this research, consider which pressure gauge would be most effective for your prototype pressure sensor design. Remember: This pressure sensor must measure the pressure in the eyes, so it must fit in the eyes! Before you begin, let's add these requirements to our list (Figure 2). As you are conducting your research, refer back to this list.

The design requirements from Figure 1 have been amended to add "be small enough to fit in an eye," and change "measure pressure" to "measure eye pressure."
Figure 2. Example design requirements, with a little more detail.
Copyright © 2014 Janelle Orange, Michigan State University

(Guided by the Under Pressure WebQuest Worksheet, direct student pairs to conduct research by completing the Pressure WebQuest found at http://underpressurewebquest.weebly.com/, which supports their research and prepares them for the next task.)

Now that you have had time to research pressure gauges, take out your homework from last night (from the associated lesson). Work with your partner (or small group) to evaluate each other's designs. Use the Peer Evaluation: Evaluating Preliminary Designs Checklist to guide you through this process.

Added to the design requirements list in Figure 2 is a new requirement: "pressure gauge must push against a resonator."
Figure 3. Example design requirements, with a new requirement added.
Copyright © 2014 Janelle Orange, Michigan State University

As you are working, notice that the checklist has you check for the design requirements that we have developed as a class. At the end of the web quest you were introduced to new requirements. Let's add these to our original list (see Figure 3). Please refer back to this list as you are working throughout the activity.


Before the Activity

  • Gather materials and make copies of Overcoming Glaucoma: Dennis Howard's Story Handout, Under Pressure WebQuest Worksheet, Peer Evaluation: Evaluating Preliminary Designs Checklist, Peer Evaluation: THE TEST? Will It Fit?, Teacher Evaluation: Under Pressure Prototype Presentation Grading Rubric, Peer Evaluation: Potential Projects to Fund Analysis.
  • For Day 1, be prepared to show the class a four-minute online CBS news video, Overcoming Glaucoma: Dennis Howard's Story. Also consider how you will group students for the introduction when they work in pairs to discuss a short video clip and conduct research. To complete the introduction, assign one person in the partnership as Partner A and the other as Partner B. Also make available laptops or computers for students to conduct an Internet web quest. See the video and web quest links in the Additional Multimedia Support section.
  • For Day 2, practice using tinkercad.com and your 3D printer to make a prototype of an RFID reader (see Figure 4) that all students will reference in their presentations. Also determine the prototype size limitations from the 3D printer because prototype volumes must be less than or equal to the maximum printing volume. The limitation depends on the amount (volume) of filament the teacher decides to provide for each group. For example, when this activity was classroom-tested, the printing volume constraint was 22.5 cubic centimeters (cm3) per device, so students had to estimate their devices' volumes and adjust their designs to make sure they did not exceed that constraint.
    A photograph shows a thin blue square plastic piece that looks like a calculator. Raised on the surface is a short and wide rectangle with the numbers 1-9 below in three rows and the characters "@ 0 *" on the fourth row.
    Figure 4. An example 3D print of an RFID reader prototype.
    Copyright © 2015 Janelle Orange, Michigan State University
  • For Day 4, decide on presentation materials and/or format to make available or assign student teams to use, such as. PowerPoint®, Prezi and/or poster board.

With the Students—Day 1

Student goal: Determine an appropriate pressure gauge for an intraocular pressure sensor.

With the class, present the Introduction/Motivation content during which students:

  1. Complete a handout while watching a short video and then work in pairs to discuss what they learned.
  2. Are introduced to the engineering design challenge and a hypothetical scenario in which they act as biomedical engineers designing prototype devices.
  3. Are guided in developing a list of design requirements (constraints) for the design project.
  4. Working in pairs, complete an Internet web quest to learn about pressure gauges and determine one that is suitable for their pressure sensor prototypes.
  5. Peer-evaluate each other's prototype designs (the homework assignment from the associated lesson) using a checklist (see Figure 5) to guide their evaluations to determine the strengths and weaknesses of the designs.
    A scan of a paper form containing an 11-row table with "yes" and "no" columns. The 11 rows contain questions, such as "Does the design include an RFID tag?" Hand-drawn check marks fill the "yes" and "no" columns, mostly in the "no" column. A hand-written recommendation at the bottom reads: "I recommend that you write your name on it, make it comfortable for the eye and add an antenna and an RFID tag, also an external reader. Describe the function of the pressure sensor also."

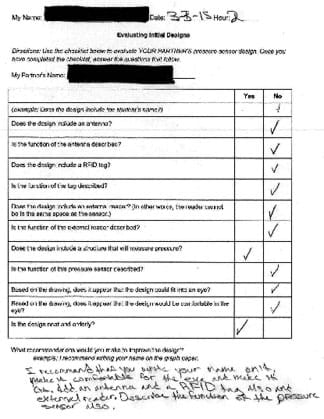

    Figure 5. Example completed student peer-evaluation document for an initial design.
    Copyright © 2015 Janelle Orange, Michigan State University

With the Students—Day 2

Student goal: Design an intraocular pressure sensor prototype that meets design constraints and utilizes RFID technology.

  1. Show students the 3D-printed RFID reader (created by the teacher prior to the activity). Tell them that this is the reader that all student will use in their designs. Student designs must show the other components, including the antenna, resonator and selected pressure gauge.
  2. Based on the peer evaluations completed on Day 1, the research collected during the web quest and their preliminary designs, direct students to work in groups to brainstorm ideas for a new prototype. Their new ideas should come from the feedback and work already completed.
  3. Have students draw new diagrams on graph paper of the group design. Require the diagrams to include top and side views of the prototypes (see Figure 6).
    A scan shows graph paper with a hand-drawn sketch titled "Initial Design." The top view identifies a resonator (picks up vibrations from bellow and sends signals in waves), bellow (detects pressure changes) and RFID reader (picks up waves from resonator/antenna and interprets), plus additional notes: fits inside anterior chamber, clear and flexible, waterproof (polymer). The side view identifies the resonator and bellow.

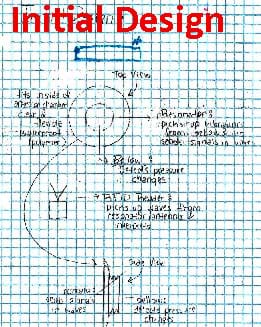

    Figure 6. Example student initial intraocular pressure device design, including top and side views identifying structures and functions.
    Copyright © 2015 Janelle Orange, Michigan State University
  4. Once teams have new designs, direct them to decide on the size of their prototypes and then document those measurements on the side and top views in their diagrams.
  5. Inform students of the measurement and volume constraints (determined in advance by the teacher, based on the 3D printers and filament limitation). Have students estimate the volumes of their designs; calculations will vary by design. For example, if a team creates a spherical-like design, then the equation used to calculate volume (v = 4/3πr3) is different than if the design is rectangular (v = l x w x h). If a group's design size and volume estimate exceeds that of the assigned printing constraints, advise students to change one variable (length, width or height) and then recalculate the volume.

With the Students—Day 3

Student goal: Respond to peer feedback as part of designing an intraocular pressure sensor prototype.

  1. Once group prototype designs are finalized, they are evaluated by their peers using the Peer Evaluation: THE TEST? Will It Fit? Partner each team with another and direct them to exchange diagrams of their prototypes. Each group uses the evaluation sheet to review its assigned team design, providing a review of the overall design feasibility and compliance with size limitations. Once the evaluation document is completed, students return it and the diagram to the team. If 3D printing is not available, stop the activity here and the evaluation sheet serves as the post-activity assessment.
  2. Student groups revise their designs based on feedback on the peer-evaluation sheet.
  3. Next, teams sign up for accounts at tinkercad.com. Working as a group, students complete the beginning tutorials before inputting the team design.

With the Students—Days 4, 5 and 6

Student goal: Design and 3D print an intraocular pressure sensor prototype.

  1. Student groups work together to transfer their hand-drawn designs to a 3D representation using tinkercad.com. Once designs are completed, save them and give them to the teacher. Tinkercad permits users to save designs to a flash drive. Make sure to save the designs in the document format that is compatible with the teacher's 3D printer. The teacher may need to make minor adjustments (such as the infill) to student designs prior to printing.
  2. Direct teams to begin to prepare their presentations. Give each group a Teacher Evaluation: Under Pressure Prototype Presentation Grading Rubric to guide them through the process. Inform them of their presentation materials/format options.
  3. While students work, support each student group in the printing of their prototype designs.
    A photograph shows three blue plastic pieces of varying shapes and sizes (two square, one circular) with three half-sheets of white paper nearby containing sketches of each, with parts identified.
    Figure 7. Three examples of student-created 3D-printed intraocular pressure sensor prototype devices with their design sketches.
    Copyright © 2015 Janelle Orange, Michigan State University

With the Students—Day 7

Student goal: Present prototypes to an audience, explaining how the devices use radio-frequency identification (RFID) to help people who are diagnosed with glaucoma.

  1. The rest of the class serve as members of the (hypothetical) grant approval team from the Glaucoma Research Foundation. Their task is to evaluate potential projects with the intent of providing funding for one project team to develop its ideas beyond the prototype stage. Doing this requires the audience students to pay close attention to each presentation in order to complete the Peer-Evaluation: Potential Projects to Fund Analysis table and make sound final recommendations.
  2. The teacher evaluates team presentation components using the grading rubric.
