### Summary

In this lesson, students learn about work as defined by physical science and see that work is made easier through the use of simple machines. Already encountering simple machines everyday, students will learn about their widespread uses in improving everyday life. This lesson serves as the starting point for the Simple Machines Unit.### Engineering Connection

Simple machines are the building blocks for many of the mechanical devices - both ancient and very modern - used by society for improving everyday challenges. Both high- and low-tech cultures use simple machines to accomplish daily tasks and improve our lives. Engineers draw upon their understanding of the six simple machines when they are inventing new, or refinining existing, machines.

### Learning Objectives

After this lesson, students should be able to:

- Recognize and identify the six simple machines.
- Define the concept of work.
- Explain why engineers are interested in simple machines.

### More Curriculum Like This

**Engineering: Simple Machines**

Students are introduced to the six types of simple machines — the wedge, wheel and axle, lever, inclined plane, screw, and pulley — in the context of the construction of a pyramid, gaining high-level insights into tools that have been used since ancient times and are still in use today.

**Levers That Lift**

Students are introduced to three of the six simple machines used by many engineers: lever, pulley, and wheel-and-axle. In general, engineers use the lever to magnify the force applied to an object, the pulley to lift heavy loads over a vertical path, and the wheel-and-axle to magnify the torque appl...

**Slide Right on By Using an Inclined Plane**

Students explore building a pyramid, learning about the simple machine called an inclined plane. They also learn about another simple machine, the screw, and how it is used as a lifting or fastening device.

**Just Plane Simple**

This lesson introduces students to three of the six simple machines used by many engineers. These machines include the inclined plane, the wedge and the screw.

###
Educational Standards
Each *TeachEngineering* lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in *TeachEngineering* are collected, maintained and packaged by the *Achievement Standards Network (ASN)*,
a project of *D2L* (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; *e.g.*, by state; within source by type; *e.g.*, science or mathematics;
within type by subtype, then by grade, *etc*.

Each *TeachEngineering* lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in *TeachEngineering* are collected, maintained and packaged by the *Achievement Standards Network (ASN)*,
a project of *D2L* (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; *e.g.*, by state; within source by type; *e.g.*, science or mathematics;
within type by subtype, then by grade, *etc*.

###### Common Core State Standards - Math

- Fluently divide multi-digit numbers using the standard algorithm. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
- Fluently add, subtract, multiply, and divide multi-digit decimals using the standard algorithm for each operation. (Grade 6) Details... View more aligned curriculum... Do you agree with this alignment?
- Recognize and represent proportional relationships between quantities. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
- Solve linear equations in one variable. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?

###### International Technology and Engineering Educators Association - Technology

- Knowledge gained from other fields of study has a direct effect on the development of technological products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
- Many inventions and innovations have evolved using slow and methodical processes of tests and refinements. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?

###### Colorado - Math

- Solve real-world and mathematical problems involving the four operations with rational numbers. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
- Solve linear equations and inequalities in one variable, including equations with coefficients represented by letters. (Grades 9 - 12) Details... View more aligned curriculum... Do you agree with this alignment?

###### Colorado - Science

- Predict and evaluate the movement of an object by examining the forces applied to it (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
- Use mathematical expressions to describe the movement of an object (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?

### Introduction/Motivation

Today we are going to talk about a particular kind of work as defined by physical scientists and used by engineers. According to engineering and science, *work *is the energy it takes to move an object. Associated with this definition is a mathematical concept which will be used throughout this unit:

*Work = [Force Applied] x [Distance the Object Moved]*

What is one thing we want to accomplish whenever we have to do work? (Answer: We want our work to be easier – unless, for example, we are athletes training for a competition; then we know it's going to be very hard, no matter what.) Finding ways to make work easier is what drives people to invent (better) machines. Machines allow us to do many things quicker or with less effort. They also enable us to do things that we otherwise would not be able to do.

What are some inventions in our classroom? (Example answers: pencil sharpener, fan, sink faucet.) Do you have any ideas about what the inventor was thinking about when she or he designed it? (Example answers: They wanted to make it easier to sharpen my pencil to a nice point, bring cool air into a room or bring water from ground to sink for use.) Remember that the aim of machines is to make our work easier or perhaps more enjoyable. How has the machine you thought of made an impact on you and society? (Example answer: Pencil sharpeners can be found in almost every classroom; pencils have continued to be a popular tool for writing.)

Just as bricks are an essential part of a brick home, there are fundamental parts of machines as well. These fundamental parts are known as *simple machines*. Simple machines can exist on their own and are also sometimes hidden in the mechanical devices around you. There are six simple machines that can be found in many everyday items:

*(Note: The following machines may be presented on an overhead or listed on the board.)*

**Inclined Plane**– An inclined plane is a ramp that reduces the force needed to move an object. Consequently, the object must travel a longer distance. Inclined planes were used by the Egyptians to build the pyramids.**Screw**– A screw is an inclined plane that is wrapped around a cylinder. Examples of screws include: fasteners that are used to attach wood or metal; lifting screws that are used to lift heavy objects and dig holes; and bolts that are used with nuts to keep things together.**Wedge**– The wedge is two inclined planes put together. It can be used to split things apart, such as an ax, or to hold things, such as a doorstop.**Lever**– A lever consists of a bar that rotates around a pivot point called the fulcrum. Levers make work easier by applying force over a longer distance. This means the same work is done with less applied force. Examples of levers included a seesaw and the human arm.**Wheel-and-Axel**– A wheel-and-axel is a wheel attached to a rod or stick. It works similarly to a lever, in that, considering movement about the circumference, the distance the wheel-circle moves is much greater then the distance the smaller axel-circle moves.**Pulley**– A pulley is a wheel with a groove for a rope. When something is attached to the rope, it can be moved by pulling on the other end that has looped around the pulley.

Keep in mind that the amount of work needed to move an object a certain distance is always the same. Basically, that means that it will always take the same amount of work to move an object from point A to Point B no matter how you get it there. The simple machines do not change the *total *amount of work that you have to do, but they change *how it feels *to do that work.

Here again is the equation we will use to calculate work in this unit.

*Work = Force x Distance*

Let's make sure that we understand this equation. *Force *is any push or pull, such as gravity pulling on a falling apple or me pushing a table. Watch me as I push this book across a table. Was I doing work when I moved the book? (Answer: Working. Each time a person pushes or pulls an object and moves it, that person does work.) How about when I push against the wall? It does not move, so am I actually doing work? (Answer: No, even though you are straining yourself, the wall does not move, so there is no work involved.)

What are the units of force? They are called *newtons *(named after Isaac Newton, who watched an apple fall from a tree and came up with the concept of gravity). The units of distance are *meters*. Work is measured by a unit called a *joule*. So, newtons (symbolized by N) multiplied by meters (m) equals the unit joule (J).

The other thing we want to learn about these simple machines is their mechanical advantage, or the extent at which a machine makes work easier for us. Engineers use this concept when deciding what size of simple machine is best for a particular activity. For instance, an engineer may decide to use a crane (a lever) to lift a heavy, steel beam at a construction site. She can use mechanical advantage to answer the following important question, "How long should the lever arm be and how much force should be applied at the other end to lift this steel beam?"

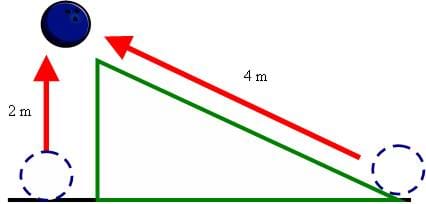

Which do you think would be easier: to lift a bowling ball straight up above your head or to roll it up a ramp to the same height? Most people would agree that rolling it up the ramp would be easier. Now, remember that no matter which method you use to get the ball to the specified height, according to science, you actually do the same amount of work either way.

Let's say I applied 8 newtons of force and lifted the bowling ball up 2 meters. The total work of moving the ball up 2 meters would be, as defined by our equation: the product of 8 N (the force) and 2 m (the distance) equals 16 J (the work).

Now, if we roll the ball up a ramp that is 4 meters long, with what force do we have to push it in order for the total amount of work to equal 16 joules? (Answer: 4 newtons) So with the ramp, which, coincidentally, is a simple machine known as the inclined plane, we were able to cut in half the force we needed to exert on the ball. The mechanical advantage of the inclined plane is the "force to do the work" divided by the "force to do the same work with the assistance of a machine." So what is the mechanical advantage of this particular inclined plane? (Answer: 2) Figure 2 illustrates the mechanical advantage of an inclined plane.

### Lesson Background and Concepts for Teachers

The six simple machines — the lever, inclined plane, wedge, screw, wheel and pulley, and axle — are widely recognized throughout society. However, there is some discord regarding the exact understanding of simple machines. Some engineers, for instance, call gears the seventh simple machine. Physicists classify simple machines into two big categories: levers and gears. In his book, *Elements of Machines*, Leonardo DaVinci listed twenty-two different simple machines. Regardless of the many different classifications, there is one common thread: *all simple machines make work easier.*

One way to measure the magnitude by which simple machines make work easier is through calculating *mechanical advantage*. There is one unifying concept behind mechanical advantage for all six simple machines, but unfortunately, they each are calculated differently. In the following two lessons of this unit, students will learn how to calculate mechanical advantage for each machine. The overarching theme is that we want to know how much less force is needed to do the same amount of work. The mechanical advantage number (see equation below) is the ratio of force applied *without *a machine to the force applied *with *a machine to do a particular amount of work. In this lesson, when calculating work and mechanical advantage, we use *metric units*.

*Mechanical Advantage = [force applied to do work] / [force applied to do work with help of machine] *

There are three units of measurement needed throughout the Simple Machines unit. Force is measured in units of *newtons*. These units are named after Isaac Newton (1643-1727) who is considered the father of classical mechanics; i.e., the description of moving objects. The other unit is the *meter*, which has Greek and Latin origins. The final unit we will be using describes the product of newtons and meters which are *joules*. These units were named after a 19th century physicist James Prescott Joule who studied heat and related this phenomenon to energy. Interestingly, heat, energy and work all use the same units of measurement: joules.

### Vocabulary/Definitions

Force: Any push or pull.

Joule: International System of Units (SI) for energy, heat and work.

Meter: SI unit for length

Metric Units: Units of measurement as defined under the International System of Units (SI).

Newton: SI unit for force.

Simple Machine: The fundamental parts of any machine. Simple machines can exist on their own and are also sometimes hidden in the mechanical devices around you. Six simple machines can be found in many everyday items: screw, lever, axel and wheel, pulley, wedge and inclined plane.

Work: The energy it takes to move an object some distance.

### Associated Activities

- A Simple Solution for the Circus - Students are challenged in this activity to design a device using simple machines to move an elephant six feet, within several constraints.

### Lesson Closure

What are some simple machines in this classroom? (Example answers include: The doorstop is a *wedge*, a desktop that opens is a *lever*, *screws *hold our chairs together and a *pulley *might move our blinds up and down.) What is work? (Answer: Work is the energy it takes to move an object a certain distance. The equation we will use for work is: force multiplied by distance.) Why are engineers interested in simple machines? Engineers use the concepts of simple machines to invent many mechanical devices to improve everyday challenges. In addition, various engineering tasks can be completed or more easily accomplished through the use of simple machines. Essentially, simple machines help improve society through making life's tasks much easier.

### Assessment

Pre-Lesson Assessment

*Discussion Question*: Solicit, integrate and summarize student responses.

What does it mean to do work? (Students should offer different examples; e.g., a student doing schoolwork, a businesswoman doing paperwork, a young person doing yard-work, an athlete working his bike up a hill, a carpenter working in the wood shop.)

Have you ever wondered how the Egyptians built the pyramids? (Answer: They built large ramps, or inclined planes, and slid the massive blocks up to their desired position.) Who do you think came up with that idea? (Answer: An engineer, but they might not have called them one during ancient times; a person who is much like an engineer of today.)

Post-Introduction Assessment

*Drawing Race*: Write the six simple machines on the board (screw, lever, wheel-and-axel, pulley, wedge and inclined plane. Divide the class into teams of four, having each team member number off so each has a different number, one through four. Call a number and a simple machine. Have students with that number race to the board to draw the simple machine. Give a point to the team whose teammate first finishes the drawing correctly.

Lesson Summary Assessment

*Send-A-Question*: Ask each team of four students to name themselves according to one engineering discipline (i.e., civil, mechanical, electrical, aerospace, chemical, structural, etc.) Each student on a team creates a flashcard with a question on one side and the answer on the other. *(Note: If the team cannot agree on an answer they should consult the teacher.) *One team member goes to the next team, e.g., team Civil Engineers, bringing with her the team's written questions. Team Chemical Engineers attempt to answer the questions. There should be more than two teams. If students feel they have another correct answer, they can write it on the back of the flashcard as an alternative answer. Once all teams have tested themselves on all the flashcards, regroup and clarify any questions.

*Using the Equations: *Ask students to solve the following problems using the equations from the lesson:

- I apply a 6 N force on a box to push it a distance of 4 m. What is the work done? (Answer: 6 N * 4 m = 24 N m)
- A construction worker uses a board and log as a lever to lift a heavy rock. He applies a force of 20 N without the use of the lever, however with the lever, he applies a force of 10 N. What is the mechanical advantage? (Answer: 20 N / 10 N = 2)

### Lesson Extension Activities

Have students watch the Discovery channel clip on Building Stonehenge, where one man builds a model Stonehenge in his backyard, using only simple machines. Discuss what simple machines he used and the feasibility of Stonehenge or the ancient pyramids being built this way. https://www.youtube.com/watch?v=lRRDzFROMx0

Discuss with students how simple machines make our lives easier. Demonstrate this by asking students to complete a task without using a simple machine, and then with one. For example, rolling a blind up by just rolling it by hand versus by using the pull cord to smoothly roll the blind.

Bring in a variety of common household items and give each student an item. Have them decide which simple machine(s) the item demonstrates. (Example items might include: knife, screwdriver, door stop, screw, nail, hammer, scissors, toys that have pulleys and wheel/axels.)
