Lesson: Surfactants: Helping Molecules Get Along

Contributed by: STARS GK-12 Program, College of Engineering, University of South Florida

Four photos: A woman in a lab with two vials of fluids. Two men spray paint a wall. A man pours paint into a printing press. Gloved hands clean a wood duck that was caught in an oil spill.
Surfactants are engineered for specific purposes and are commonly used in paints, dyes, inks and cleaning products, as well as an uncountable number and variation of consumer products.
copyright
Copyright © USDA; Job Corps; OSHA, US Dept. of Labor; Texas General Land Office http://www.ars.usda.gov/is/pr/1998/980303.htm?pf=1 http://columbiabasin.jobcorps.gov/vocations.aspx http://www.osha.gov/dcsp/products/etools/printing/flexography/flexography_index.html http://www.glo.texas.gov/what-we-do/caring-for-the-coast/oil-spills/response/oiled-wildlife.html

Summary

Students learn about the basics of molecules and how they interact with each other. They learn about the idea of polar and non-polar molecules and how they act with other fluids and surfaces. Students acquire a conceptual understanding of surfactant molecules and how they work on a molecular level. They also learn of the importance of surfactants, such as soaps, and their use in everyday life. Through associated activities, students explore how surfactant molecules are able to bring together two substances that typically do not mix, such as oil and water. This lesson and its associated activities are easily scalable for grades 3-12.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Engineers use surfactants in many aspects of material development and industrial manufacturing. For example, surfactants are commonly used in paints and dyes to improve adhesive properties and ensure even spreading on building surfaces and consumer packaging. The concepts of molecular polarity and surface tension are widely researched and applied in many aspects of engineering science, including their end use in paints, dyes, cosmetics, lubricants, pharmaceuticals, and textile production. Surfactants can be found in almost every consumer product — from a Twinkie wrapper to the ink in a pen.

Learning Objectives

After this lesson, students should be able to:

  • Define polarity and identify the differences between polar and non-polar molecules.
  • Identify the impact of polarity on interactions between molecules (for example, oil and water, water on a surface).
  • Describe surface tension and how it affects the shape of water.
  • Calculate the surface area of a sphere and a cube and determine that a sphere has the least surface area for a given volume.
  • Understand how surfactants act to reduce surface tension between polar and non-polar molecules and facilitate their mixing.

More Curriculum Like This

Get Your Charge Away from Me!

This activity is an easy way to demonstrate the fundamental properties of polar and non-polar molecules (such as water and oil), how they interact, and the affect surfactants (such as soap) have on their interactions. Students see the behavior of oil and water when placed together, and the importanc...

Elementary Activity
Flocculants: The First Step to Cleaner Water!

Students experience firsthand one of the most common water treatment types in the industry today, flocculants. They learn how the amount of suspended solids in water is measured using the basic properties of matter and light. In addition, they learn about the types of solids that can be found in wat...

Down with the Clip!

Students see how surface tension can enable light objects (paper clips, peppercorns) to float on an island of oil in water, and subsequently sink when the surface tension of the oil/water interface is reduced by the addition of a surfactant; such as ordinary dish soap.

Elementary Activity
The Search for Surfactants: What Is the Best Soap?

Student teams are challenged to evaluate the design of several liquid soaps to answer the question, “Which soap is the best?” Through two simple teacher class demonstrations and the activity investigation, students learn about surface tension and how it is measured, the properties of surfactants (so...

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Develop models to describe the atomic composition of simple molecules and extended structures. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • The use of technology affects the environment in good and bad ways. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • New products and systems can be developed to solve problems or to help do things that could not be done without the help of technology. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Technologies can be used to repair damage caused by natural disasters and to break down waste from the use of various products and systems. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Compare and contrast the basic properties of solids, liquids, and gases, such as mass, volume, color, texture, and temperature. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Explore the scientific theory of atoms (also called atomic theory) by recognizing that all matter is composed of parts that are too small to be seen without magnification. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Investigate and explain that an electrically-charged object can attract an uncharged object and can either attract or repel another charged object without any contact between the objects. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Introduction/Motivation

Have you ever seen a duck in the water? A duck is able to maintain buoyancy on water not because it is less dense than the water but because its feathers are coated with oil that traps air and repels water. In order to swim under water, a duck exhales and pulls its wings against its body to squeeze out the trapped air. Upon resurfacing, it takes a deep breath and flaps its feathers to trap air again in the oily feathers.

A surfactant is a chemical that connects polar and non-polar molecules, allowing them to mix. In the duck example, introducing a surfactant would enable the water and the oil on the duck's feathers to mix. So, if a surfactant was added to the water of the duck's pond, it would disrupt the duck's ability to repel water and trap air bubbles, making it difficult or impossible for the duck to float. This is why when surfactants are used to clean up oil spills, the ducks have a hard time floating in the water.

So what exactly is a surfactant? Well, a surfactant is a molecule that lowers surface tension and allows for the mixing of dissimilar liquids. What is surface tension? (Listen to student definitions, then clarify if needed: Surface tension is a property of the surface of a liquid that causes an attractive or repulsive force between the liquid and another surface.) Surface tension is not always between two liquids. We also see surface tension between liquids and gases, and liquids and solids (such as the meniscus we see in a graduated cylinder).

What are dissimilar liquids? A common example of dissimilar (non-mixing) liquids is oil and water. When you have greasy dishes, does running water over them make the dishes clean? What if the water is hot? That's right! Running water over the dishes will not clean them; we have to use soap! Based on the definition I just gave you of surfactants, do you think soap could be a surfactant? Well let's see. Does it reduce surface tension? (Expect puzzled looks.) I'm not quite sure what that means either, so let's come back to it. Does it allow for the mixing of dissimilar liquids? Well, oil and water are not the same liquid and they don't usually mix unless soap is added. I think there is a good chance that soap is a surfactant! In fact, soap is one of the most common surfactants.

Can anyone think of other places where we might find surfactants? It may not be so intuitive, but surfactants are also used in paints, dyes, cosmetics, pharmaceuticals, textile production, lubricants and many other consumer products. As a matter of fact, if it weren't for surfactants, many products wouldn't exist or wouldn't work well.

Engineers, in particular chemical engineers, play a key role in finding the right type of surfactant molecules needed to produce or use in consumer products. Engineers want surfactants such as soap to be strong enough to wash the oil off dishes or your hands but not so strong that it damages your skin. Can you imagine what would happen if the wrong type of surfactant was used in your shampoo? If the surfactant were strong enough it could damage the skin cells on your head and cause your hair to fall out! Engineers make sure this doesn't happen by finding the best surfactant for the job.

(Proceed to share with students the content information provided in the Teacher Background section, to the depth suitable for your class. Then conduct the associated activities.)

Lesson Background and Concepts for Teachers

The Basics of Polarity

A diagram shows a bar magnet with N and S marked on opposite ends. Captions suggest one end is similar to the positive (+) charges found in atoms and molecules, and the other end is similar to the negative charges found.
Figure 1. Magnetic polarity suggests a way to explain the concept of molecular polarity.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Magnets are simple macroscopic objects that can be used to demonstrate the general concepts of molecular polarity. The most fundamental concept behind polarity is the concept of magnetic attraction and repulsion. Every known magnet has two distinct regions or poles and each region or pole has a distinction. In the case of magnets, we refer to these poles as north and south. These terms originate from the early understanding that the Earth itself is a magnet and has a north and south pole. Figure 1 portrays a simple bar magnet and makes the connection between the concept of magnetic polarity and molecular polarity.

Figure 1 introduces the similarities between the concept of a magnet having a north and south pole and the basic charges of an atom: positive (protons) and negative (electrons). The main concepts of attraction and repulsion are outlined in Figure 2.

Diagram shows numerous bar magnets with N and S ends. Putting N and S ends together = opposites attract. Putting N and N ends together = likes repel.
Figure 2. The distinct properties of polarity as observed in magnets.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

The general understanding of polarity in magnets can be extended to molecular polarity. It is important to have a firm understanding of the structure and nature of molecules and their charges. All molecules consist of electrons, protons, and neutrons. The most fundamental aspect of polarity arises from the spatial distribution (that is, the arrangement in the free space of the molecule) of the charged sub-atomic particles, the electrons and the neutrons. The structure of an atom is composed of a tightly packed nucleus containing the protons and neutrons around which electrons orbit. Because of this, most atoms have a shell of negative charges surrounding them such that, if the atom were probed at any angle, a negative charge would always be experienced before reaching the nucleus. If molecules, containing atoms with these electron shells, combine these shells equally, that is the electrons are equally distributed throughout, it can be said that these molecules have a uniform charge distribution. Molecules with a uniform charge distribution are generally considered to be non-polar in nature. The uniform distribution of charges is also referred to as a symmetric charge distribution and is a key concept in defining a non-polar molecule

Some molecules contain highly electronegative atoms, atoms that have a large affinity for electrons (for example, oxygen and nitrogen). In many of these molecules, the presence of the highly electronegative species results in non-uniformity in the distribution of electrons around the molecule as these electronegative atoms tend to have a greater attraction on neighboring electrons. This non-uniform distribution of electrons can give rise to regions of the molecule that have a more dominant positive charge (due to fewer electrons in that area) and other regions that have a more dominant negative charge (due to more electrons in that area). Molecules that have a non-uniform distribution of charges are also referred to as having an asymmetric distribution of charges, a key concept in defining a polar molecule.

Charge symmetry can be understood by looking at the atomic structure of a molecule. In Figure 3, the basic structure of a well-known polar molecule, water, is displayed. An accurate description and a student-friendly description are provided. Here we can see that the dominantly positive regions (presented in red) are located at one extreme while the dominantly negative regions (presented in blue) are at the other extreme. This is analogous to a bar magnet, which is also shown to reinforce this concept. In the case of the water molecule, if we were to poke at it with our finger we would feel two drastically different regions depending on which direction we decide to poke. On one end we would feel a lack of electrons, which is the positive pole of the molecule, while on the other end we would feel an abundance of electrons, which is the negative pole of the molecule. This is a fundamental concept behind the description of a polar molecule.

A line drawing shows a bar magnet (dipole) marked with S and N on its ends; an oxygen molecule with 8+ in its center, 8 evenly distributed electrons orbiting it and 2 hydrogen (H+) attached via 2 electrons on one side; and a large blue circle with 2 smaller red circles attached to one side. The top half of the diagram with the two hydrogen molecules is marked as more positive, and the lower side with the oxygen molecules is marked as more negative.
Figure 3. Demonstration of the polar nature of water. From left to right: A magnet with two poles, an accurate illustration of the water molecule, and a student-friendly representation of the charge distribution in a water molecule.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Another key aspect of polar molecules and water especially, is how the polarity of the molecules affects the overall order of a fluid. As we can see in Figure 4, water is highly ordered with each molecule attempting to align itself such that its positive pole is in close proximity to an adjacent molecule's negative pole. Just like magnets, polar molecules want to line up in a way that minimizes the repulsive forces caused by having two like poles in close proximity.

Diagram shows a close-up of a drop of water as a field of H2O molecules; all the positive poles (H2s) are aligned to the adjacent water molecule negative poles (O).
Figure 4. Water is highly ordered. Note the positive and negative organization of the water molecules.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Furthermore, if we evaluate the charge symmetry of the water molecule, we can easily see that it is vertically symmetric but horizontally asymmetric (Figure 5). Since symmetry is defined as the property of obtaining a mirror image when an object is cut in half, the water molecule as a whole is considered to have an asymmetric charge distribution, a hallmark of all polar molecules.

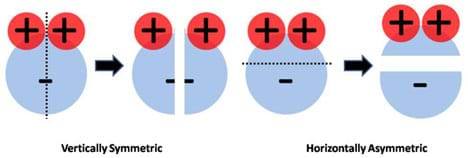

To test for charge symmetry of a water molecule, H2O diagrams are divided in half vertically and horizontally. Only when the molecule is cut in half vertically (separating the two H+s) is a mirror image of the molecule obtained.
Figure 5. A water molecule as a whole is considered to have an asymmetric charge distribution, a hallmark of all polar molecules.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

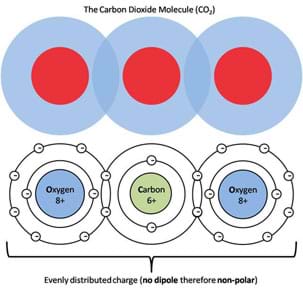

In contrast, an example of a non-polar molecule, a molecule with a symmetric charge distribution is carbon dioxide (CO2). Figure 6 shows a student-friendly (upper part) and a more accurate model (lower part) of the charge distribution in a CO2 molecule. As can be seen from these models, non-polar molecules such as CO2 have areas of positive charge on the inside whereas the outside is surrounded by negative charges. If we evaluate the charge symmetry of this molecule, as presented in Figure 7, it is apparent that regardless of how you cut the molecule in half, the two pieces will always be mirror images of one another, the hallmark of all non-polar molecules.

Schematic model of the charge distribution in a carbon dioxide molecule shows even distributed charge (no dipole, therefore non-polar).
Figure 6. Carbon dioxide (CO2) is an example of a non-polar molecule.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

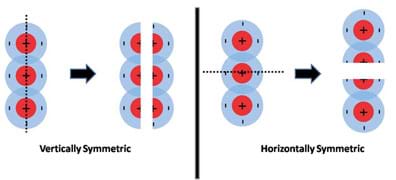

Diagram shows testing for the charge symmetry of a CO2 molecule. Regardless of whether the molecule is cut in half vertically or horizontally, mirror images of the molecule are obtained.
Figure 7. The symmetric charge distribution on a CO2 molecule is a hallmark of all non-polar molecules.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

The Philia, the Phobia, and the Amphi of Molecules

Special concepts describe how different molecules and surfaces interact with water. The first concept is that of water-loving molecules and materials. These are referred to as hydrophilic. The word hydrophilic is derived from the Greek words hydros meaning "water" and philia meaning "friendship," literally translated to mean water-loving. Molecules that are hydrophilic tend to be polar in nature. The opposite of water loving is water-fearing and is referred to as hydrophobic, which originates from the Greek phobia meaning "fear." These molecules tend to be non-polar in nature.

Not all molecules are strictly polar and non-polar; some are large enough to contain both properties. These molecules are called amphiphilic molecules (see Figure 8). In order for a molecule to exhibit both properties, it must have a connecting chain. These chains are found in the form of polymer chains composed of a polar group at one end and a non-polar group at the other end, with a polymer chain filling in the span. These long chains contain molecules with symmetric charge distributions. The average distribution of charge along the chain is symmetric, making this region non-polar. At large enough distances, away from the polar "head group," other non-polar molecules can favorably interact with this chain ("tail group") without being repelled by the polar head group. This concept is further developed in the Surfactants section, below.

Line drawing shows a long curvy line (called the non-polar tail, or polymer chain) with a sphere at one end (called the polar head group).
Figure 8. The two distinct regions in an amphiphilic molecule.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Oil and Water: Old Enemies

It is well known that oil and water do not mix and that oil is most often partitioned, separated, above water because it is less dense. But, what is happening that prevents oil and water from mixing like alcohol and water do? Oil and water do not mix because their molecular interactions are unfavorable; this involves polarity. Oils are non-polar substances that generally have an evenly distributed shell of electrons (negative charges) surrounding the molecules, whereas water is a polar substance that has distinct regions of both positive and negative charge. Considering the old scientific saying, "like dissolves like," polar molecules do not want to interact with non-polar molecules because of their dissimilarities in charge. Looking at the interface between oil and water as illustrated in Figure 9, it can be seen that water is very organized (as was shown before in Figure 4), aligning its positive poles to the adjacent molecules negative poles. For the purpose of this discussion and ease of illustration, the previously defined CO2 molecule is used to represent an oil molecule since both types of molecules have the same general charge distribution (in reality, oil molecules are much longer chains). Due to the lower density of oil, it partitions above the water without mixing. Additionally, the water molecules are ordered such that all of their positive regions are pointing towards the oil directly at the interface. This occurs because the oil is surrounded by negative charges and at the point where water and oil are "forced" to interact this is the most stable and favorable orientation. Another item worth noting is the complete lack of organization in the oil phase. Since no charge-based "motivation" exists to organize one way or another, they remain disorganized. This is due to the oil molecules being completely surrounded by negative charges.

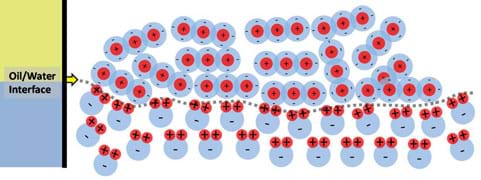

Diagram shows a field of randomly oriented CO2 molecules abutting a field of orderly H2O molecules.
Figure 9. At the oil/water interface, all of the positive poles in the water molecules are pointing toward the oil.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

In real life, this could manifest as oil slicks after an oil spill. This is also exhibited by the lifting of oils on the road after a light rain shower. Engineers exploit this property to reclaim water from oil reservoirs that have been pumped dry. In reality, the reservoirs are not empty but the bulk liquid has been removed and the remnants are trapped in the surrounding sediment and rock. To extract this, they pump large quantities of water or a water/surfactant mix to drive out the oil from the rock and soil, and reclaim the remnants by other processes.

To illustrate how and why water and oil do not mix, let us take a single molecule of water and place it in the oil phase, as shown in Figure 10. The water molecule is completely surrounded by negative charges, which makes the positive pole of the water molecule "happy," but the negative pole does not like being so close to all of the surrounding negative charges. This situation causes the water molecule to flip around and move, much like when you try to bring the north poles of two magnets together. This motion pushes around surrounding oil molecules enabling the water molecule to slowly drop through the oil (due to being denser than the surrounding oil) and eventually find the oil/water interface as shown in Figure 11. When the water molecule reaches the water phase it can then happily align itself with the rest of the water.

Same diagram as Figure 9, but with a lone H2O molecule in the midst of the CO2 field of molecules above the oil/water interface.
Figure 10. While the positive pole of a single water molecule is "happy" in the oil phase, its negative pole does not like to be surrounded by the negative charges.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida
Same diagram as Figure 10, but with an arrow showing the path a lone H2O molecule in the midst of a field of CO2 molecules might take towards the water side of the oil/water interface.
Figure 11. Due to gravity and repulsion from the surrounding oil, a single water molecule moves towards the oil/water interface, returning to the water phase.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Surface Tension and Water

When water molecules rest on surfaces for which they do not have an affinity, they tend to dome up spherically off the surface. This is often due to the non-polar nature of the surface and the water's great dislike for interacting with it. In botany, this effect has been coined the Lotus effect; after the lotus plant that exhibits this trait. It is also present in many other waxy-leaved plants and a variety of fungi. Outside of nature, this same effect can be seen on the hood of freshly waxed car, on the outside of a window after a rain shower, or on other metal or treated wood surfaces. In these instances, the water molecules are being repelled from the surface. The reason for these phenomena follows the same logic presented above. Water does not like electron-rich, non-polar surfaces. (Following this logic, it is also true that water is affected by non-polar gases, but for this section we will focus on its interactions with solids.)

Water's disfavor of non-polar surfaces is expressed through an increase in surface tension and the formation of hemispherical shapes, which approach perfect spheres as the surface becomes increasingly non-polar. Surface tension is a property of the surface of a liquid that describes the cohesion of molecules to like molecules. The more non-polar a surface is, the stronger the cohesive forces between neighboring water molecules and thus, the higher the surface tension. This principle is illustrated in Figure 12. When the surface is highly non-polar the water molecule is nearly perfectly spherical, when the surface is moderately non-polar the water molecule is more hemi-spherical, and when the surface is weakly non-polar the water molecule tends to spread across the surface. We note that surface tension angles (in Figure 12) between solids, liquids, and gases depend on the relative properties of each material considered.

Diagram shows a perfectly round circle for high surface tension (~30° surface tension angle) , a partially truncated circle for medium surface tension (~45° angle), and a half-circle for low surface tension (~90° angle).
Figure 12. Water molecules in contact with different surfaces, and varying contact angle measurement for different degrees of surface tension.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

This behavior is also seen in other instances. When water precipitates, it falls in droplets. The stereotypical depiction of a rain drop is hemispherical with a conical tail. This is a misconception. If such droplets are viewed with a high speed camera, it can be seen that water forms perfect spheres. This is in part because it is more favorable for the water to interact with other molecules of its own kind than with that of the surrounding air. This is an example of the property of cohesion (attraction between similar or identical molecules.)

Water takes on a highly spherical shape when it interacts with non-polar surfaces because a sphere has the lowest surface area of any three-dimensional geometric shape. This is proven mathematically in the example below. It is favorable to have a low surface area when a large difference in surface energies (polar vs. non-polar) exists. This is analogous to crossing a hot street in a bathing suit. Given the task, a person would not cross the street on his/her hands and knees; rather, s/he would run across as fast as possible touching as little of the street as possible.

Surface Area Proof

Drawings show a cube with a side length a, and a sphere with a radius r.
Figure 13. Sphere and cube of equal volume.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Example: Take a sphere and a cube of the same volume of 10 units. After doing some quick back calculation using equations for volume, we find the following radius and side length. Once the radius and side length have been calculated, we can use these lengths to determine the amount of surface area a specific shape (in this case, a sphere and a cube) have for the same volume (see Figure 13). As we can see, the surface area of the sphere is less than that of a cube of the same volume. In fact, the cube has almost 30% more surface area than the sphere! This example works with 2D figures as well. The circle has the least surface area of all shapes.

Calculations show a sphere surface area of 21 compared to a cube surface area of 27.
Example 3-D surface area calculations comparing a sphere and a cube.

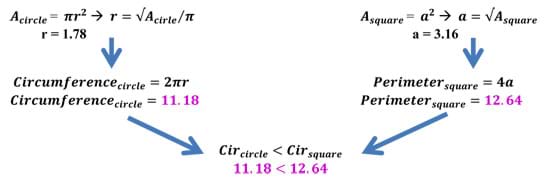

Calculations show a circle surface area of 11.18 compared to a square surface area of 12.64.
Example 2-D surface area calculations comparing a circle and a square.

Surfactants

Because of the chemistry-borne polarity, hydrophobic and hydrophilic molecules do not energetically favor mixing (they are too "lazy" to mix). In order to make mixing favorable, a molecular intermediate is needed. This intermediate carries molecular "appendages" that are both polar and non-polar, and therefore are favorable to both groups, as illustrated in Figure 14. These intermediate molecules are commonly referred to as surfactants.

Line drawing shows a long curvy line (an interconnecting polymer chain) with a CO2 molecule at its left end (hydrophobic portion) and a H2O molecule at its right end (hydrophilic portion).
Figure 14. A surfactant molecule with non-polar appendage (left) and polar appendage (right).
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

How do surfactants bring oil and water together?

A drawing shows a two-eyed blue blob with two arms outstretched with a blue hand and a red hand, and a police-type hat.
Figure 15. Surfactant man — a visual aid for representing the amphiphilic nature of surfactants.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

A surfactant is generally an amphiphilic molecule capable of interacting with various types of molecules including polar and non-polar molecules. The general challenge to washing greasy dishes or dirty hands is that the dirt is usually encased in oil or grease. We usually use water to accomplish this task, but since oil and water do not mix well, the water generally beads on the dirty greasy surface and rolls away leaving behind the dirt. The key component in most soaps and detergents is the surfactant. Since these molecules are amphiphilic, they are capable of binding to both water and oil molecules, resulting in the liberation of the dirt. By binding to both water and oil, surfactants allow these molecules to mix (via reducing the surface tension between water and oil). To visually reinforce the concepts that pertain to surfactants, we present a student-friendly "superhero," surfactant man, in Figure 15.

What makes surfactant man such a special type of molecule is his amphiphilic nature. He doesn't mind grabbing on to either a polar molecule such as water or a non-polar molecule such as oil. Figure 16 is a generalization of this concept involving surfactant man. Here, he is capable of "holding" on to many non-polar and polar molecules all at once.

A cartoon drawing shows a pinwheel of molecules: A cluster of eight CO2 molecules is surrounded by eight surfactant men each linking a CO2 molecule to a H2O molecule via their outstretched hands.
Figure 16. Surfactant man in action, illustrating how a surfactant is an amphiphilic molecule that interacts with both polar and non-polar molecules, essentially "bringing them together."
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

In the end, you have molecules that generally do not like to mix, in close contact with one another (see Figure 17 or the attached Surfactant Man Visual Aid).

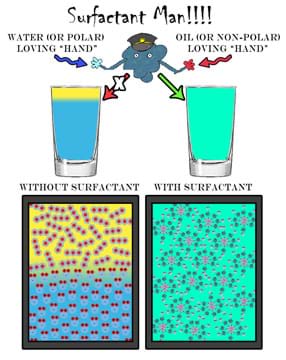

Cartoon illustration identifies surfactant man's water (or polar) loving hand and oil (or non-polar) loving hand. Containers of oil and water are shown side view and microscopically, to compare how the oil and water, and molecules, behave without surfactant (separated) and with surfactant (mixed).
Figure 17. Surfactants allow for mixing of oil and water by "grabbing" on to the molecules.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Cartoon illustration shows a ring of 12 blue circles with crooked tails all pointing toward and surrounding one orange circle.
Figure 18. Surfactants form a micelle (in blue) to encapsulate non-polar molecules (in orange) and disperse them amongst other polar molecules.
copyright
Copyright © 2010 Samuel DuPont and Ryan Cates. STARS – University of South Florida

Please keep in mind that this is a generalization and the true nature of many surfactants involves the formation of spheres called micelles. A micelle is organized such that the hydrophilic heads of the surfactant molecule are on its surface while the hydrophobic tails of the surfactant molecule point towards its center. On the inside of the spherical micelle, components that interact with the hydrophobic tails (such as oil) can be trapped while the hydrophilic heads keep the entire sphere suspended in water. Micelles are not large in size and generally are composed of only a few dozen molecules or less. Figure 18 depicts the general concept behind micelles. This type of molecular organization can also be found in the cell walls of plants and the cell membrane of animal cells.

Vocabulary/Definitions

cohesion: Attraction between similar or identical molecules.

hydrophilic: A characteristic of having a strong affinity for polar molecules.

hydrophobic: A characteristic of having a strong affinity for non-polar molecules.

interface: A boundary between two systems or phases of matter.

lotus effect: The high water repellency exhibited by the leaves of the lotus flower. More broadly refers to the water-repelling properties of waxy-leaved plants, or high surface area to volume surfaces (nano-surfaces).

mixing: The ability for two fluids to be evenly dispersed in one another.

non-polar: Having globally equal charge distribution, resulting in charge symmetry.

polar: Having globally unequal charge distribution, resulting in magnetic (charged) poles.

repel: Resistant to something or incapable of mixing with it.

surface tension: A property of the surface of a liquid that causes an attractive or repulsive force between the liquid and another surface.

surfactant: A compound that reduces the surface tension between two dissimilar materials. Usually fluid-fluid or fluid-solid.

Associated Activities

  • Tension Racers! - Students explore how water interacts with different surface types due to surface tension by racing water droplets down various surfaces and observing which exhibit the highest level of surface tension and move fastest. This activity is also suitable as a data collecting and data analysis exercise.
  • Get Your Charge Away from Me! - Students observe how water drops fall through oil and how the addition of surfactants drastically alters the shape of the falling water and enables the mixing of oil and water. This activity demonstrates the fundamental properties of polar and non-polar molecules (such as water and oil), how they interact and the affect surfactants (such as soap) have on their interactions. The activity is scalable for grades 3-12.
  • Down with the Clip! - Students watch surface tension in action as they float paperclips (or peppercorns) on small islands of oil atop water. They observe how the water's surface tension changes when a small amount of surfactant (dish soap) is added, eventually resulting in the sinking of the object.
  • Let's Get Dirty - Using oil, coffee grounds, water, and hand soap (a surfactant), students see the importance of using soap when cleaning their hands. This activity also makes a connection between the oil on our hands and the potentially harmful bacteria encased within it.

Attachments

Assessment

Pre-Lesson Assessment

Discussion Questions: Solicit, integrate and summarize student responses. Ask the students:

  • How does soap remove dirt and germs from your hands? (Have students offer suggestions to share with the class. Answer: Dirt and germs primarily accumulate in the oils on your skin. Soaps are made of surfactant molecules that bind together oils and water. This allows soaps to wash the dirt and germs off of your skin. Some soaps also have other additives with antiseptic properties.)
  • What is a surfactant and where can we find them? (Answer: A surfactant is a molecule that has both polar and non-polar properties. Surfactants are used to lower the surface tension between two opposing fluids.)

Post-Introduction Assessment

Create a Surfactant: Have students create drawings that depict the idea of a surfactant. Require that drawings illustrate the function of this molecule and an architecture that they believe will enable the surfactant's functions. Next, have students propose different additives for their soaps (for example, antiseptics, perfumes or moisturizers). After this, have students describe how they might manufacture this soap if they were the head design engineers.

Lesson Summary Assessment

Surfactant Jeopardy: Divide the class into three or four groups. Ask each team to choose a name — something from the vocabulary of this lesson or after a surfactant-containing product. Have teams select a leader, who is in charge of the buzzer (either a real buzzer, bell or some other type of signaling sign). The teacher takes the role of game show host Alex Trebek and asks questions about the material that they have created and assembled in a Jeopardy-like fashion. Simulate the Jeopardy game by using note cards with point values and questions, or use one of the many freeware Jeopardy programs available on the internet.

Example questions/answers:

Q: The cause of molecular polarity. (Answer: What is charge distribution?)

Q: Molecules with this type of charge distribution are considered to be non-polar in nature. (Answer: What is a symmetric charge distribution?)

Q: A type of atom that has a high affinity for electrons. (Answer: What is an electronegative atom?)

Q: Polar molecules have this type of symmetry. (Answer: What is asymmetry?)

Q: A property responsible for the native orientation of water molecules. (Answer: What is the property of polarity?)

Q: A type of molecule that is said to "love water." (Answer: What is a hydrophilic molecule?)

Q: A type of molecule that bonds with both polar and non-polar molecules. (Answer: What is a surfactant molecule?)

Q: The link that connects together the polar and non-polar groups of a surfactant molecule. (Answer: What is a polymer chain? or What is a hydrocarbon chain?)

Q: The property of a liquid that is responsible for its cohesive properties. (Answer: What is surface tension?)

Q: A 3-D shape with the lowest surface area. (Answer: What is a sphere?)

Homework

Find Surfactant in Society: Have students develop a list of products or things that use or are composed of surfactants. Chemical engineers design these products to have specific properties for specific purposes. Examples: Dyes, inks, laundry detergents, cellular organisms, paints, skincare products, toothpaste, shampoos, pharmaceuticals, printing technologies, hard drives, solar panels, fire-fighting foam, ski and snowboard waxes, medical [for lungs], oil well extraction.)

Bonus Questions: Ask students to write answers in their lab books to the following questions: Would surfactants have the same characteristic properties if they did not have a long connecting polymer chain? What properties would they have?

Additional Multimedia Support

For fun, show students a 3-minute video of surface tension at work in zero gravity, made by NASA astronaut Don Petitt on the International Space Station. He uses candy corn to represent soap molecules to show how surfactant molecules work to clean grease or oil. See the Every Day is Science Friday's "Candy Corn in Space" video at http://www.sciencefriday.com/videos/candy-corn-in-space-2/.

References

"Surfactants: Detergent Chemistry." n.d. Kiwi Web, Surfactants: Surface Active Agents, Chemistry and New Zealand. n.p., Accessed April 15, 2010. http://www.chemistry.co.nz/surfactants.htm

Contributors

Samuel DuPont; Ryan Cates

Copyright

© 2011 by Regents of the University of Colorado; original © 2011 College of Engineering, University of South Florida

Supporting Program

STARS GK-12 Program, College of Engineering, University of South Florida

Acknowledgements

This curriculum was developed by the USF Students, Teachers and Resources in Sciences (STARS) Program under National Science Foundation grant numbers DGE 0139348 and DGE 0638709. However, these contents do not necessarily represent the policies of the NSF, and you should not assume endorsement by the federal government.

Last modified: September 5, 2017

Comments
