Grade Level: 9 (9-10)
Time Required: 1 hours 45 minutes
(Time split between three class periods.)
Expendable Cost/Group: US $2.00
Group Size: 3
Activity Dependency: None
Subject Areas: Physical Science, Physics
NGSS Performance Expectations:
SummaryStudents utilize the full Engineering Design Process (EDP) as they become next-generation engineers working on the safety feature for passenger vehicles. They are challenged to design or improve an existing passenger compartment design/feature so that it better withstands front-end collisions, protecting riders from injury and resulting in minimal vehicle structural damage.
Engineers are essential to our health and safety. Engineers are constantly innovating and designing ways to enhance passenger safety for motor vehicles. Engineers are guided by the steps of the engineering design process to improve all aspects of vehicle design, including materials durability, biodegradability, strength and rigidity, etc.
After this activity, students should be able to:
- List the seven engineering design process (EDP) steps in the correct primary sequence.
- Describe the seven EDP steps and why each is important to engineering.
- Describe existing passenger safety measures.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
|NGSS Performance Expectation|
HS-ETS1-3. Evaluate a solution to a complex real-world problem based on prioritized criteria and trade-offs that account for a range of constraints, including cost, safety, reliability, and aesthetics, as well as possible social, cultural, and environmental impacts. (Grades 9 - 12)
Do you agree with this alignment? Thanks for your feedback!
|Click to view other curriculum aligned to this Performance Expectation|
|This activity focuses on the following Three Dimensional Learning aspects of NGSS:|
|Science & Engineering Practices||Disciplinary Core Ideas||Crosscutting Concepts|
|Evaluate a solution to a complex real-world problem, based on scientific knowledge, student-generated sources of evidence, prioritized criteria, and tradeoff considerations.|
Alignment agreement: Thanks for your feedback!
|When evaluating solutions it is important to take into account a range of constraints including cost, safety, reliability and aesthetics and to consider social, cultural and environmental impacts.|
Alignment agreement: Thanks for your feedback!
|New technologies can have deep impacts on society and the environment, including some that were not anticipated. Analysis of costs and benefits is a critical aspect of decisions about technology.|
Alignment agreement: Thanks for your feedback!
Each team needs:
- a few raw eggs (expect some to break during crash tests)
- model car base kits; such as a wooden car kit at https://www.teachersource.com/product/wooden-car-kit/energy, the engineering sail car class pack (enough for 30 students) at https://www.pitsco.com/Try-This-Engineering-Class-Pack, or individual sail car kits at https://www.pitsco.com/try-this-engineering-kit; alternatively, provide assorted craft supplies from which students construct their own basic model car bases
- assorted building materials, such as cardboard, wooden craft sticks, tag board, foam sheets, felt sheets, cotton or polyester fill, chenille stems/pipe cleaners, plastic drinking straws, string/yarn, rubber bands, balloons
- assorted tools and adhesives, such as rulers, scissors, tape, white glue, hot glue
- wooden board for a ramp, 10-inches wide x 3-5-feet long, to run all model cars down for crash testing; alternatively, use sturdy cardboard
- plastic sheeting, to tape against the wall and floor for mess protection during testing
- washers and duct tape, to add equal weight to all cars, to improve the crash dynamics
- smartphone or tablet, to video record the model cars in slow motion
- stopwatches, for timing crash tests
- (optional) Internet access for researching current car safety features
- Creative Crash Testing Worksheet
For the entire class to share:
- Creative Crash Testing PowerPoint Presentation
- white board and marker or laptop with projector
- digital scale, to measure car mass
Worksheets and AttachmentsVisit [ ] to print or download.
Familiarity with mass, measurement, calculating speed and momentum.
Motor vehicle collisions account for 1.3 million deaths globally each year, while another 20-50 million people are injured or disabled in vehicle accidents. More than half of the collisions are caused by people who are 15-40 years old. Engineers are constantly innovating and designing ways to enhance passenger safety. Engineers are guided by the steps of the engineering design process to improve all aspects of vehicle design, including materials durability, biodegradability, strength and rigidity, etc. Take a look at this video.
(Show students the 1:35-minute “Buckle Up PSA” YouTube video, which shows many slow-motion vehicle crash tests with dummies inside, provides accident statistics, and briefly recaps how vehicle safety features (car seats, boosters and seat belts) added over the years have saved lives; at https://goo.gl/JyJ6ws.)
Today you are next-generation engineers and you are challenged to come up with the next best design for a vehicle passenger compartment and/or safety features to keep the “passenger egg” safe during a front-end collision, with minimal vehicle damage. You will use the Engineering Design Process to complete this challenge.
Motor vehicle collisions account for 1.3 million deaths globally each year, while another 20-50 million people are injured or disabled in vehicle accidents. More than half of the collisions are caused by people who are 15-40 years old. Engineers are constantly innovating and designing ways to enhance passenger safety. Engineers are guided by the steps of the engineering design process to improve all aspects of vehicle design, including materials durability, biodegradability, strength and rigidity, etc.
Before the Activity
- Gather materials
- Make copies of the Creative Crash Testing Worksheet (one for each student).
- (optional) Prepare to show the Creative Crash Testing PowerPoint Presentation.
With the Students
Research, Brainstorm, Plan and Prototype
- Distribute the Creative Crash Testing Worksheet to students. Optional: Use the Creative Crash Testing PowerPoint Presentation to introduce the activity.
- As a class, compile a list of safety features found on current vehicles. If students get stumped, suggest a few examples to get the ideas flowing, such as roll cages, seat belts, booster seats, airbags, head rests or cushioned interior, upon which students can expand on and improve.
- Introduce the project constraints: To come up with a vehicle safety design feature for their small-size model cars that is not currently in use, or one that works better than those currently in use. A successful design is one that protects the “passenger egg” and is durable.
- Prompt students to use this information as a jumping off point to examine the provided building materials and note similarities, such as craft sticks being similar to metal framing bars, and foam/felt being similar to the insulation and padding incorporated into modern vehicles.
- If students work in partners or groups (best if no more than four per group), have them individually brainstorm and sketch a few ideas for what they want to build on top of the model car base, with the goal to update or come up with a new passenger compartment so the passenger survives a front-end crash with no injuries and minimal car damage.
- Teams decide on a design solution to prototype and test.
- Give teams plenty of time to build and do small rolling tests against a wall so they can see how the impact affects the materials.

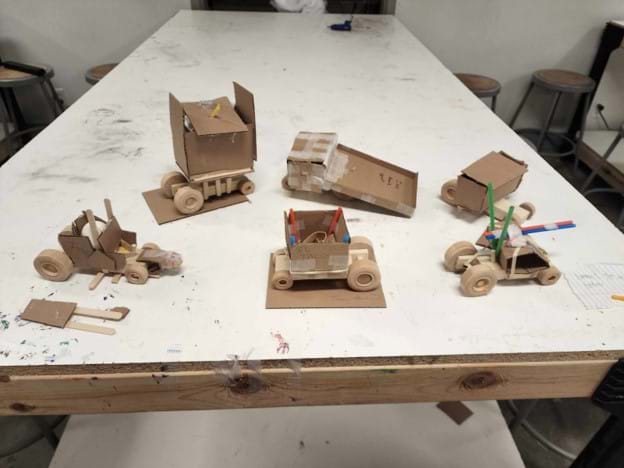

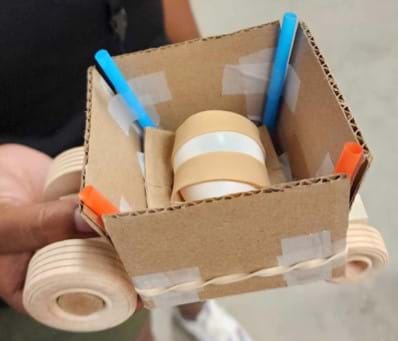

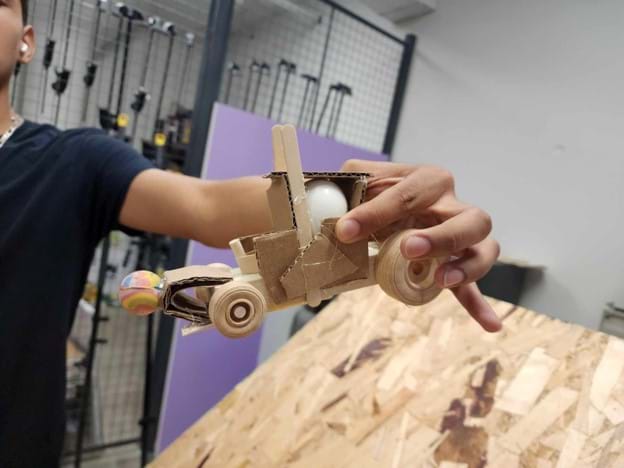

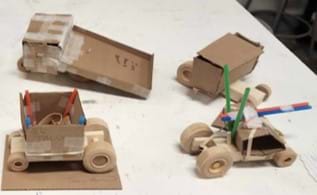

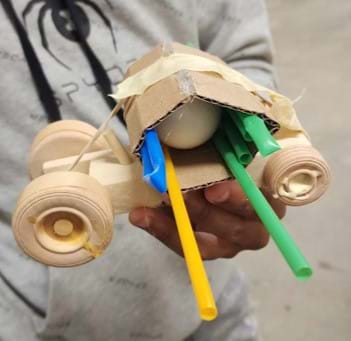

- Teams document the materials they use and sketch their final designs.
- After all teams have created prototypes, use the digital scale to find the mass of each car. Having this information helps with the anecdotal conclusions about the mass and momentum of the cars.
Test and Analyze
- Have students use stopwatches to time their crash test runs. They should time from the moment of release to the moment of impact. They should also measure the ramp from the point of release to the wall, in meters. Record distance and time measurements. Tips: Using a smartphone or tablet to video record the testing runs in slow motion is helpful for both timing and analysis. For more reliable data, have students run multiple trials, 3-5, and average their findings. Doing this will, however, have an effect on the car, but also serves as a good indicator for durability.
- After testing, students record whether their test runs were successful—egg did not crack and car structure remained intact—or not.
- Students calculate how fast their cars went and the momentum of the vehicles. They examine the data for relationships.
- As a class, briefly discuss any relationships seen between the heavier cars and the amount of destruction from the crash and the calculated momentum. Consider graphing the data. Have students write down their conclusions based on the class data—how mass affects momentum and the consequences of a front-end collision.
Redesign and Rebuild
- Teams brainstorm ways to fix the issues they found with their passenger compartment designs. For example, they might decide to beef up the roll bars, add more padding or create areas intended to compact without affecting the egg.
- After students/teams finish their redesigns/rebuilds, they measure the mass of their redesigned cars and add it to the individual or class chart.
Test and Analyze
- Students re-measure the ramp length and test their redesigned prototypes. Again, they use stopwatches to measure the time from vehicle release to impact.
- Students add their new results data to the chart. As a class, discuss the overall relationships of mass, momentum and observational data about the egg and crash. If you asked students to graph their data, look at the graphs to visually compare mass and momentum.
- Students write down their revised/final conclusions about what they think the data shows.
- Recap: How does mass affect momentum in a head-on collision? As needed, guide students’ thinking about the relationship between greater mass, greater momentum and resulting damage to the passenger compartment and possible egg injuries. Did the mass, momentum or speed consistently help to predict the outcome of injury to the passenger egg or the vehicle damage? Expect students to see some correlation between mass and the amount of damage done; the greater the mass, the greater the damage.
How is the engineering design process used in real life? As an example, car buyers who are parents might want more safety features than single people, but those features cost more, so engineers design a range of different designs that match the desires of different buyers. All products—including sneakers, airplanes, computers, phones, video games—are the result of engineering design. Engineers follow the same guiding steps and problem solving techniques in order to invent new designs and improve existing designs for products, structures and systems that help to improve our lives. People do not usually think about following the design process steps beyond solving engineering challenges—but that is what most of us regularly do when coming up with solutions! We research to find information and figure out possible solutions, then we move forward with the best solution, testing and improving it as we go.
mass: A measure of how much matter an object contains, or the total number of particles in an object.
momentum: The quantity of mass in motion, a product of an object’s mass multiplied by its velocity (to get a vector quantity) or speed (to get a scalar quantity)..
speed: The magnitude of the rate of change of an object’s position with time. The average speed of an object in an interval of time is the distance travelled by the object divided by the duration of the interval.
Opening Questions: In the introduction/motivation section, recap the EDP steps with the students.
Activity Embedded (Formative) Assessment
Worksheet: Students fill out the Creative Crash Testing Worksheet.
Post-Activity (Summative) Assessment
Worksheet: Students reflect in the Creative Crash Testing Worksheet on ways of improving their designs and what conclusions they can draw from their various designs and tests.
Making Sense Assessment: Have students reflect on the science concepts they explored and/or the science and engineering skills they used by completing the Making Sense Assessment.
- If the wooden base car models are too light to result in much of a crash, add the same number of metal washers to the bottoms of all the cars; this additional mass results in better crashes without changing the relative comparisons.
- Pay attention to the ramp angle in relation to the wheel size and adjust the ramp angle as necessary so the cars don’t bottom out during the crash test runs.
- To ease clean-up after testing: Put eggs into small plastic bags during test runs.
- Have students graph their individual/class data to visually compare mass with momentum.
- Add a materials costs column to the materials tables in the Creative Crash Testing Worksheet so students can figure the cost of materials and compare overall cost efficiency of the vehicles.
- Compare static vs. elastic collisions by having students run cars down opposing ramps into one another.
- Study the change of force and acceleration by pushing the cars with different forces and/or sending cars down a longer ramp.
