Hands-on Activity Robot Sensors and Sound

Quick Look

Grade Level: 5 (4-8)

Time Required: 45 minutes

Expendable Cost/Group: US $1.00

This activity uses some non-expendable (reusable) items such as computers and microphones; see the Materials List for details.

Group Size: 3

Activity Dependency:

Subject Areas: Biology, Life Science, Physics, Science and Technology

NGSS Performance Expectations:

NGSS Three Dimensional Triangle
4-PS4-1
MS-LS1-8
MS-PS4-1

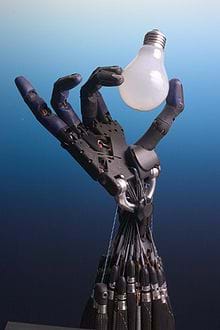

An image shows a dexterous robot hand and wrist, which appears to be delicately screwing in a light bulb.
Robots are capable of performing human tasks because of their use of sensors.
copyright
Copyright © 2007 Richard Greenhill and Hugo Elias, Wikimedia Commons http://commons.wikimedia.org/wiki/File:Shadow_Hand_Bulb_large.jpg

Summary

Students continue to build a rigorous background in human sensors and their engineering equivalents by learning about electronic touch, light, sound and ultrasonic sensors that measure physical quantities somewhat like eyes, ears and skin. Specifically, they learn about microphones as one example of sound sensors, how sounds differ (intensity, pitch) and the components of sound waves (wavelength, period, frequency, amplitude). Using microphones connected to computers running (free) Audacity® software, student teams experiment with machine-generated sounds and their own voices and observe the resulting sound waves on the screen, helping them to understand that sounds are waves. Students take pre/post quizzes, complete a worksheet and watch two short online videos about "seeing" sound. **Note: This activity uses the retired LEGO NXT robot which is no longer available for purchase.
This engineering curriculum aligns to Next Generation Science Standards (NGSS).

Engineering Connection

Biological engineers and neuroscientists perceive the human body as a functioning, controlled system, similar to a robot. Research is showing that mathematical principles similar to those used in robotics are extremely useful or even necessary for a complete understanding of the human body. Engineer-designed sensors are used in a wide variety of applications, everything from nightlights to touchscreens to navigation by sonar and radar By relating the functioning of human senses to human-made equivalent sensors used in robots, students heighten their understanding of both.

Learning Objectives

After this activity, students should be able to:

  • List some human-made sensors that are the electronic equivalents to human sensory organs.
  • Explain the operational principles of electronic sensors.
  • Compare how a sound sensor (such as a microphone) works, compared to human ears.
  • Describe sound in terms of pitch, as well as in the form of a sound wave.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

NGSS Performance Expectation

4-PS4-1. Develop a model of waves to describe patterns in terms of amplitude and wavelength and that waves can cause objects to move. (Grade 4)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Develop a model using an analogy, example, or abstract representation to describe a scientific principle.

Alignment agreement:

Science findings are based on recognizing patterns.

Alignment agreement:

Waves, which are regular patterns of motion, can be made in water by disturbing the surface. When waves move across the surface of deep water, the water goes up and down in place; there is no net motion in the direction of the wave except when the water meets a beach. (Note: This grade band endpoint was moved from K–2.)

Alignment agreement:

Waves of the same type can differ in amplitude (height of the wave) and wavelength (spacing between wave peaks).

Alignment agreement:

Similarities and differences in patterns can be used to sort and classify natural phenomena.

Alignment agreement:

NGSS Performance Expectation

MS-LS1-8. Gather and synthesize information that sensory receptors respond to stimuli by sending messages to the brain for immediate behavior or storage as memories. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Gather, read, and synthesize information from multiple appropriate sources and assess the credibility, accuracy, and possible bias of each publication and methods used, and describe how they are supported or not supported by evidence.

Alignment agreement:

Each sense receptor responds to different inputs (electromagnetic, mechanical, chemical), transmitting them as signals that travel along nerve cells to the brain. The signals are then processed in the brain, resulting in immediate behaviors or memories.

Alignment agreement:

Cause and effect relationships may be used to predict phenomena in natural systems.

Alignment agreement:

NGSS Performance Expectation

MS-PS4-1. Use mathematical representations to describe a simple model for waves that includes how the amplitude of a wave is related to the energy in a wave. (Grades 6 - 8)

Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices Disciplinary Core Ideas Crosscutting Concepts
Use mathematical representations to describe and/or support scientific conclusions and design solutions.

Alignment agreement:

Science knowledge is based upon logical and conceptual connections between evidence and explanations.

Alignment agreement:

A simple wave has a repeating pattern with a specific wavelength, frequency, and amplitude.

Alignment agreement:

Graphs and charts can be used to identify patterns in data.

Alignment agreement:

  • Explain how various relationships can exist between technology and engineering and other content areas. (Grades 3 - 5) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Explain how knowledge gained from other content areas affects the development of technological products and systems. (Grades 6 - 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Describe how new technologies have helped scientists make better observations and measurements for investigations (e.g., telescopes, magnifiers, balances, microscopes, computers, stethoscopes, thermometers) (Grade 4) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Make qualitative observations using the five senses (Grade 5) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Describe how new technologies have helped scientists make better observations and measurements for investigations (e.g., telescopes, electronic balances, electronic microscopes, x-ray technology, computers, ultrasounds, computer probes such as thermometers) (Grade 5) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Identify receivers of visible light energy (e.g., eye, photocell) (Grade 6) More Details

    View aligned curriculum

    Do you agree with this alignment?

  • Explain the interactions between the nervous and muscular systems when an organism responds to a stimulus (Grade 8) More Details

    View aligned curriculum

    Do you agree with this alignment?

Suggest an alignment not listed above

Materials List

Each group needs:

  • Audacity software, for recording and editing sound; free download at http://audacity.sourceforge.net/
  • computer with the Audacity software installed
  • computer microphone, available at electronics stores such as RadioShack® or Best Buy®
  • Sound Pre-Quiz, one per student
  • Sound Worksheet, one per student
  • Sound Post-Quiz, one per student

To share with the entire class:

  • Robot Sensors and Sound Presentation, Microsoft® PowerPoint® file
  • computer and projector to show the presentation
  • (optional) 4 LEGO® robot sensors: light, touch, sound and ultrasonic, as provided in the LEGO MINDSTORMS® Education NXT Base Set (for this activity, the sensors are only needed to show students; photos of the sensors are also pictured in the slide presentation)

Worksheets and Attachments

Visit [www.teachengineering.org/activities/view/umo_sensorswork_lesson01_activity1] to print or download.

Pre-Req Knowledge

  • A basic understanding of the primary five senses of the human body: sight, hearing, smell, taste and touch.
  • Completion of the previous unit in the series: Our Bodies Have Computer and Sensors.

Introduction/Motivation

How many sensors like those found in humans have been duplicated in robots? Can you name some? What sensors can detect sound? On the topic of sounds, what exactly is sound? How is it formed and how do we describe different sounds? We will answer all these questions today!

First let's review some different robot sensors and how they work, and then we'll do on a fun hands-on activity in which you'll use software to record sounds and look at their waveforms. Let's get started!

Procedure

Background

Audacity is free, open source, cross-platform software for recording and editing sounds. Audacity shows sound waves on the screen as a person speaks into a microphone.

Before the Activity

  • Gather materials and make copies of the Sound Pre-Quiz, Sound Worksheet and Sound Post-Quiz, one each per student. The quizzes and worksheet are provided as separate attachments, and also embedded in the presentation so they can be presented to the class as a whole, if desired.
  • Prior to class, review the references listed in the Additional Multimedia Support section on the topics of NXT robots and sensors, brain parts, and Audacity software and tutorial.
  • Use the 28-slide Robot Sensors and Sound Presentation, a PowerPoint file, to teach and conduct the activity. Set up a computer/projector to show the presentation to the class.
  • Arrange for enough computers so you have one for each student group. Make sure each computer has the Audacity software loaded.

With the Students

  1. Ask the class: How many human senses have been duplicated in robots? Write students' ideas on the classroom board and inform them that you will return to this question after a few slides.
  2. Spend about 20 minutes reviewing robot sensors with the class (slides 1-7). Introduce the microphone (slide 5) one commonly used sound sensor, since it will be used in the activity. Summarize and emphasize the similarities between robot sensors and human sensors (slide 7). A robot's light and ultrasonic sensors are like eyes; its sound sensors are like ears; its touch sensors are like skin.
  3. Proceed to conduct the What Is Sound? Activity, starting at slide 8. Expect the activity to take 30 minutes.
  4. Administer the pre-quiz by handing out paper copies (also on slide 9). Answers are on slide 10.
  5. (slides 11-12) Review the science of sound that students learned from the associated lesson. Show them the five-minute "Science of Sound" video (if they haven't already seen it as part of the associated lesson; link provided on slide 11). Then present more detail (slides 13-16) about how sounds differ (intensity, pitch), the components of sound waves (wavelength, period, frequency, amplitude), and foreshadow the experiment. If time permits, show students to two short online videos about "seeing" sound (links on slide 17).
  6. Divide the class into groups of three students each. Have student groups assemble at the computers with microphones. The entire activity is described on slides 18-25.
  7. (slides 18-19) Begin by introducing the hands-on activity.
  8. Then distribute the worksheet (also on slide 20), which provides questions for students to answer as they go through the activity.
  9. Slides 21-25 provide more detailed activity instructions, including screen captures and steps for using the Audacity application. Show students how to start Audacity and open a file to record sounds (slides 21-22).
  10. First, have students try different sounds generated by the software itself (slide 23), and then record their own sounds (slides 24-25).
  11. At activity end, lead a class discussion about the activity. Give students a chance to share their observations, questions and conclusions. Guide the discussion with the questions provided in the Assessment section.
  12. Administer the post-quiz by handing out paper copies (also on slide 26). Answers are on slide 27. Vocabulary are provided on slide 28.

Vocabulary/Definitions

auditory: Related to hearing.

olfactory: Related to smell.

peripheral: Surrounding.

sensor: A device that converts one type of signal to another; for instance, the speedometer in a car collects physical data and calculates and displays the speed the car is moving.

ultrasonic: A sound at a frequency that humans cannot hear, but dogs and bats can.

Assessment

Pre-Activity Assessment

Pre-Quiz: Administer the Sound Pre-Quiz (also on slide 9) to assess students' prior knowledge about sound, pitch and sound waves. Answers are provided on the Sound Pre-Quiz Answer Key (and slide 10).

Activity Embedded Assessment

Worksheet: As students work through the activity, have them answer the questions provided on the Sound Worksheet (also on slide 20). Observe students to make sure they are engaged and completing their worksheets. Collect the worksheets at activity end and review their observations and answers to gauge their depth of comprehension.

Post-Activity Assessment

Concluding Discussion: At activity end, lead a class discussion so students can share their observations, questions and conclusions. Example discussion questions:

  • What did you learn about robot sensors?
  • What types are available? What do they do?
  • How are they similar and different from human sensors?
  • What did you lean about sound sensors?
  • Specifically, how does a sound sensor (such as a microphone) work, compared to human ears.
  • What did you learn about sound waves? (wavelength, period frequency, amplitude)
  • What do we mean by sound intensity and pitch?
  • How would you explain what sound is to someone in your family?

Post-Quiz: At activity end, administer the Sound Post-Quiz (also slide 26). Answers are provided on the Sound Post-Quiz Answer Key (and slide 27). Review students' answers to assess their understanding of the concepts of sound, sounds waves, and pitch that they explored in the activity.

Activity Scaling

  • Adjust the slide presentation by editing and removing some slides for lower grades, and editing and adding additional slides for upper grades.

Additional Multimedia Support

Audacity software: http://audacity.sourceforge.net/download/

Audacity tutorial: http://audacity.sourceforge.net/manual-1.2/tutorials.html

NASA Connect video on the "Science of Sound" explores the basics of sound including how it works and how it travels, as well as how the ear works. (5:04 minutes; video in presentation): https://www.youtube.com/watch?v=_ovMh2A3P5k

NXT robots and sensors: http://mindstorms.lego.com/eng/Overview/default.aspx

Show students the "Acoustic Water Dance" video of water moving due to sound waves from a speaker (4:44 minutes; optional video in presentation): http://www.youtube.com/watch?v=tI6S5CS-6JI

Show students the "Sound Waves" video of sand patterns that form at different pitches (2:10 minutes; optional video in presentation): http://www.youtube.com/watch?v=s9GBf8y0lY0
