Hands-on Activity: Cleaning the Air

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

Smokestacks from a wartime production plant during World War II.
Industrial air pollution
copyright
Copyright © Alfred Palmer. Wikimedia Commons http://commons.wikimedia.org/wiki/File:AlfedPalmersmokestacks.jpg

Summary

Engineers design methods of removing particulate matter from industrial sources to minimize negative effects of air pollution. In this activity, students undertake a similar engineering challenge as they design and build a filter to remove pepper from an air stream without blocking more than 50% of the air.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

One of the biggest challenges engineers face is devising new techniques to prevent industrial air pollution. Engineers are creative in designing modern pollutant recovery methods and industrial technologies that remove particulate matter from industrial sources to minimize negative effects of air pollution. Mechanical and environmental engineers develop new technologies to control the problems old technologies have created. For example, engineers create air filtration systems that are commonly used in homes and businesses.

Pre-Req Knowledge

particulate matter, particulate matter collectors

Learning Objectives

After this activity, students should be able to:

  • Describe several causes and health effects of air pollution.
  • Use the engineering design/test/build process to create a model indoor air filter.
  • Count and calculate the average number of particles collected in one area.
  • Understand how engineers construct air filters to clean air pollution.

More Curriculum Like This

The Air We Breathe

Students learn what causes air pollution and how to investigate the different pollutants that exist, such as toxic gases and particulate matter. They investigate the technologies developed by engineers to reduce air pollution.

Middle School Lesson
What's Air Got to Do with It?

Students use M&M® candies to create pie graphs that express their understanding of the composition of air. Next, they watch and conduct several simple experiments to develop an understanding of the properties of air (it has mass, it takes up space, it can move, it exerts pressure, it can do work). F...

An Introduction to Air Quality Research

Students learn the basics about the structure of the Earth’s atmosphere, the types of pollutants that are present in the atmosphere (primary, secondary, gas-phase compounds, particulate matter), and the importance of air quality research. They are also introduced to some engineering concepts such as...

Introduction to Environmental Challenges in China

Through an overview of some of the environmental challenges facing the growing and evolving country of China today, students learn about the effects of indoor and outdoor air pollution that China is struggling to curb with the help of engineers and scientists.

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Define the criteria and constraints of a design problem with sufficient precision to ensure a successful solution, taking into account relevant scientific principles and potential impacts on people and the natural environment that may limit possible solutions. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Evaluate competing design solutions using a systematic process to determine how well they meet the criteria and constraints of the problem. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Analyze data from tests to determine similarities and differences among several design solutions to identify the best characteristics of each that can be combined into a new solution to better meet the criteria for success. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • People have made tools to provide food, to make clothing, and to protect themselves. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Decisions to develop and use technologies often put environmental and economic concerns in direct competition with one another. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Modeling, testing, evaluating, and modifying are used to transform ideas into practical solutions. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Solve real-world and mathematical problems involving the four operations with rational numbers. (Grade 7) Details... View more aligned curriculum... Do you agree with this alignment?
  • Direct and indirect measurement can be used to describe and make comparisons. (Grade 8) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

Each group should have:

  • 2-3 index cards or construction paper
  • clear packaging tape
  • scissors
  • a variety of filter-making supplies (i.e., pipe cleaners, cotton balls, cloth, tape, tissue paper, etc.)
  • 2-3 copies of the Cleaning the Air Worksheet (one per student)

For the classroom to share:

  • shoebox
  • tape
  • string
  • aluminum foil
  • 4 index cards
  • black pepper, sand or similar small particles
  • large container (such as a trash can or cardboard box)
  • protractor
  • hair dryer

Introduction/Motivation

The impacts of technological systems can be good or bad, desirable or undesirable. Many times it is difficult to predict the outcomes of these systems. For example, could Henry Ford have predicted that ninety years later the technology he helped to create (cars) would be associated with thousands of alcohol related deaths and the cause of global air pollution? Recognizing the undesirable impacts of technology is often hidden by the glare of a technology's benefits.

When the outputs of technological systems are negative, we often rely on new technologies to control the problems created by old technologies. Environmental pollution is a good example of this cycle. Pollutants that have plagued our air, water and ground have found their way into our homes and places of work, creating indoor air pollution — known as "Sick Building" Syndrome. Particles such as dust, soot, asbestos and chemicals — many of which are invisible to the eye — are trapped in these environments and enter the body though the nasal and throat passages. Coughing, itchy eyes, sneezing, allergies, asthma and respiratory ailments (that may even result in death) are the effects of these pollutants.

Mechanical and environmental engineers develop new technologies to control the problems that old technologies have created. For example, engineers have created air filtration systems that are now common appliances found in homes and businesses. Filtration systems are designed to scrub the air clean of harmful particles and chemicals. Using a variety of filtering techniques, these machines circulate the air several times each hour capturing harmful particles and making the air safe to breath. In this activity, we are going to investigate the development of an indoor air filter.

Procedure

Before the Activity

The teacher should construct the testing apparatus as follows:

  1. Cut a hole in the end of a shoebox. The hole should be sized so that the narrow end of a hairdryer fits into it.
  2. Cut out the opposite end of the shoebox so it is completely open.
  3. Tape a piece of string so that it extends horizontally across the top of the cut out end.
  4. Fold a piece of aluminum foil in half and hang it over the string. The deflection of the foil when the hairdryer is on will be used to indicate the amount of air flow. This will be measured with a protractor.
  5. Fold four index cards into an "l" (L) shape. Tape these halfway down the length of the shoebox on the inside to hold the students' filters (see Figure 1).

A schematic drawing of the filter testing apparatus. Shown is a 3-dimensional rectangle with the appropriate holes cut out and folded index cards in place to hold the filter.
Figure 1. The filter testing apparatus.
copyright
Copyright © Image created by Ben Heavner, University of Colorado, Boulder, 2004.

  1. Set up the testing apparatus in a location to which students have easy access. Position the hairdryer through the first hole cut in the shoebox (a ring stand may be useful for holding the hairdryer). Set a large container on its side at other end of apparatus to catch particles. If you are using a long container, such as a trash can, you may need to place the entire apparatus inside the container so that students will be able to capture particles with a pollution collector (see Figure 2).

Pictures of the testing apparatus confined within a large plastic container lying on its side. Shown is the testing apparatus tucked inside the container enough to catch any particles that escape out the back end of the shoebox.
Figure 2. Pictures of the testing apparatus confined within a large plastic container.
copyright
Copyright © Photograph taken by Ben Heavner, University of Colorado, Boulder, 2004.

  1. Make enough copies of the Cleaning the Air Worksheet so that each student has one.

With the Students: Day One

  1. Divide students into groups of two or three depending on how your class works best.
  2. Pass out the Cleaning the Air Worksheets to the students.
  3. (Optional: Pass out Air Pollution Background Information for students to read.)
  4. Review particulate matter with students. Remind them that particulate matter is the "stuff" they collected on their pollution detectors in the I Breathe What? Activity from this unit. It is all the small particles like fly ash, dust and pollen that pollute the air. Challenge students to design an air filter that will filter out the most particulate matter with out blocking the air flow. Tell them that black pepper will be used as the particulate matter, and show them the apparatus you will use for testing.
  5. Write the following challenge on the board: Design an air filter that filters out the most particulate matter without blocking the air flow.
  6. Show students the testing apparatus. Explain to students that there are two slots that will hold a filter and so students can design two filters if they want, but it must fit into the testing apparatus' filter slots.
  7. Ask students if they know what an ammeter is? (Answer: An ammeter is a device that is used to measure air flow.) Show students the ammeter on the testing apparatus — the aluminum foil. Turn the hair dryer on and tell students this is full air flow. Put an index card into the testing apparatus that fully blocks the air flow. This is no air flow.
  8. Explain to the students that their air filters cannot block more then 50% of the air flow. Ask students what the ammeter will look like when 50% of the air is blocked. (Answer: the ammeter — i.e., the foil — will come up to half of the angle it was at when air blew through the box with no filter installed.)
  9. Explain that there are four criteria for the air filters that the students build (These are also indicated on the Air Pollution Background Sheet.)
  • They can only use materials that are provided by the teacher.
  • The filter cannot block more than 50% of the air.
  • The filter must be designed to fit into the testing apparatus filter slots.
  • All students must test the filter at least once.
  1. Review the Cleaning the Air Worksheet with the students. Make sure students understand their challenge and the four filter criteria; ask students to copy the four criteria and challenge down on their worksheets.
  2. Give the students the remainder of the period to work in groups and design their filter. There is no building on day one; they should just list their ideas and draw a picture of their filter design.

With the Students: Days Two and Three

  1. Give the groups one entire period to build their air filters and time to test them at least once. Students will probably have to test them several times to optimize and adjust the filter, so use two class periods to build if necessary. If needed, students are allowed to redesign their filter. Remind them that engineers often redesign something several times before they test and finally use the finished product. See Figure 3 for a sample filter.

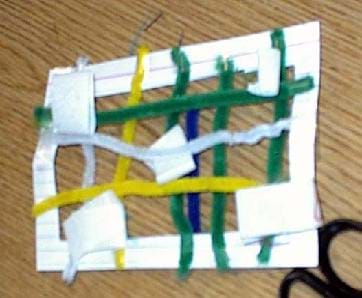

A picture of an example air filter to be used in the filter testing apparatus. Shown is an index card with a big square cut in the middle and pipe cleaners taped in a criss-cross pattern across the hole.
Figure 3. Example filter to be used in the filter testing apparatus.
copyright
Copyright © Photograph taken by Ben Heavner, University of Colorado, Boulder, 2004.

  1. After everyone has optimized their filters, begin final testing. For the final test students should build a pollution collector as in the I Breathe What? Activity from this unit. If the class did not do this activity, explain to students how to make the pollution collector and how to analyze the data. Tell students that they must put a piece of graph paper under the pollution collector and count how many particles are in 4 squares and then take the average (for more information, please refer to the I Breathe What? Activity and accompanying worksheet).
  2. The pollution collector is placed outside of the air pollution apparatus just beyond the ammeter. It is best to tape the collector to the bin that is being used to contain the escaping pepper.
  3. After all groups have tested their filters, compare the results and filter designs. Ask students what was the most challenging part of the design process. Ask them if they would do it differently a second time.

Attachments

Safety Issues

Remind students not to touch the metal screen at the tip of the hairdryer, as it may be very hot.

For best results (and for continued use of the hairdryer), make sure the hair dryer does not over heat.

Troubleshooting Tips

If students are having trouble thinking of what to build, show them an example.

If students are having difficulty building a successful filter, encourage them to redesign and test their filter frequently.

Assessment

Pre-Activity Assessment

Group Discussion: Review air pollution causes and filters that engineers use to clean the air by asking the following questions.

  1. What are the different types of pollution? (Answer: particulate matter, such as fly ash; toxic gases like sulfur oxides (SOx), nitrogen dioxide (NO2) and carbon monoxide (CO); and secondary pollutants, such as ozone (O3)).
  2. What are the major causes of pollution? (Answer: The major man made sources of pollution are automobiles and burning coal; the major natural sources are forest fires.)
  3. What can environmental engineers do to prevent pollution? (Answer: The best way to stop air pollution is by not creating it in the first lace. In addition, environmental engineers can engineer filters such as gravity settlers, cyclones, electrostatic precipitators, scrubbers and fabric or fiber filters.)

Activity Embedded Assessment

Cleaning the Air Worksheet: Have the students record measurements and follow along with the activity on their worksheet. After students have finished their worksheet, have them compare answers with their peers.

Post-Activity Assessment

Sales Pitch!: Have the students pretend to be salespeople who are trying to sell their indoor air filter to a manufacturer or a consumer. Have student teams create a persuasive poster or flyer, as well as a 10-minute sales pitch of their filter design for presentation during the next class. Have them incorporate into their sales pitch particulate matter count, the parts and features of the filter and how it works.

Activity Extensions

Students can build a wet scrubber or an electrostatic precipitator to demonstrate to their class or even other classes/other grades. Instructions can be found at: http://www.reachoutmichigan.org/funexperiments/agesubject/lessons/tnrcc/airpollutionlesson.html

Activity Scaling

For 6th grade, students may have trouble counting the particles. If time does not allow for counting, have students just compare the overall pepper coverage of their collectors. (Which is darkest or has the most pepper?)

For 7th and 8th grade, do the activity as is.

References

Texas Commission on Environmental Quality, Office of Air Quality, Air Quality Planning & Assessment Division, Air Pollution Control. http://www.reachoutmichigan.org/funexperiments/agesubject/lessons/tnrcc/airpollutionlesson.html

Contributors

Ben Heavner; Melissa Straten; Malinda Schaefer Zarske; Janet Yowell
