Summary
This lab demonstrates Ohm's law as students set up simple circuits each composed of a battery, lamp and resistor. Students calculate the current flowing through the circuits they create by solving linear equations. After solving for the current, I, for each set resistance value, students plot the three points on a Cartesian plane and note the line that is formed. They also see the direct correlation between the amount of current flowing through the lamp and its brightness.Engineering Connection
The concept of Ohm's law is the basis for explaining the relationship between resistance, current, and voltage. Electrical engineers use the equation everyday in the analysis of electrical circuits. Engineers have developed programs to do the work of predicting and optimizing the efficiency of the circuits. All electronic devices are composed of circuits, which engineers must design or debug making it essential to understand Ohm's Law. Students are asked to think about this in the postactivity assessment.
Learning Objectives
After this activity, students should be able to:
 State Ohm's law V=IR and explain the relationship between resistance, voltage and electric current.
 Calculate the electric current flowing through a circuit.
 Setup a circuit using the correct circuit components and a breadboard.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
NGSS: Next Generation Science Standards  Science
NGSS Performance Expectation

MSPS23. Ask questions about data to determine the factors that affect the strength of electric and magnetic forces. (Grades 6  8) Do you agree with this alignment?

Click to view other curriculum aligned to this Performance Expectation
This activity focuses on the following Three Dimensional Learning aspects of NGSS:
Science & Engineering Practices  Disciplinary Core Ideas  Crosscutting Concepts
Ask questions that can be investigated within the scope of the classroom, outdoor environment, and museums and other public facilities with available resources and, when appropriate, frame a hypothesis based on observations and scientific principles. Alignment agreement:  Electric and magnetic (electromagnetic) forces can be attractive or repulsive, and their sizes depend on the magnitudes of the charges, currents, or magnetic strengths involved and on the distances between the interacting objects. Alignment agreement:  Cause and effect relationships may be used to predict phenomena in natural or designed systems. Alignment agreement:
Common Core State Standards  Math

Construct and interpret scatter plots for bivariate measurement data to investigate patterns of association between two quantities. Describe patterns such as clustering, outliers, positive or negative association, linear association, and nonlinear association.
(Grade
8)
More Details
Do you agree with this alignment?

Use functions to model relationships between quantities.
(Grade
8)
More Details
Do you agree with this alignment?

Rearrange formulas to highlight a quantity of interest, using the same reasoning as in solving equations.
(Grades
9
12)
More Details
Do you agree with this alignment?

Represent data on two quantitative variables on a scatter plot, and describe how the variables are related.
(Grades
9
12)
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Students will develop an understanding of the relationships among technologies and the connections between technology and other fields of study.
(Grades
K
12)
More Details
Do you agree with this alignment?
State Standards
National Council of Teachers of Mathematics  Math

make conjectures about possible relationships between two characteristics of a sample on the basis of scatterplots of the data and approximate lines of fit
(Grades
6
8)
More Details
Do you agree with this alignment?
Tennessee  Math

Construct and interpret scatter plots for bivariate measurement data to investigate patterns of association between two quantities. Describe patterns such as clustering, outliers, positive or negative association, linear association, and nonlinear association.
(Grade
8)
More Details
Do you agree with this alignment?

Rearrange formulas to highlight a quantity of interest, using the same reasoning as in solving equations.
(Grades
9
12)
More Details
Do you agree with this alignment?

Represent data on two quantitative variables on a scatter plot, and describe how the variables are related.
(Grades
9
12)
More Details
Do you agree with this alignment?
Subscribe
Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!Materials List
Each group needs:
 battery pack or battery holder for 4 AA batteries
 3, 1.5V batteries
 lamp
 wires
 breadboard
 10 Ω, 15 Ω, 22 Ω resistors
Worksheets and Attachments
Visit [www.teachengineering.org/activities/view/van_linear_eqn_act1_less5] to print or download.More Curriculum Like This
Students are introduced to several key concepts of electronic circuits. They learn about some of the physics behind circuits, the key components in a circuit and their pervasiveness in our homes and everyday lives.
Students learn that charge movement through a circuit depends on the resistance and arrangement of the circuit components. In one associated handson activity, students build and investigate the characteristics of series circuits. In another activity, students design and build flashlights.
This final lesson in the unit culminates with the Go Public phase of the legacy cycle. In the associated activities, students use linear models to depict Hooke's law as well as Ohm's law.
Students induce EMF in a coil of wire using magnetic fields. Students review the cross product with respect to magnetic force and introduce magnetic flux, Faraday's law of Induction, Lenz's law, eddy currents, motional EMF and Induced EMF.
Introduction/Motivation
We have been learning all about linear functions, including important characteristics and how to graph them from a variety of forms. Recall our guiding grand challenge question in which we're trying to figure out the best equation that fits the data from the research lab. In this activity, you will learn about realworld applications, such as the research where the challenge question data comes from. We will focus on Ohm's law and investigate the relationship between voltage, resistance and current. We will analyze a simple circuit as if we were electrical engineers. Engineers use their knowledge of Ohm's law to design circuits to go in devices we use every day. By knowing certain defined values within the circuit, we will be able to solve for the current flowing through the circuit using Ohm's law V=IR, or I=V/R. (Students will find that the value of current found through the calculations has a direct correlation with the brightness of the lamp.)
Figure 1 shows a diagram of the basic circuit we will be learning about within this activity. The symbol with the V next to it is the battery, because it creates the voltage. The symbol with the R next to it is a resistor, which is an item that has resistance. The symbol with lamp above it represents the light bulb that will allow us to see if current is flowing through the circuit or not.
Procedure
Before the ActivityGather materials and make copies of the student handout.
Set up the activity following these steps:
 Attach the battery back to the three 1.5 V batteries to create a 4.5 V battery.
 Obtain a lamp and press and hold the wires to the battery pack to the lamp.
 Once the lamp is illuminated, note the brightness level.(This demonstrates the supposed circuit with no resistor with the maximum amount of current flowing through the lamp.)
With the Students
 Divide the class into groups of two or three students at each setup.
 Have students take turns setting up each circuit and make sure that each person solves for the current in each setup and creates a linear graph.
 Obtain a breadboard (the square white plastic device with lots of holes in it). It has a grid labeled on it with letters and numbers. Row X is electrically connected across the entire row. Row Y is also electrically connected. For example, A1, B1, C1, D1, and E1 are electrically connected as are F6, G6, H6, I6, and J6. The breadboard is designed this way in order to make circuit building easier by using fewer wires.
 Connect a black wire to the negative end of the battery pack and put the other end in X1 on the breadboard. Insert one end of the 10Ω resistor in X4 and the other in H4.
 Insert one end of the 15Ω resistor in X7 and the other in H7.
 Place one end of the 22Ω resistor in X9 and one end in H9.
 Once all the circuit elements are in place, connect one end of the lamp wire to the positive end of the battery and insert the other end into J4.
 What happens? Does the lamp glow as brightly as it did the first time you saw it?
 Notice that now, the electrical current is flowing from the battery, through the wires to the lamp, through the 10Ω resistor, through the black wire and back into the negative side of the battery. Refer to Figure 1 for a diagram of the circuit where R= 10Ω.
 Use Ohm's law to figure out how much current is flowing through the resistor. Don't forget units!
 Now, move the wire from the lamp to J7. The circuit that is now formed can be referenced to Figure 1 where R=15Ω.
 Does the lamp burn as brightly?
 How much current flows through the resistor now? Use Ohm's law again and don't forget units!
 Now, move the wire from the lamp to J9. The circuit that is now formed can be referenced to Figure 1 where R=22Ω.
 Does the lamp burn as brightly? What about in comparison to the last trial?
 How much current is flowing through the resistor now? Use Ohm's law again and don't forget units!
 Once you have solved all three circuits for the flow of current through the resistor, use the grid on the handout to plot a point from each circuit. The xcoordinate represents resistance and the ycoordinate represents current. Describe your results. What type of relationship is formed?
Vocabulary/Definitions

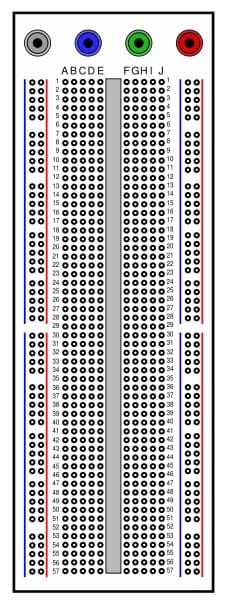

breadboard: A perforated block of plastic that is a reusable device used to build prototypes of electrical circuits. (See Figure 2)
circuit: The complete path of electrical current through wire including any additional components including the generating apparatus, resistor(s), capacitor(s), etc.
current: The time rate flow of an electric charge (electrons) having a magnitude equal to the quantity of charge per unit of time. (units = amperes)
Ohm's law: Defined as the equation, V=IR, where V is voltage in volts, I is current in amperes, and R is resistance in ohms.
resistance: The ratio of the degree to which an object resists electrical current through it.
voltage: The difference in electrical potential between two points in an electrical circuit. Or, the rate at which energy is drawn from a power source which produces a flow of electricity in a circuit.
Assessment
Activity Embedded Assessment
 Have students answer the questions that are placed within the procedure on the separate handout provided.
PostActivity Assessment
 Ask students to think about when they could use a resistor and Ohm's law in real life? One example would be to dim a light bulb. If students use this example, they would be correct, but this would also waste power because the resistor takes energy. For that reason, real dimmers on lights use more energy efficient circuitry. See HowStuffWorks.com for more information on dimmers.
