Quick Look
Grade Level: 8 (79)
Time Required: 45 minutes
Expendable Cost/Group: US $1.00
This activity also requires an assortment of nonexpendable (reusable) lab equipment, some of which may already be available in your lab; estimated $206 per group  or  share one set of equipment with the entire class and have all groups work with the same data; see the Materials List for details.
Group Size: 3
Activity Dependency:
Subject Areas: Algebra
Summary
This lab demonstrates Hooke's law with the use of springs and masses. Students attempt to determine the proportionality constant, or kvalue, for a spring. They do this by calculating the change in length of the spring as different masses are added to it. The concept of a spring's elastic limit is also introduced, and students test to makes sure the spring's elastic limit has not been reached during their lab tests. After compiling their data, they find an average value of the spring's kvalue by measuring the slopes between each of their data points. Then they apply what they've learned about springs to how engineers might use that knowledge in the design of toys that enable kids to jump 23 feet in the air.Engineering Connection
The concept of Hooke's law relates to many interesting applications of mechanical engineering and safety engineering. In this activity, students are prompted to think about a type of toy they've learned about which Hooke's law could relate to. The pogo stick comes to mind because of the spring. Engineers must consider the weight of the user and the spring constant to create the most bounce that is still safe.
Learning Objectives
After this activity, students should be able to:
 Explain the equation of Hooke's law.
 Calculate the slope of a line between two points.
 Describe how engineering concepts apply to Hooke's law.
Educational Standards
Each TeachEngineering lesson or activity is correlated to one or more K12 science,
technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN),
a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics;
within type by subtype, then by grade, etc.
Each TeachEngineering lesson or activity is correlated to one or more K12 science, technology, engineering or math (STEM) educational standards.
All 100,000+ K12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).
In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.
Common Core State Standards  Math

Use the equation of a linear model to solve problems in the context of bivariate measurement data, interpreting the slope and intercept.
(Grade
8)
More Details
Do you agree with this alignment?

Know that straight lines are widely used to model relationships between two quantitative variables. For scatter plots that suggest a linear association, informally fit a straight line, and informally assess the model fit by judging the closeness of the data points to the line.
(Grade
8)
More Details
Do you agree with this alignment?

Construct and interpret scatter plots for bivariate measurement data to investigate patterns of association between two quantities. Describe patterns such as clustering, outliers, positive or negative association, linear association, and nonlinear association.
(Grade
8)
More Details
Do you agree with this alignment?

Use functions to model relationships between quantities.
(Grade
8)
More Details
Do you agree with this alignment?

Interpret parts of an expression, such as terms, factors, and coefficients.
(Grades
9
12)
More Details
Do you agree with this alignment?

Rearrange formulas to highlight a quantity of interest, using the same reasoning as in solving equations.
(Grades
9
12)
More Details
Do you agree with this alignment?

Calculate and interpret the average rate of change of a function (presented symbolically or as a table) over a specified interval. Estimate the rate of change from a graph.
(Grades
9
12)
More Details
Do you agree with this alignment?

Interpret the slope (rate of change) and the intercept (constant term) of a linear model in the context of the data.
(Grades
9
12)
More Details
Do you agree with this alignment?
International Technology and Engineering Educators Association  Technology

Explain how knowledge gained from other content areas affects the development of technological products and systems.
(Grades
6
8)
More Details
Do you agree with this alignment?

Use devices to control technological systems.
(Grades
6
8)
More Details
Do you agree with this alignment?
State Standards
National Council of Teachers of Mathematics  Math

Use mathematical models to represent and understand quantitative relationships
(Grades
PreK
12)
More Details
Do you agree with this alignment?
Subscribe
Get the inside scoop on all things TeachEngineering such as new site features, curriculum updates, video releases, and more by signing up for our newsletter!Materials List
Each group needs:
 large table clamp ($79)
 120 cm rod ($29)
 hooked mass set ($43)
 equal length spring set ($35)
 pendulum clamp ($20)
These materials are available on PASCO's website under the high school physics section within the simple harmonic motion setup. See http://www.pasco.com/physhigh/
Note: If not enough sets of equipment are available for groups of two or three students each, divide the class into a number of groups that matches the number of equipment sets available. If only one set of equipment is available, have students take turns taking measurements and then have everyone compile and calculate the kvalues using the same data.
To share with the entire class:
 rulers, for measuring length of springs
More Curriculum Like This
Students are introduced to Hooke's law as well as stressstrain relationships. Through the lesson's twopart associated activity, students 1) explore Hooke's law by experimentally determining an unknown spring constant, and then 2) apply what they've learned to create a strain graph depicting a tumo...
Students use data acquisition equipment to learn about force and displacement in regard to simple and complex machines. The relationship between the force applied on a material, and its resulting displacement, is a distinct property of the material, which is measured in order to evaluate the materia...
Students investigate potential energy held within springs (elastic potential energy) as part of the Research and Revise step. The lesson includes a dry lab that involves pogo sticks to solidify the concepts of spring potential energy, kinetic energy and gravitational energy, as well as conservation ...
Students explore Hooke's law while working in small groups at their lab benches. They collect displacement data for springs with unknown spring constants, k, by adding various masses of known weight.
PreReq Knowledge
Abilitly to find the slope of a line.
Introduction/Motivation
In this unit we have been learning all about linear functions, including important characteristics and how to graph them from a variety of forms. Recall our guiding grand challenge in which we are trying to figure out the best equation that fits the data from the research lab. In this activity, you will learn about realworld applications, such as the research where the challenge question data comes from.
We can figure out the elastic spring constant of a spring by adding hanging masses to the end of a spring and measuring the change in length of the spring. Then, we will explore the possibilities of engineering applications with mechanical engineers using Hooke's law to build fun and safe toys.
Procedure
Before the Activity
Prepare the activity setup by following these instructions:
 Attach the large table clamp securely to a table.
 Tighten the 120 cm rod into the large table clamp.
 Use the pendulum clamp and attach it to the top of the 120 cm rod.
 Hang the springs from the pendulum clamp in order to measure their changes in length when hanging masses are added to them.
With the Students
 Divide the clss into groups of two or three students each at each setup. Alternatively, adjust group size to match the number of sets of equipment available.
 Have students take one of the three springs and attach it to the pendulum clamp.
 Measure the initial length of the spring when no hanging masses are attached.
 Attach one hanging mass at a time to the end of the spring.
 Measure the new length of the spring.

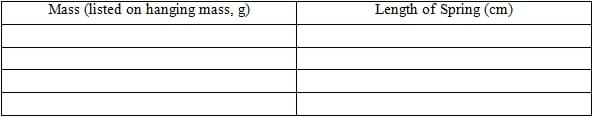

 Record your data in a table similar to the one below.
 For each of the three springs, record about 5 or 6 data points. Start with the smallest masses and work up to the larger masses so the data points have increasing mass.
 After compiling data for the three springs within each group, have students within the groups work individually on calculating the slope between each point and the initial point.
 After they have calculated the slope values for the five or six points have students find the average slope value. This is the average kvalue, proportionality constant, for the spring based off of Hooke's law: y = k x.
 Have the students create a graph of Mass vs. Length of the spring. After graphing, have students add a line of best fit to their plot. How does the slope of this best fit line compare to the previously calculated slope (k)?
 Prompt students to consider the following questions about the exercise they have completed.
 What is k and what does it represent? How do you solve for it?
 Imagine this realworld engineering scenario: You are an invention engineer in a toy factory and want to design a toy that enables kids to jump 23 feet in the air. How does what you have learned in the activity help you solve this problem?
 How does the size of the child affect the design of your toy?
 Conclude with a class discussion to review student results and conclusions.
Assessment
Activity Embedded Assessment
 Have students follow the procedure and show their work of calculating slopes from their data points gathered during the experiment. Require that they provide (for each spring tested) a data table, the slopes of each data point with respect to the initial measurement, and an average kvalue.
PostActivity Assessment
 What is k and what does it represent? How do you solve for it?
 Imagine this realworld engineering scenario: You are an invention engineer in a toy factory and want to design a toy that enables kids to jump 23 feet in the air. How does what you have learned in the activity help you solve this problem?
 How does the size of the child affect the design of your toy?
Note: If students have a hard time, guide them towards thinking about a pogo stick (F = k x), so the greater the force, the greater the change in spring length.
Copyright
© 2013 by Regents of the University of Colorado; original © 2007 Vanderbilt UniversityContributors
