Hands-on Activity: Cleaning Air with Balloons

Contributed by: Integrated Teaching and Learning Program, College of Engineering, University of Colorado Boulder

A photograph of a mass of colorful blown-up plastic balloons.
How can balloons clean air?
copyright
Copyright © Microsoft Corporation, 1983-2001.

Summary

Students observe and discuss a simple balloon model of an electrostatic precipitator to better understand how this pollutant recovery method functions in cleaning industrial air pollution.
This engineering curriculum meets Next Generation Science Standards (NGSS).

Engineering Connection

Environmental and mechanical engineers invent new techniques to prevent industrial air pollution. In an electrostatic precipitator, a static charge attracts pollution particles to electrified plates of metal, similar to how static electricity in clothing attracts bits of lint. This technique works very well on emissions from power plants, steel or paper mills, smelters and cement plants. And, engineers design small versions to keep the air in your home cleaner to breathe.

Learning Objectives

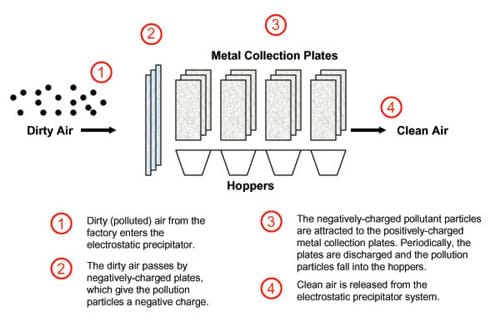

A diagram shows polluted air passing by negatively-charged plates to give pollution particles a negative charge. Next, positively charged metal collection plates collect the particles and discharge them into hoppers. Finally, clean air is released.
Figure 1. How an electrostatic precipitator cleans polluted air.
copyright
Copyright © Natalie Mach, Graduate Fellow, Integrated Teaching and Learning Program, College of Engineering, University of Colorado at Boulder, 2004.

After this activity, students should be able to:

  • Describe and explain how an electrostatic precipitator works as a pollutant recovery method.
  • Describe how engineers create technology to help industry clean up their air pollution.
  • Apply knowledge of percentages to understand technological efficiency.

More Curriculum Like This

Pollution Solutions

To develop an understanding of modern industrial technologies that clean up and prevent air pollution, students build and observe a variety of simple models of engineering pollutant recovery methods: scrubber, electrostatic precipitator, cyclone and baghouse. In an associated literacy activity, stud...

Middle School Lesson
Take Charge!

Students come to understand static electricity by learning about the nature of electric charge, and different methods for charging objects. In a hands-on activity, students induce an electrical charge on various objects, and experiment with electrical repulsion and attraction.

Elementary Lesson
Got Dirty Air?

Students are introduced to the concepts of air pollution and technologies that engineers have developed to reduce air pollution. They develop an understanding of visible air pollutants with an incomplete combustion demonstration, a "smog in a jar" demonstration, construction of simple particulate ma...

Elementary Lesson
The Air We Breathe

Students learn what causes air pollution and how to investigate the different pollutants that exist, such as toxic gases and particulate matter. They investigate the technologies developed by engineers to reduce air pollution.

Middle School Lesson

Educational Standards

Each TeachEngineering lesson or activity is correlated to one or more K-12 science, technology, engineering or math (STEM) educational standards.

All 100,000+ K-12 STEM standards covered in TeachEngineering are collected, maintained and packaged by the Achievement Standards Network (ASN), a project of D2L (www.achievementstandards.org).

In the ASN, standards are hierarchically structured: first by source; e.g., by state; within source by type; e.g., science or mathematics; within type by subtype, then by grade, etc.

  • Obtain and combine information about ways individual communities use science ideas to protect the Earth's resources and environment. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Apply scientific principles to design a method for monitoring and minimizing a human impact on the environment. (Grades 6 - 8) Details... View more aligned curriculum... Do you agree with this alignment?
  • Add, subtract, multiply, and divide decimals to hundredths, using concrete models or drawings and strategies based on place value, properties of operations, and/or the relationship between addition and subtraction; relate the strategy to a written method and explain the reasoning used. (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Waste must be appropriately recycled or disposed of to prevent unnecessary harm to the environment. (Grades 3 - 5) Details... View more aligned curriculum... Do you agree with this alignment?
  • Multiply a whole number of up to four digits by a one-digit whole number, and multiply two two-digit numbers, using strategies based on place value and the properties of operations. (Grade 4) Details... View more aligned curriculum... Do you agree with this alignment?
  • Develop, communicate, and justify a procedure to separate simple mixtures based on physical properties (Grade 5) Details... View more aligned curriculum... Do you agree with this alignment?
Suggest an alignment not listed above

Materials List

For the student activity, each student needs:

  • ½ teaspoon ground black pepper (or small bits of paper)
  • 1 balloon
  • 1 sheet of white paper

For the class demonstration:

  • Ground black pepper
  • 1 piece of plastic (PVC) tubing, 3-5 ft. long, 2.5 in. diameter
  • 1 plastic shopping bag
  • 1 sheet of white paper

Introduction/Motivation

Industry is a large contributor to air pollution. Environmental and mechanical engineers create new techniques to prevent industrial air pollution. The type of technology we are going to examine today is the electrostatic precipitator. An electrostatic precipitator uses static charges to clean pollutants out of the air. Can you give an example of static electricity? Have you ever had a sock stick to your shirt or pants when it came out of the dryer?

In an electrostatic precipitator, a static charge makes the pollution particles stick to electrified plates of metal. Refer to Figure 1 or the attached How an Electrostatic Precipitator Cleans Polluted Air Diagram. This is similar to how static electricity in clothing attracts small bits of dust and lint. Then, the collected dirt is knocked loose, collected and removed. Electrostatic precipitators are 98-99% efficient. They are often used, instead of other technologies, in situations in which the particles are suspended in very hot gases, such as in emissions from power plants, steel or paper mills, smelters and cement plants.

Can you picture how this works? Today, we are going to model electrostatic precipitator technology in class.

Procedure

Before the Activity

Student Activity

  1. Ask the students: What is static electricity? Explain and give an example (e.g., clothes sticking together in the dryer). Ask students to brainstorm ways static electricity can be used to clean air pollution.
  2. Give each student a balloon and some black pepper on a sheet of paper.
  3. Ask the students to blow up their balloons and rub them on their hair or a piece of cloth.
  4. Hold the balloon over the pepper on the paper. What happens to the pepper? See Figure 2.

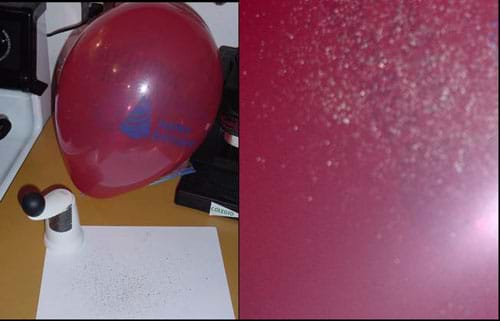

Two photographs. One shows an inflated balloon and black pepper flakes on a sheet of white paper. The other shows pepper specs on the surface of a red balloon.
Figure 2. Materials required for the balloon model electrostatic precipitator. Close-up of pepper grains on the balloon surface.
copyright
Copyright © Sharon Perez, Graduate Fellow, Integrated Teaching and Learning Program, College of Engineering, University of Colorado at Boulder, 2003.

Class Demonstration

  1. Ask the students to record their observations of the class demonstration. Instruct them to record anything that seems important.
  2. Pull the plastic grocery bag through the PVC tube so that the inside edge of it becomes charged with static electricity.
  3. Gently pour some pepper through the tube while holding it over a piece of white paper. Some pepper should stick to the inside of the tube (in the same way that it was attracted to the balloon).
  4. Discuss student observations. Explain that electrostatic precipitators capture small particles (called particulate matter) from the polluted air before the air is released into the atmosphere. Describe the purposes for which we use an electrostatic precipitator.
  5. In conclusion, ask the students the following questions and discuss as a class:
  • Does the electrostatic precipitator remove all of the particulates? (Answer: No, not all of them. Electrostatic precipitators are about 98% efficient.)
  • How does this compare to the efficiency of a wet scrubber? Which one is better? (Answer: A wet scrubber is 94% efficient, so precipitators are more efficient).
  • If the precipitators are more efficient, why would you ever want to use a wet scrubber? (Answer: Wet scrubbers work better on gases.)

Attachments

Safety Issues

  • Keep the pepper away from your eyes!

Troubleshooting Tips

A 2.5 in. diameter PVC pipe is wide enough for students to see the pepper inside the tube.

While the pepper usually only sticks to the top end of the tube, it still demonstrates the concept effectively.

Assessment

Pre-Activity Assessment

Discussion and Brainstorming: As a class, have the students engage in open discussion. Remind students that in brainstorming, no idea or suggestion is "silly." All ideas should be respectfully heard. Take an uncritical position, encourage wild ideas and discourage criticism of ideas. Have them raise their hands to respond. Write their ideas on the board. Ask the students:

  • What is static electricity? (Explain and give an example, e.g., clothes sticking together in the dryer.)
  • How might static electricity be used to clean air pollution? (This will be shown in the student activity and class demonstration.)

Activity Embedded Assessment

Observations: Ask students to pay close attention and record their observations of the class demonstration, explaining to them that this is what real scientists and engineers do. Instruct them to record anything that seems important.

Post-Activity Assessment

Observations: Discuss student observations.

Drawing/Journaling: Depending on the students' age, have them draw a picture or write in their own words a description of how an electrostatic precipitator works to clean polluted air. Ask for volunteers to share their descriptions with the class.

Activity Extensions

Find local examples of electrostatic precipitators and arrange a field trip. What pollutants does their electrostatic precipitator remove? What do they do with the particulates collected?

Much smaller than industrial electrostatic precipitators, electrostatic air cleaners designed for the home use an electrostatic force to move air molecules and trap small airborne particles (.05 – 30 microns in size, such as pet dander or other allergens) as they circulate past an array of electrically-charged stainless steel blades. Have students research air cleaners, air purifiers, copy machines and printers that use similar technology to the industrial electrostatic precipitators.

Activity Scaling

  • Although this activity is appropriate for all age levels, younger students may need assistance blowing up balloons.
  • For upper grades, add a math component. Give students a number of particulates, and have them calculate how many are cleaned from the air using electrostatic precipitators with 98% efficiency. For example, if 100,000 particulates went through this electrostatic precipitator, about 100,000 x .98 = 98,000 would be removed, and 2,000 would remain.

References

Markle, Sandra. The Kids' Earth Handbook. Atheneum, NY: John Wiley & Sons, Inc, 1991.
